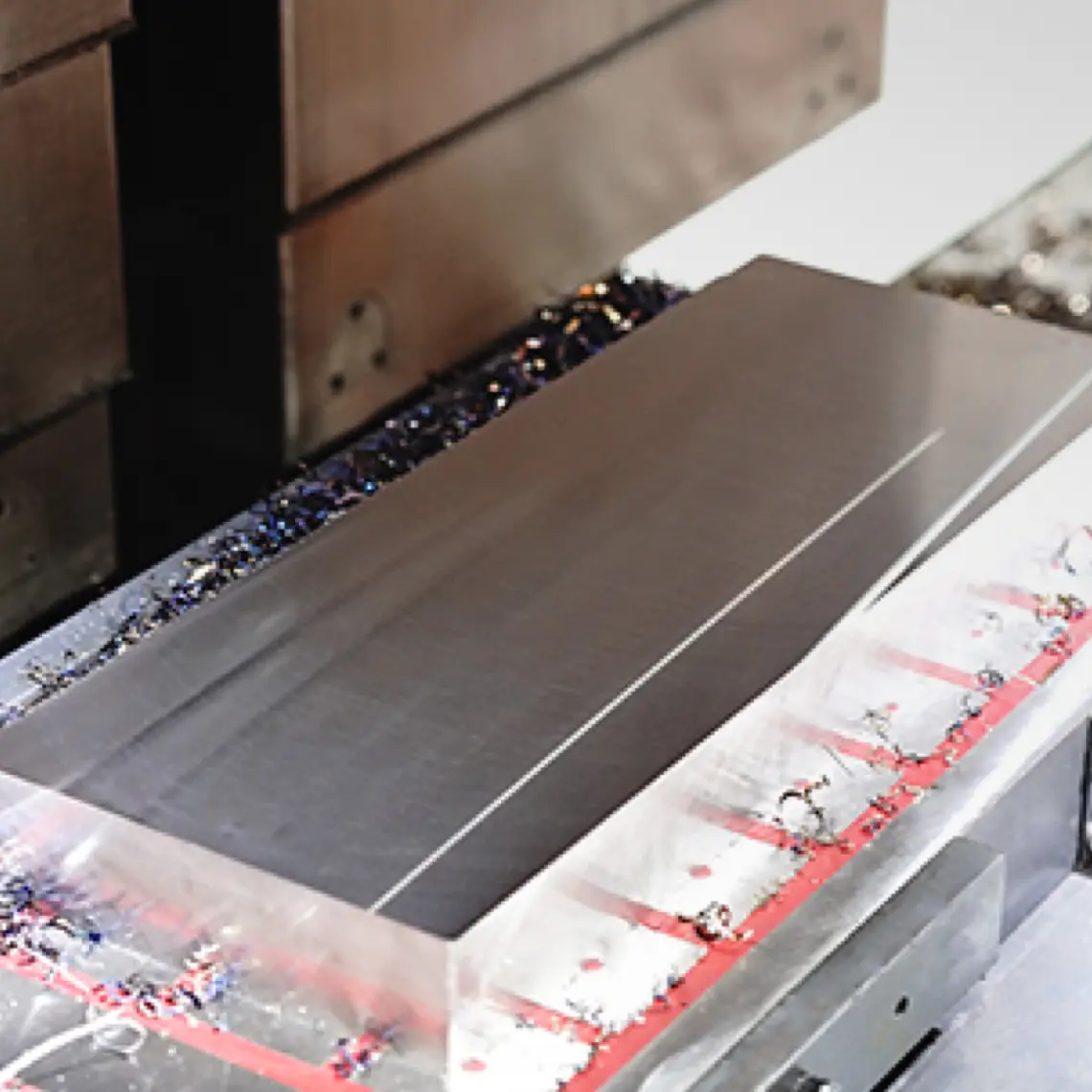

ASIATOOLS' CNC Vertical Milling Machine automates positioning, measurement, and processing. It requires only one-time data setting and loading, greatly reduces manual tool setting and operation time, and enhances efficiency while ensuring excellent surface flatness.

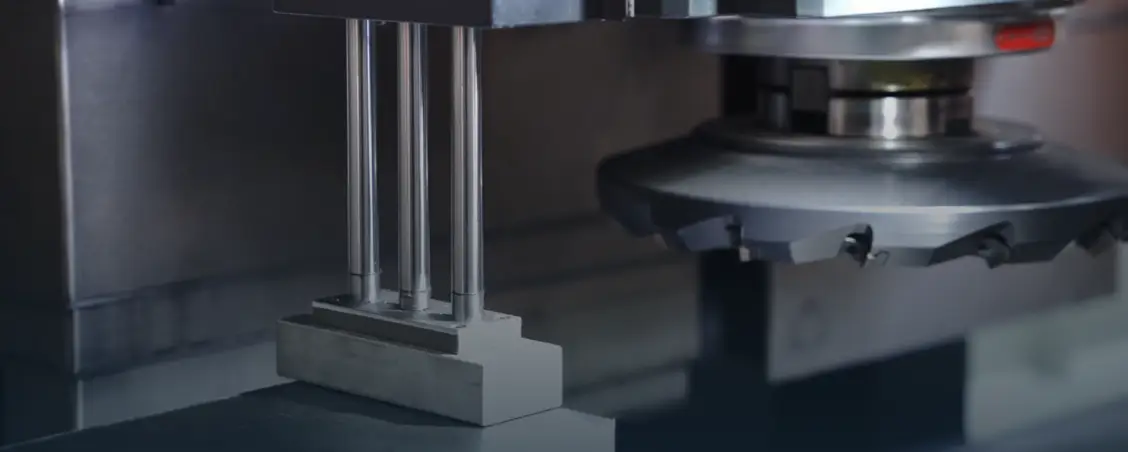

Automatic positioning, measuring, and machining are completed after one-time data setting and loading, eliminating repeated manual alignment and tool setting.

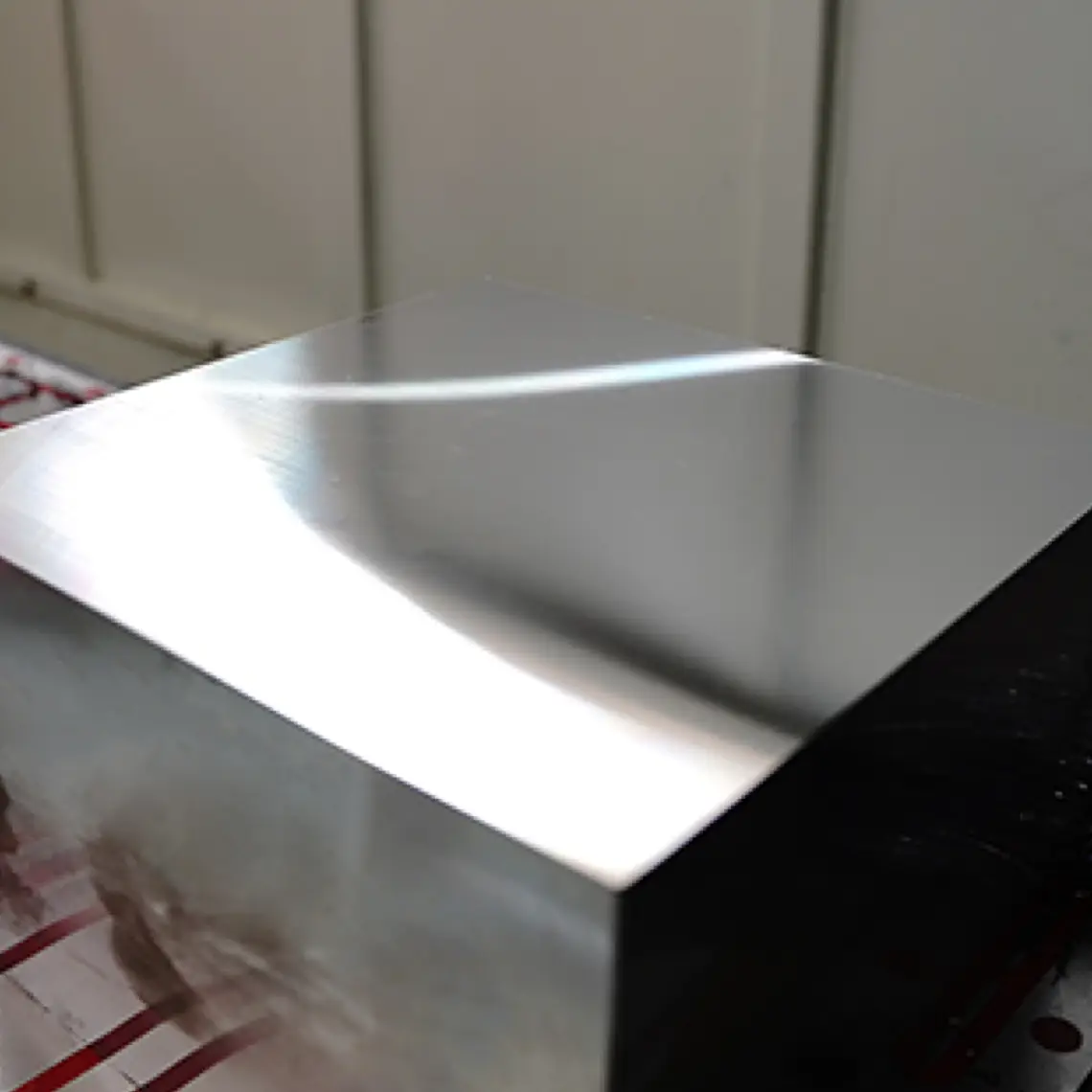

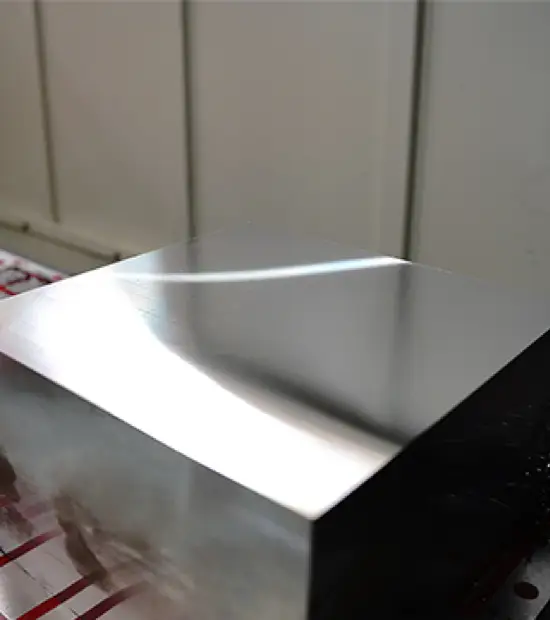

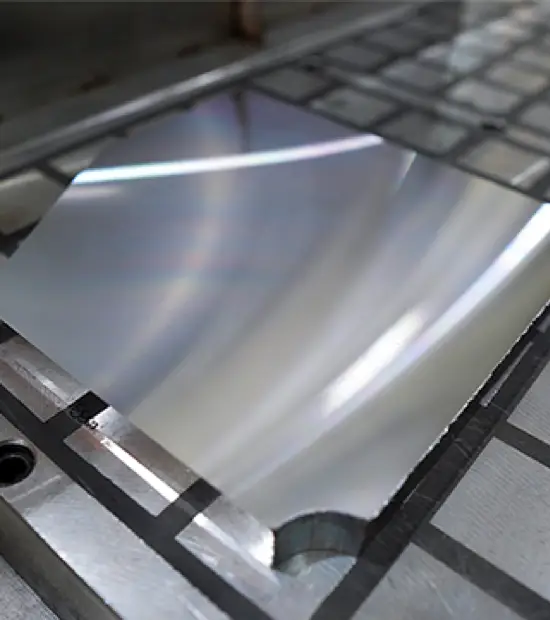

Delivers flatness ≤ 0.015 / 300 mm with surface roughness Ra ≤ 0.8, ensuring stable and repeatable flatness on every finished workpiece.

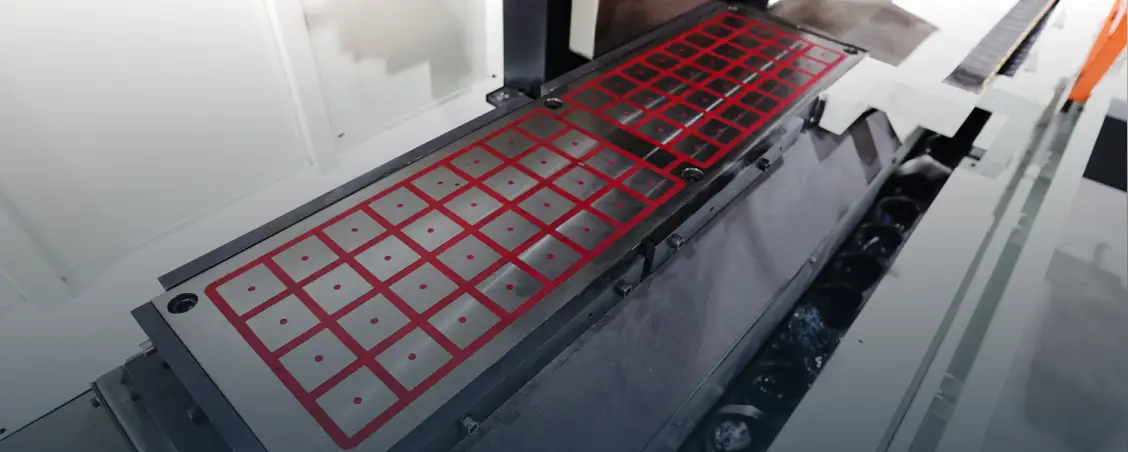

Provides strong and stable clamping without continuous power consumption, ensuring:

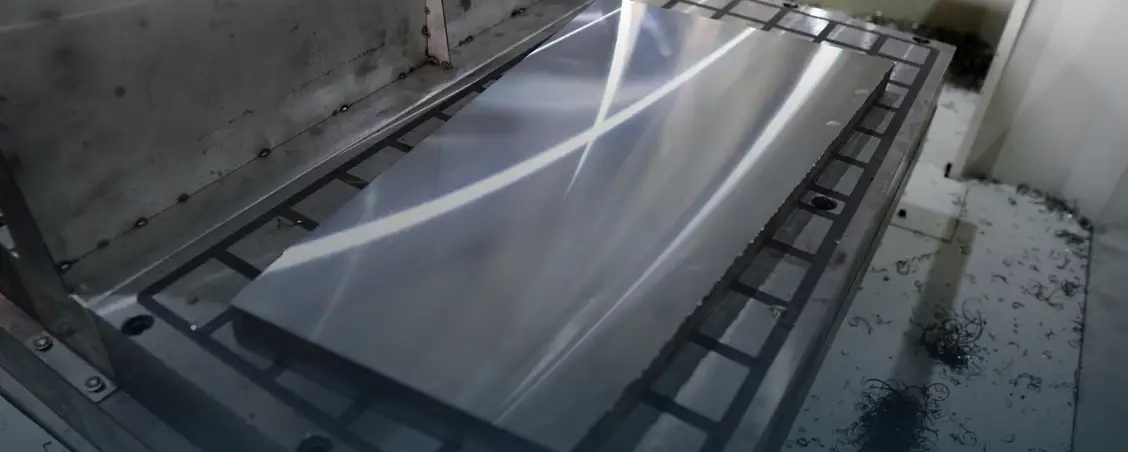

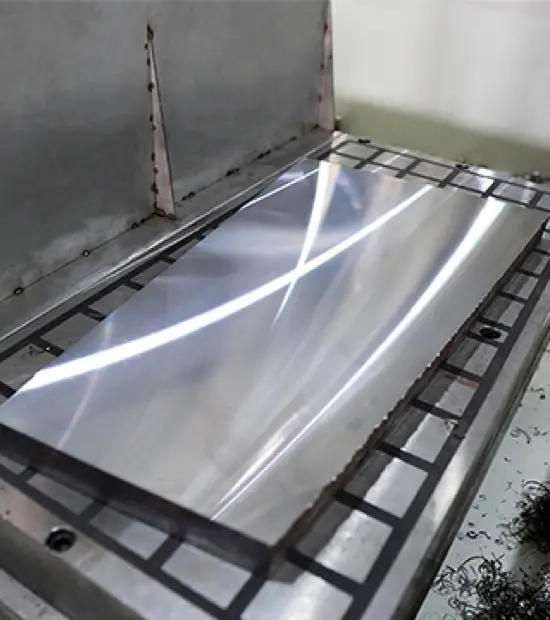

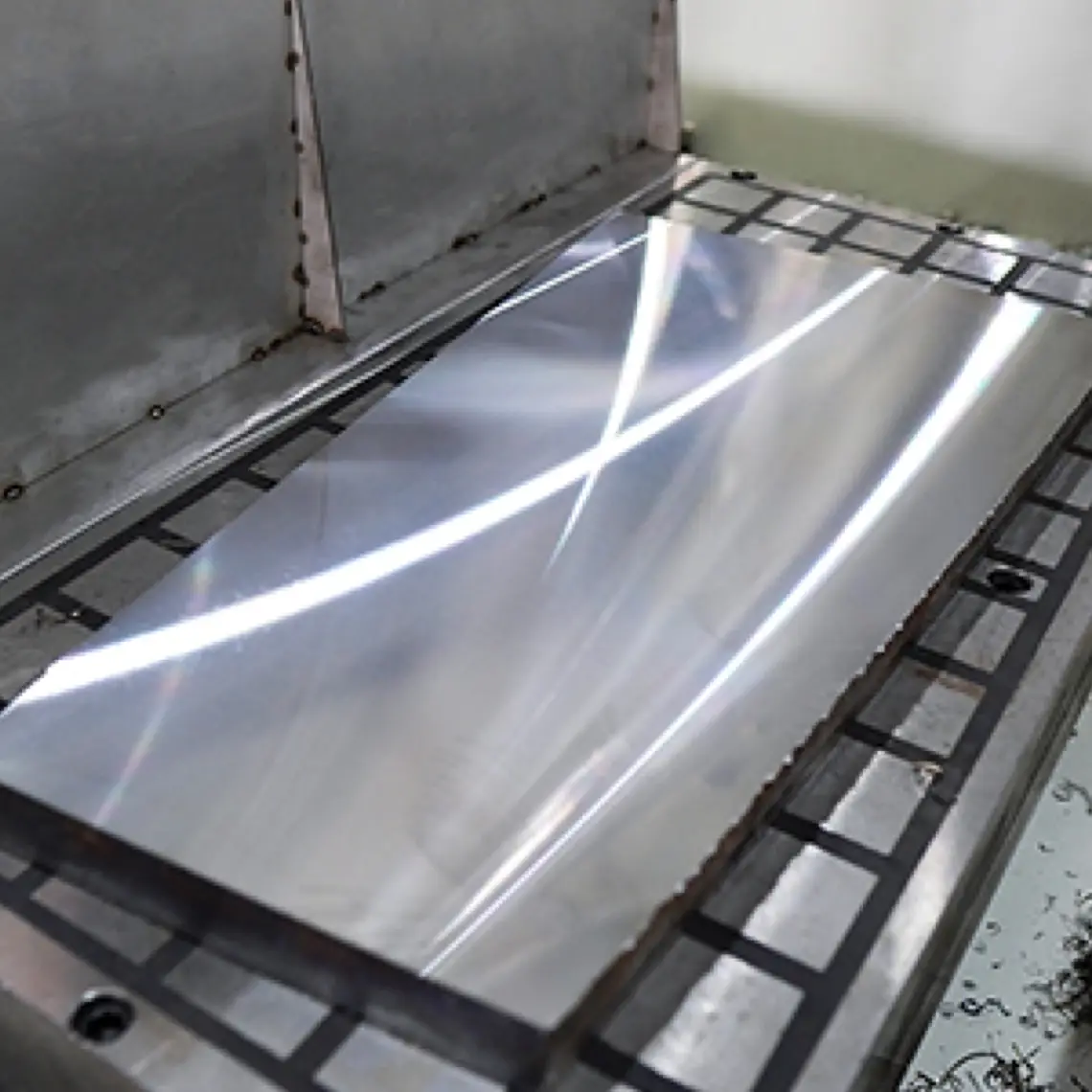

Stable machine structure and controlled milling parameters deliver uniform surface quality, reducing secondary finishing requirements.

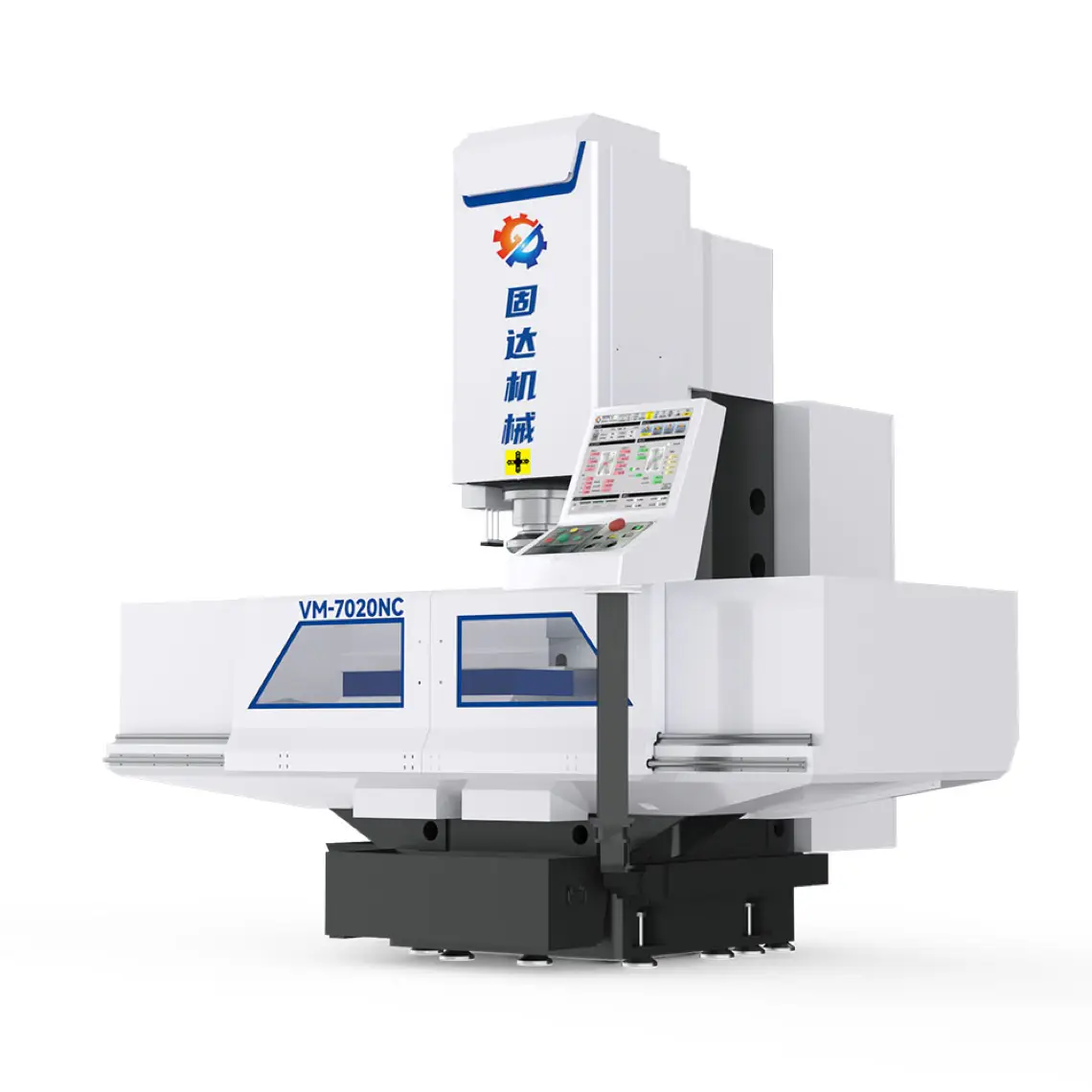

| Model | VM-7020NC |
|---|---|
| Machining capacity | 700*195mm |
| Max.machining height | 200mm |
| Worktable size | 195*700mm |
| Max.load capacity | 350Kg |
| Spindle speed | 50-500rpm |
| Spindle motor power | 11kW |
| Cutter diameter | φ200mm |
| X/Z axis rapid speed | 5/5m/min |
| X/Z rapid feed | 2.5/2.5m/min |
| Machine size | 2700*2400*2250mm |
| Machine weight | About 3000Kg |
Our machine portfolio offers the perfect fit for your work - from small parts to large-scale workpieces, ensuring you have the right capabilities for any project.
| Model | Max. grinding capacity | Max. grinding height | Worktable size | |
|---|---|---|---|---|
| VM-7020NC | 700*195mm | 200mm | 195*700mm | |
| VM-1060NC | 1000*600mm | 300mm | 1000*600mm | |
| VM-1340NC | 1300*390*400mm | 1300*390mm | 1300*390mm | |
| VM-1550NC | 1500*490*500mm | 1500*490mm | 1500*490mm | |
| VM-5025NC | 245*500mm | 250mm | 245*500mm | |
| VM-8040NC | 390*800mm | 350mm | 390*800mm | |
| VM-8040NCAR | 400*800mm | 300mm | 400*800mm | |
| VM-12040NCAR | 400*1200mm | 300mm | 400*1200mm |
Our partnership with customers continues long after the purchase. We provide comprehensive after-sales services to help you install, operate, and maintain your equipment with confidence.
