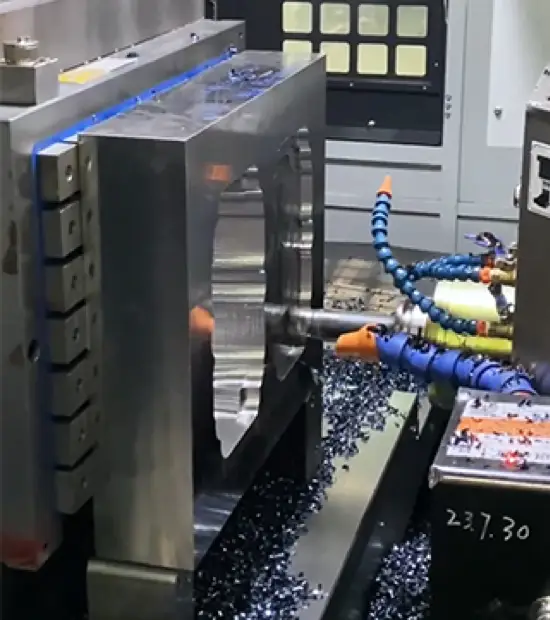

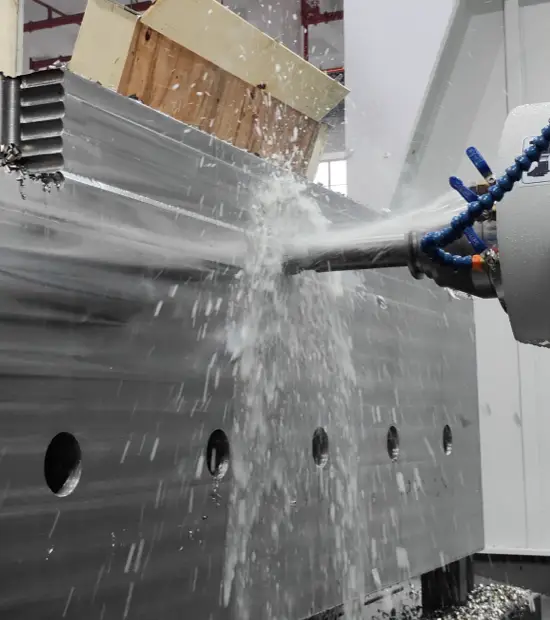

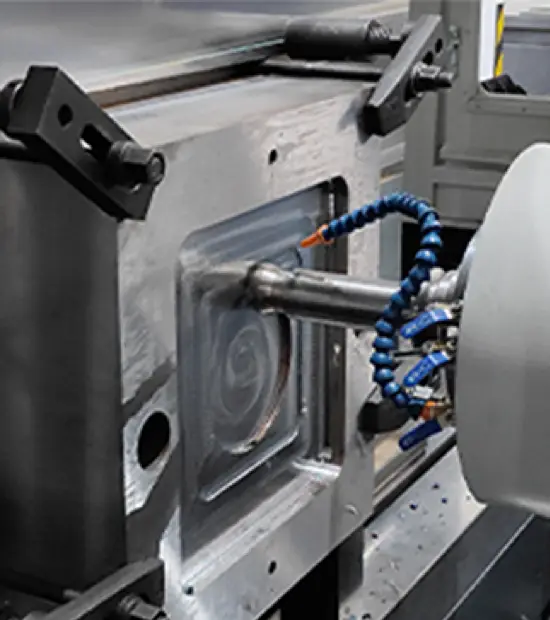

ASIATOOLS' Heavy-duty Horizontal Machining Center is strengthened for heavy-cutting, high-load, and roughing applications. Inverted T-bed and vertical spindle head maintain rigidity during column movement.

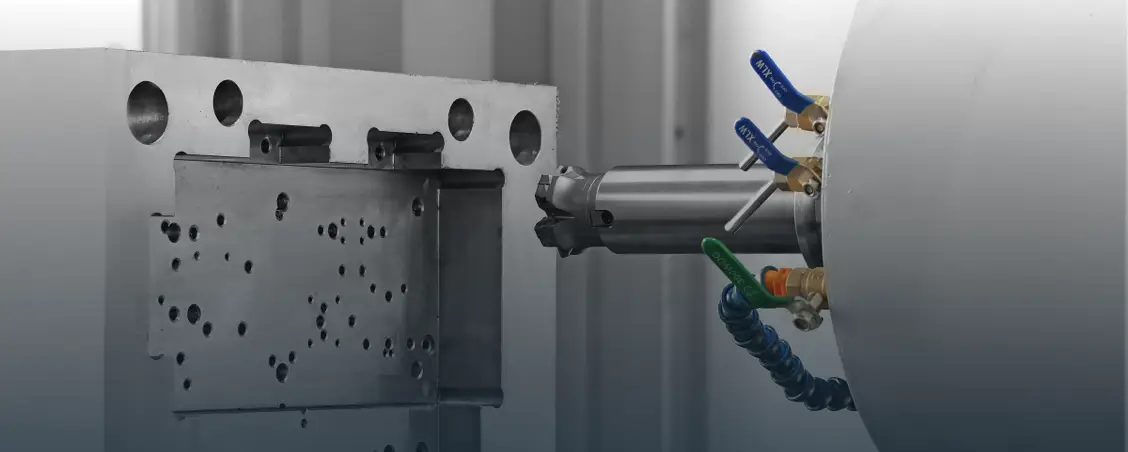

The reinforced machine structure is engineered specifically for heavy-cutting, roughing, and high-load applications, ensuring stable machining even under demanding conditions.

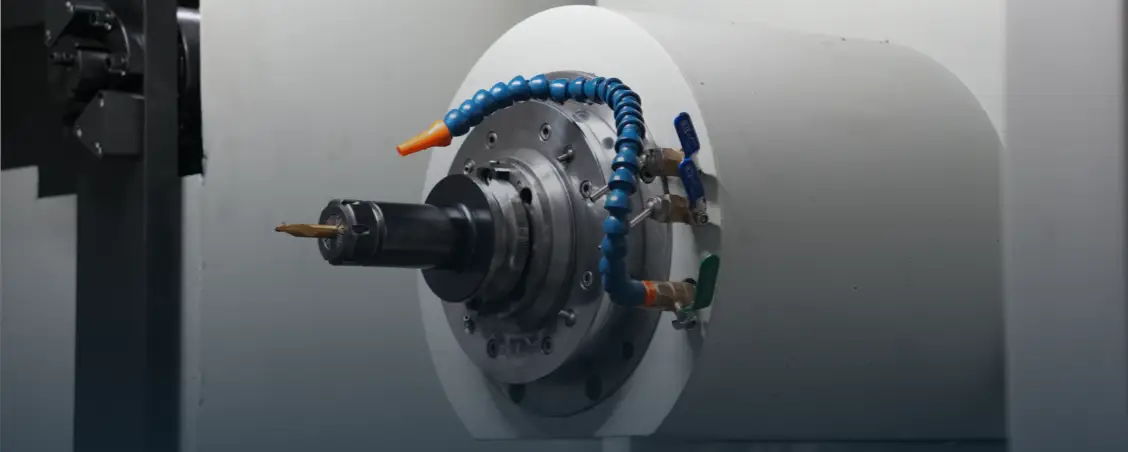

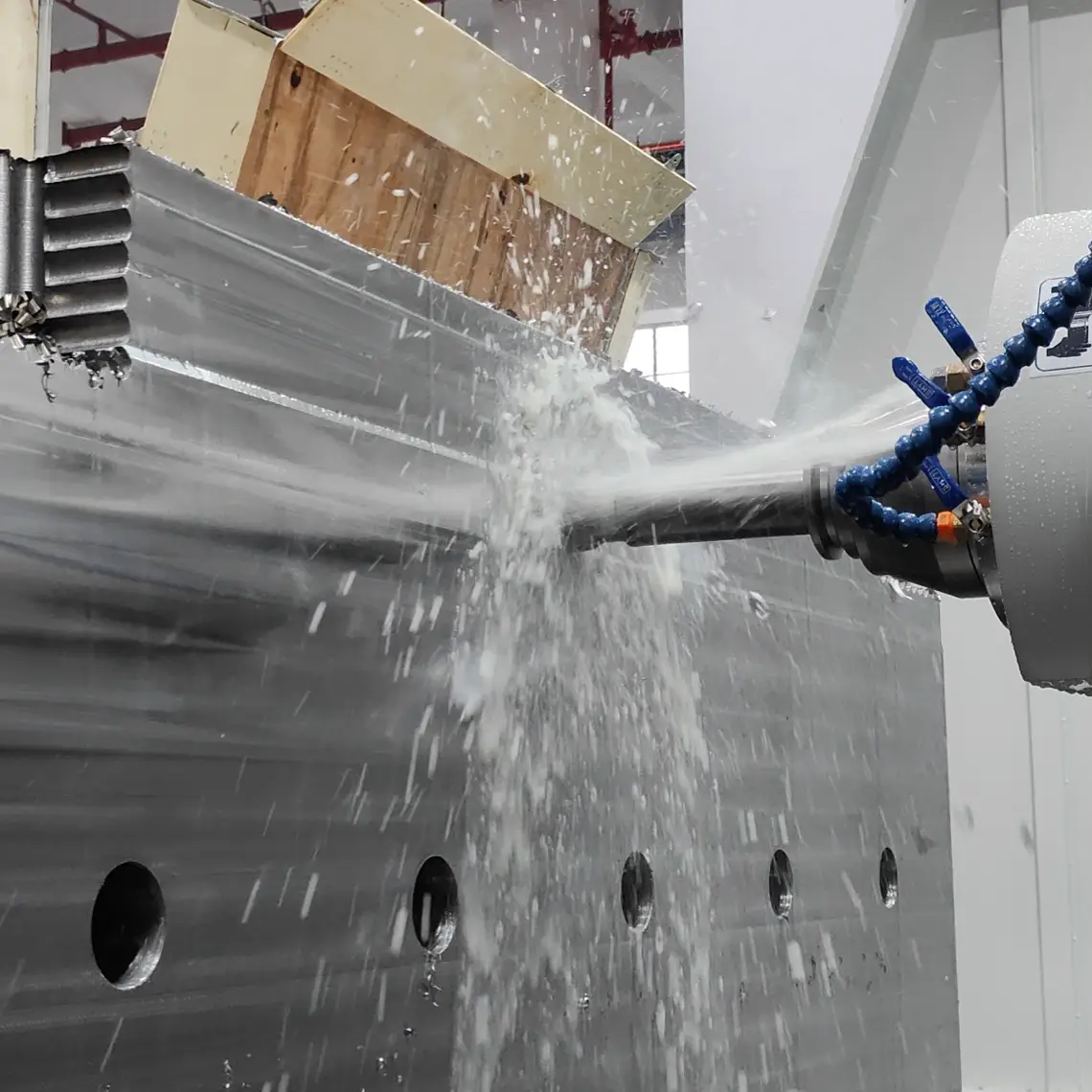

Horizontal spindle orientation allows chips to fall away naturally, improving:

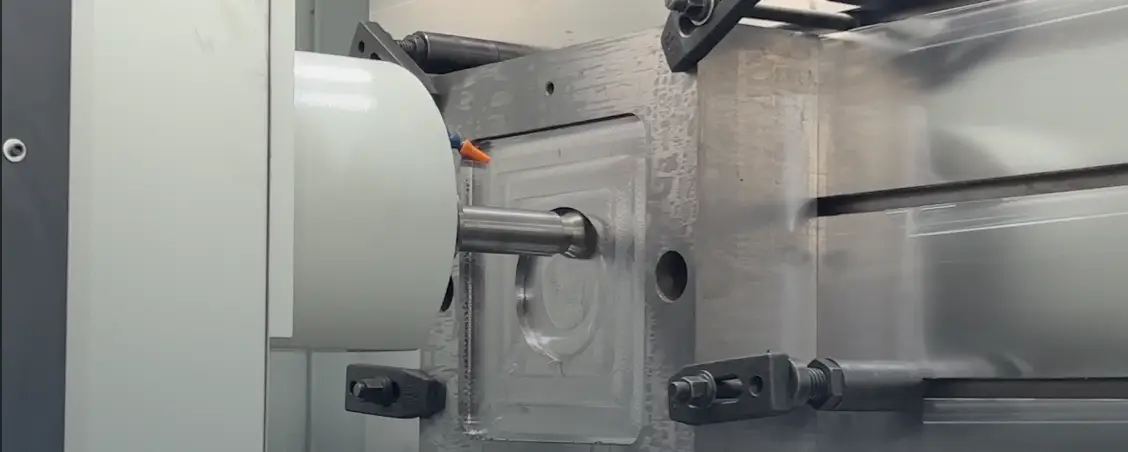

Supports drilling, milling, and tapping in one cycle, reducing setup changes and improving overall machining efficiency.

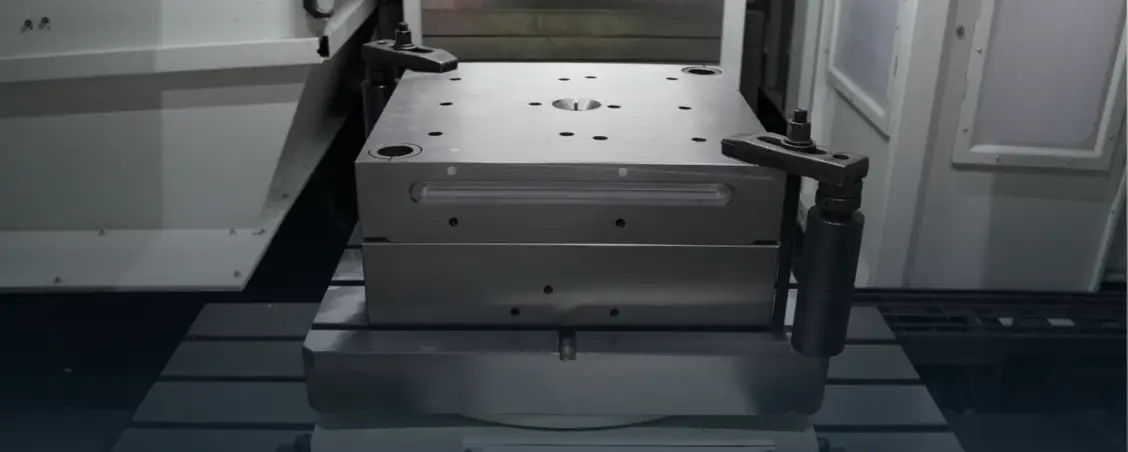

The integrated rotary table enables four-sided machining without re-clamping, ensuring:

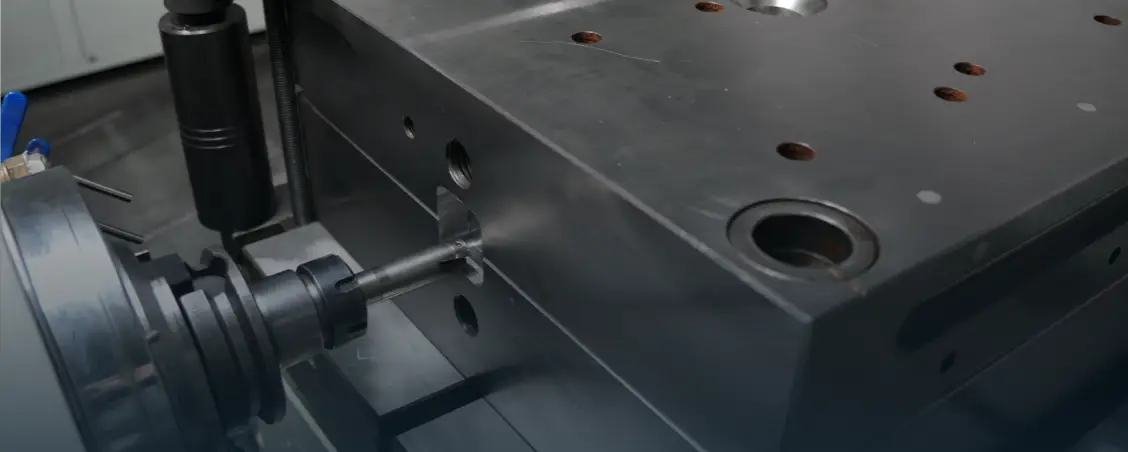

Optimized for roughing and semi-finishing, providing a strong foundation for subsequent finishing processes while maximizing material removal efficiency.

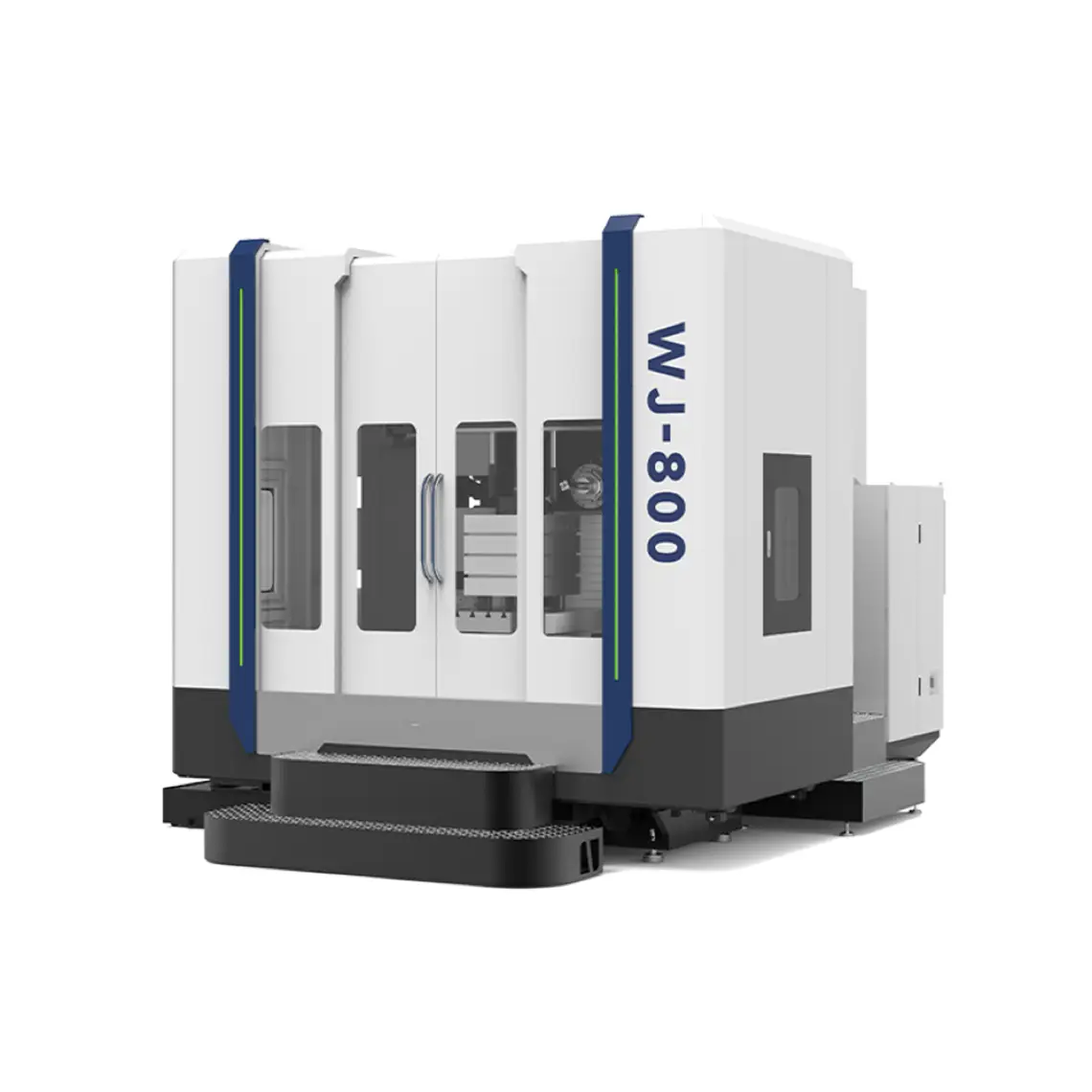

| Model | WJ-800 |
|---|---|
| Max. job swing-diameter*height | Φ1130*700(H)mm |
| Table size | 800*800mm |
| Max.table load | 2500KG |
| Spindle speed | 5200rpm |
| Spindle motor | 15/18.5KW |
| Distance between spindle center to table surface | 0-700mm |
| Spindle taper/type | BT50-220mm |
| Distance between spindle nose to table center | 80-880mm |
| X/Y/Z travel | 1130/700/800mm |
| X/Y/Z Rapid feed rate | 20000/20000/20000mm/min |
| Through-spindle coolant Pressure | 50kgf |
| Through-spindle air blowing pressure | 5-7kgf |
| Workpiece Clamping Cylinder | 3 Cylinders |
| Type of Tool Shank/capacity | BT50-32T |
| Max. tool weight | 15KG |
| Tool specification | Max. tool dia.: 150mm Max. tool length: 350mm |
| Positioning | 0.02/1000mm |
| Repeatability | 0.015/1000mm |
| Lubricating oil tank | 4L |
| Power supply | AC380V/35KVA |
| Machine weight | About 20T |
| Floor space | 4000*6000mm |
Our machine portfolio offers the perfect fit for your work - from small parts to large-scale workpieces, ensuring you have the right capabilities for any project.
| Model | X/Y/Z travel | Machine weight | Worktable size | |
|---|---|---|---|---|
| WJ-1065 | 1000*650*400mm | About 24T | 600*1400mm | |
| WJ-1590 | 1500*900*600mm | About 24T | 800*1600mm | |
| WJ-1290 | 1200*900*700mm | About 24T | 700*1500mm | |
| WJ-1390 | 1300*900/1500*700/850mm | About 32T | 1000*1360mm | |

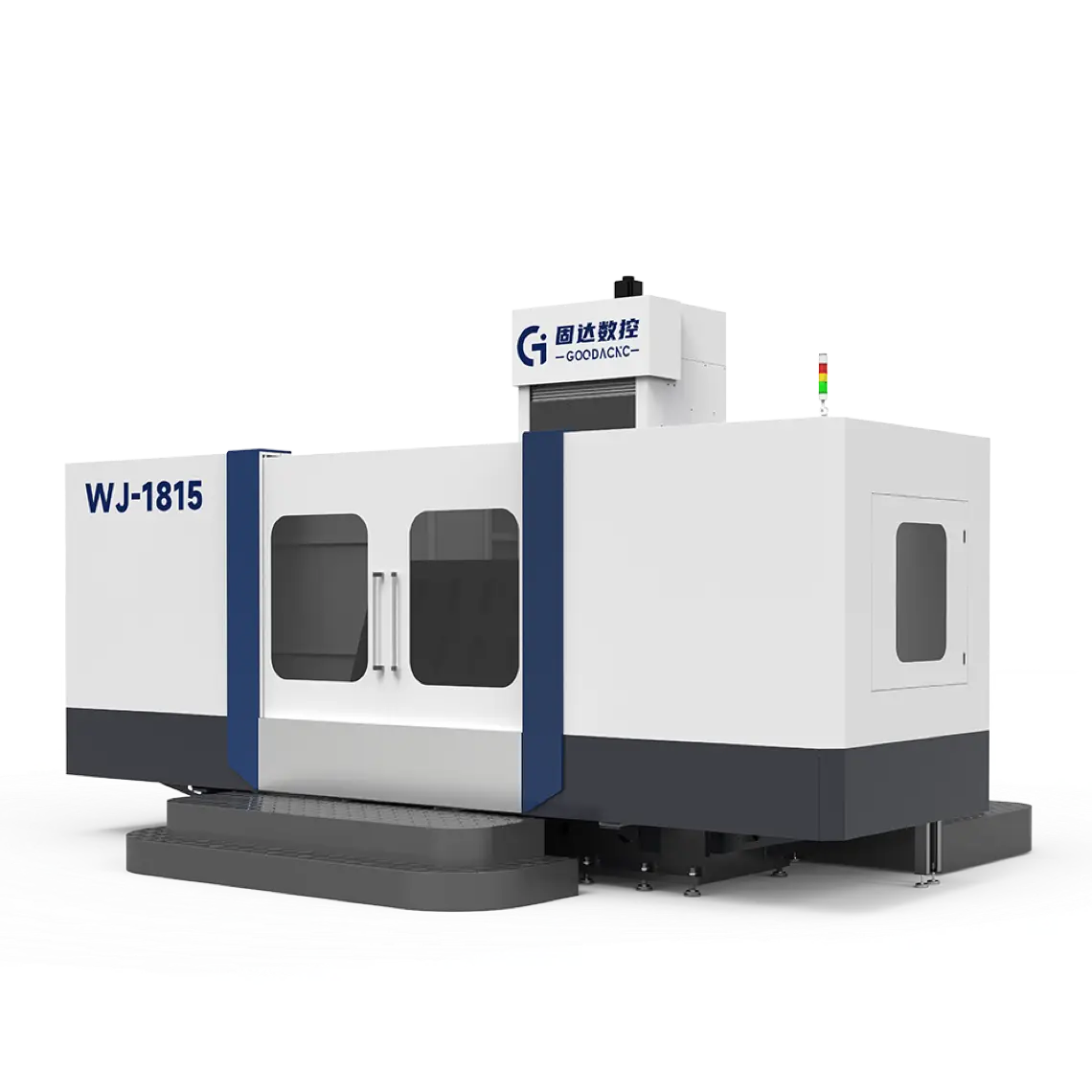

| WJ-1815 | 1800/2000*1500*850mm | About 32T | 1300*2000mm | |
| WJ-2515 | 2500*1500*850mm | About 32T | 1300*2500mm | |
| WJ-3015 | 3000*1500*850mm | About 24T | 3200*1500mm | |
| WJ-3025 | 3000*2500*850mm | About 24T | 3200*2000mm |
| Item | Horizontal Machining Center (HMC) | Vertical Machining Center (VMC) |
|---|---|---|
| Spindle Orientation | Horizontal | ✔ Vertical |
| Typical Application | Heavy cutting, mold bases, deep cavities | ✔ General milling, light to medium cutting |
| Machining Faces | 4-sided machining in one setup | ✔ Mainly single-face machining |
| Chip Evacuation | Excellent (chips fall away naturally) | ✔ Chips tend to accumulate |
| Machining Stability | Very high under heavy load | ✔ Medium to high |
Our partnership with customers continues long after the purchase. We provide comprehensive after-sales services to help you install, operate, and maintain your equipment with confidence.
