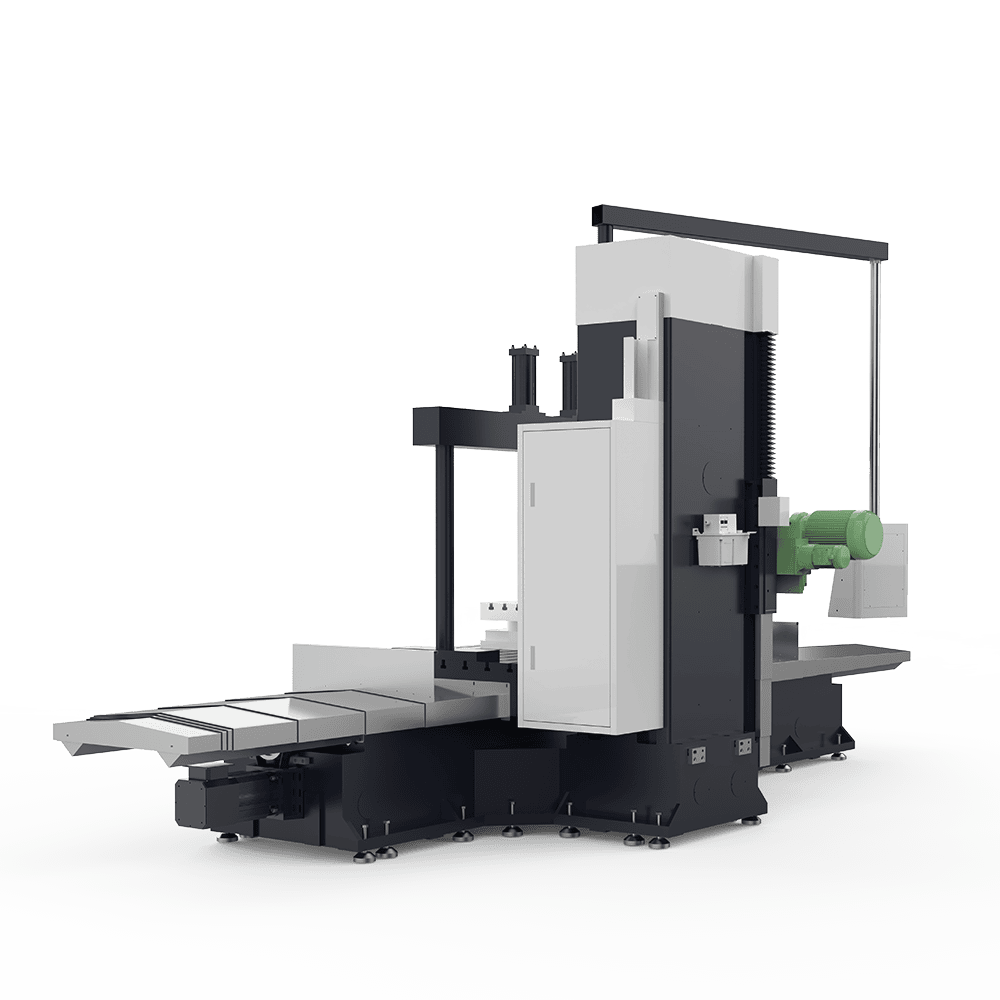

HM-4000

Horizontal Milling Machine

Single-column lifting precision milling machine, with a large processing range of end milling machines. Suitable for end cutting of large mold bases, large steel, and other metal materials cutting, widely used in machinery manufacturing. It is especially suitable for milling the end face of the mold industry, mold embryo, mold material, and plastic mold frame. It can be used to mill both ends of super-long workpieces.

Machining capacity 2600*1400*1000mm
Worktable size 3000*1200mm
Max.load capacity 8000Kg
Rotary table size 1000*1000mm

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

Horizontal Milling Machine

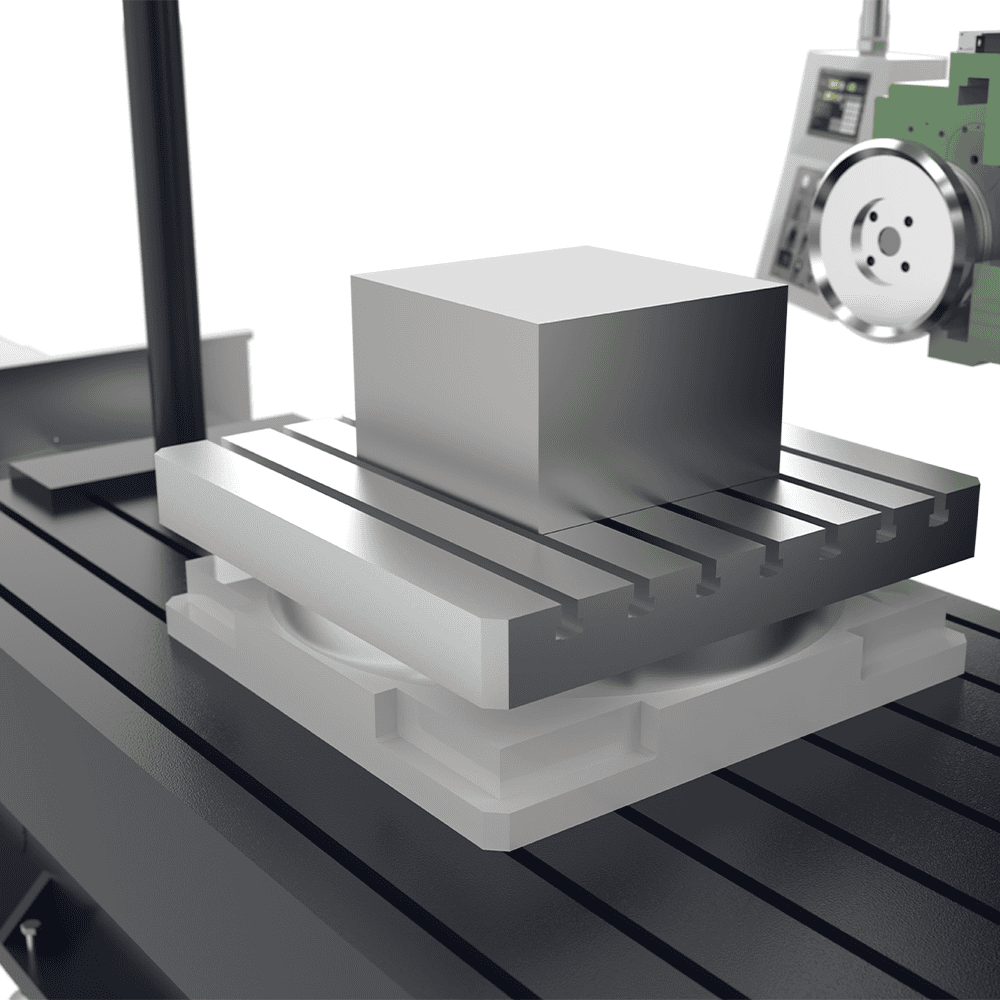

Powerful cutting

The turntable can mill the four end facesof the workpiece. The milling force is strong, which canmeet the machining requirements of parts.

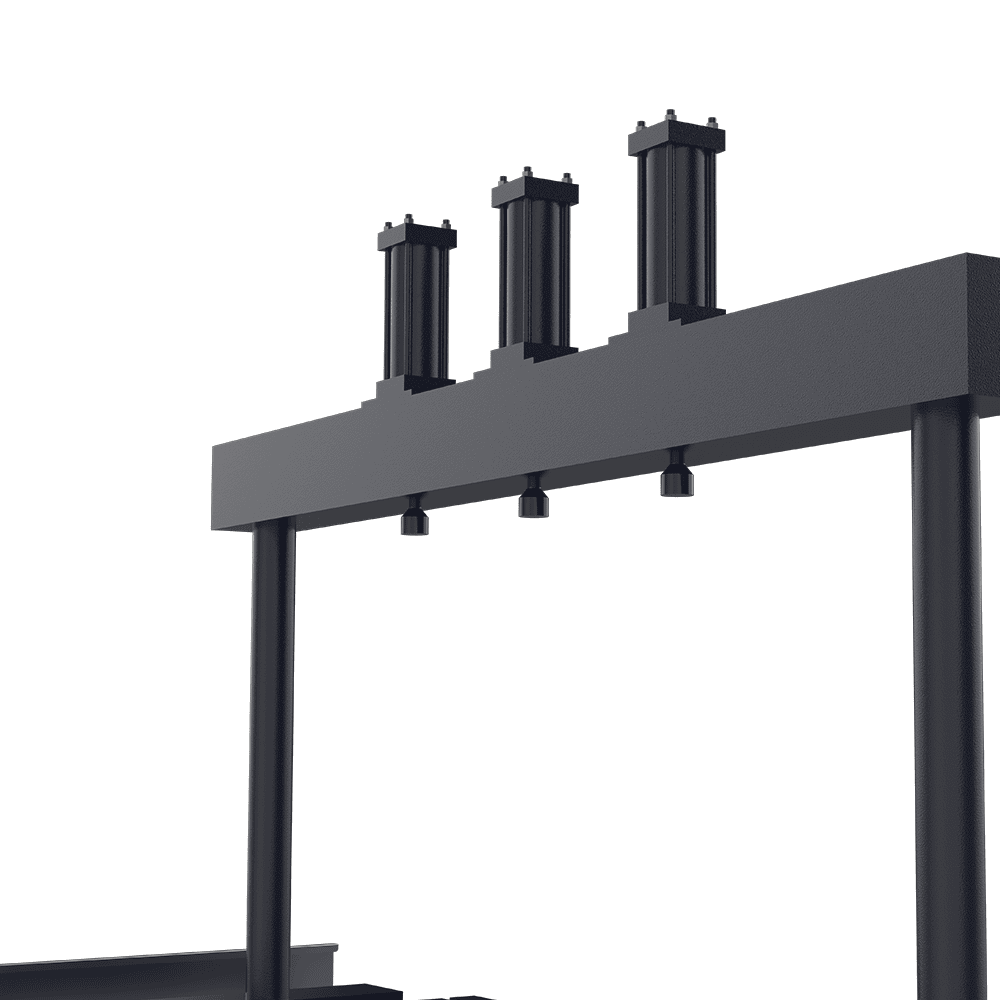

Hydraulic gantry, good stability

Hydraulic gantry, equipped with a three-cylinder pressing rack, pressing material the method is stable and stable.

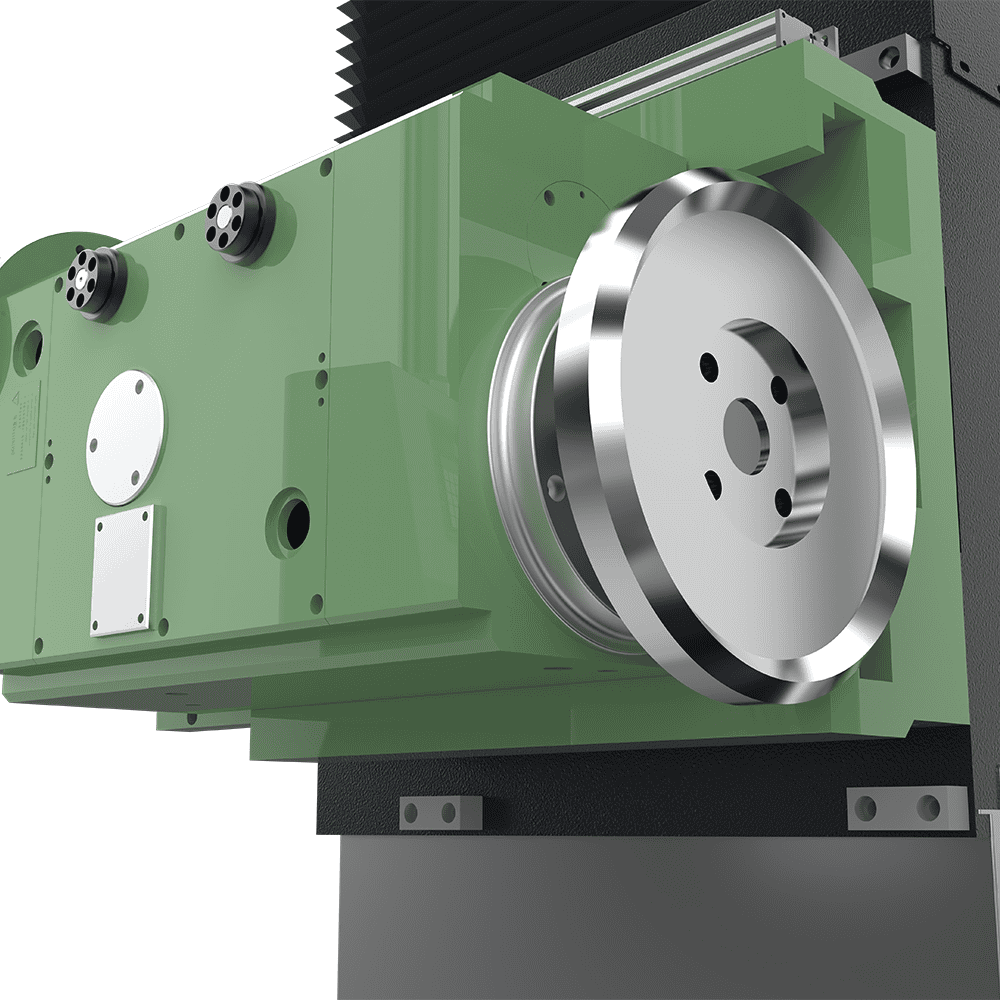

Precision milling and low noise

The milling unit adopts gear transmission, and the cutting and milling surface accuracy is high. Noise is low.

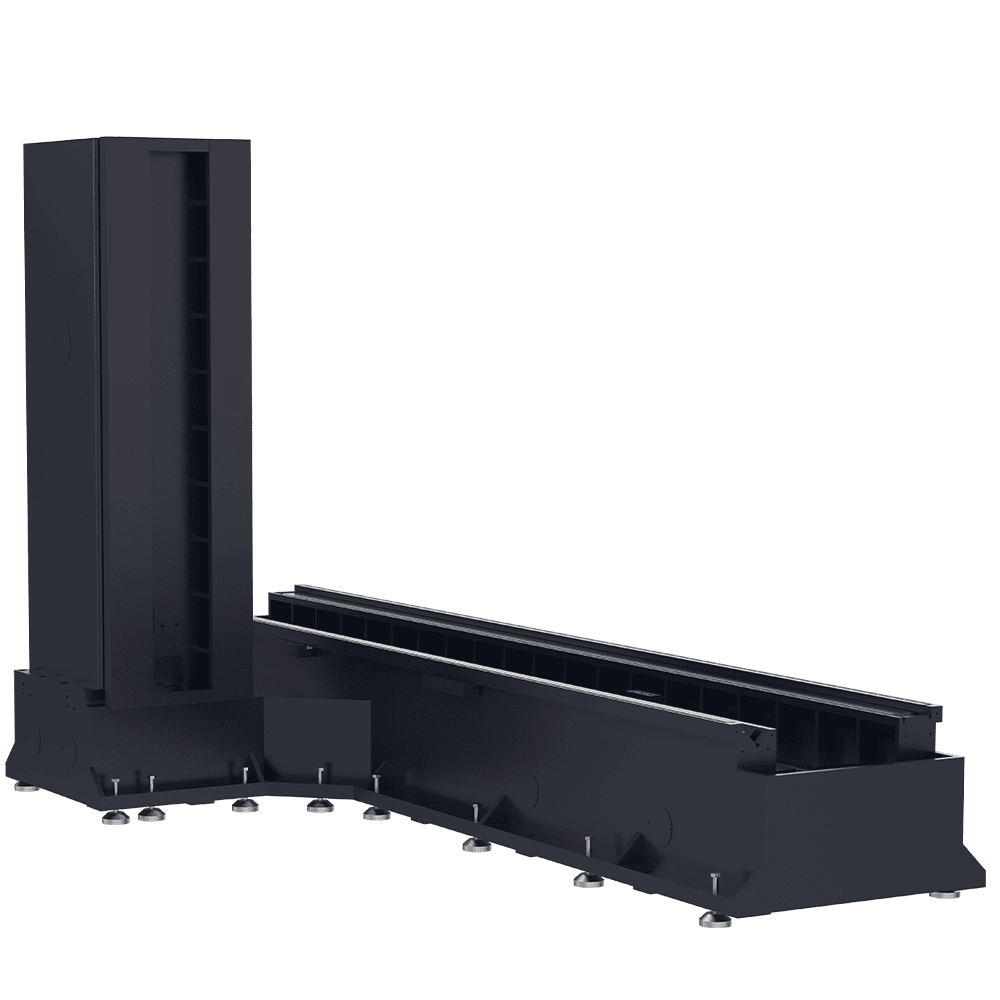

Strong rigidity

The whole machine is rigid, and not easy to damage. Easy to maintain, and functional Variety, large geometric size, ideal for machining prepare.

Basic Info

Items	HM-4000
Machining capacity	40001400800mm
Worktable size	4000*1400mm
Max.load capacity	15000Kg
Rotary table size	1200*1200mm
Spindle motor power	11kW
Spindle speed	66-662rpm
Cutter diameter	φ250mm
X/Y axis rapid feed	6/1.5/1.5m/min
X/Y motor power	5.5/1.5/3kW
Machine size	1000040004000mm
Machine weight	About 21500Kg

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,Asiatools Machinery gets you going!

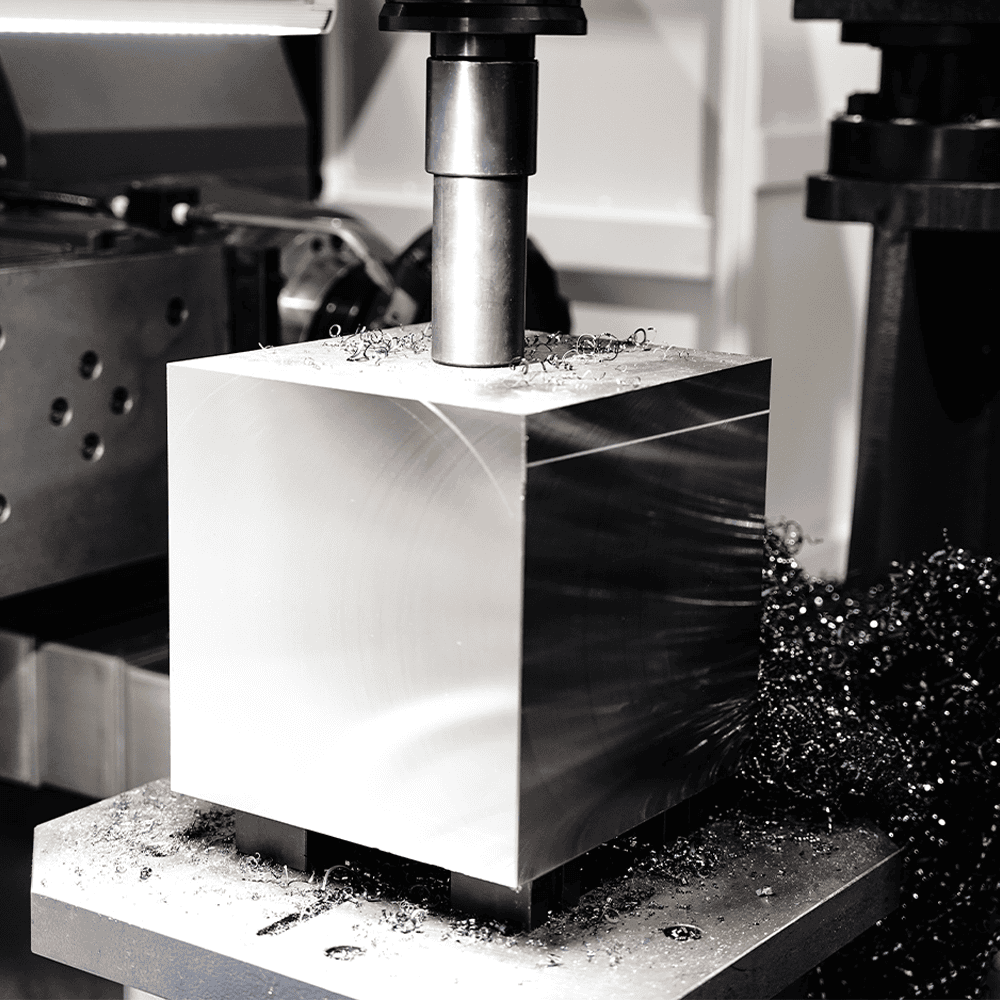

Metal machining

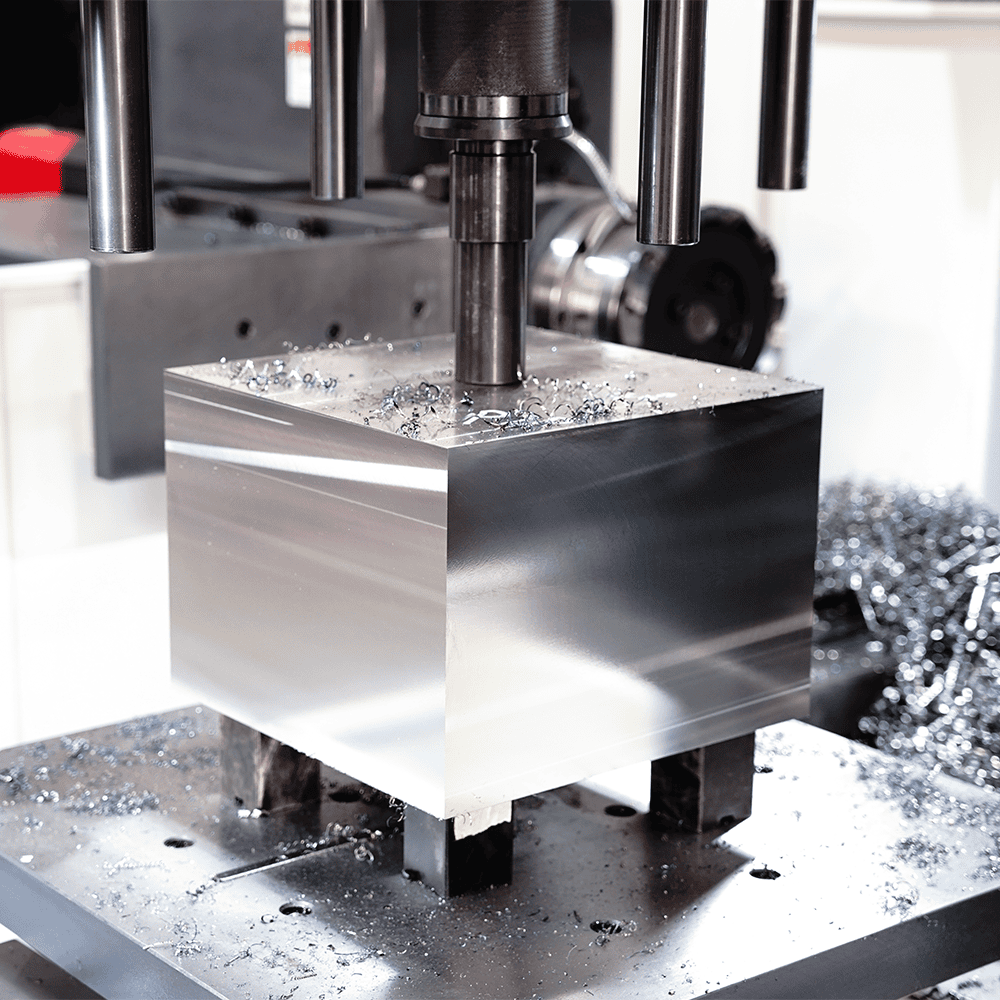

Steel machining

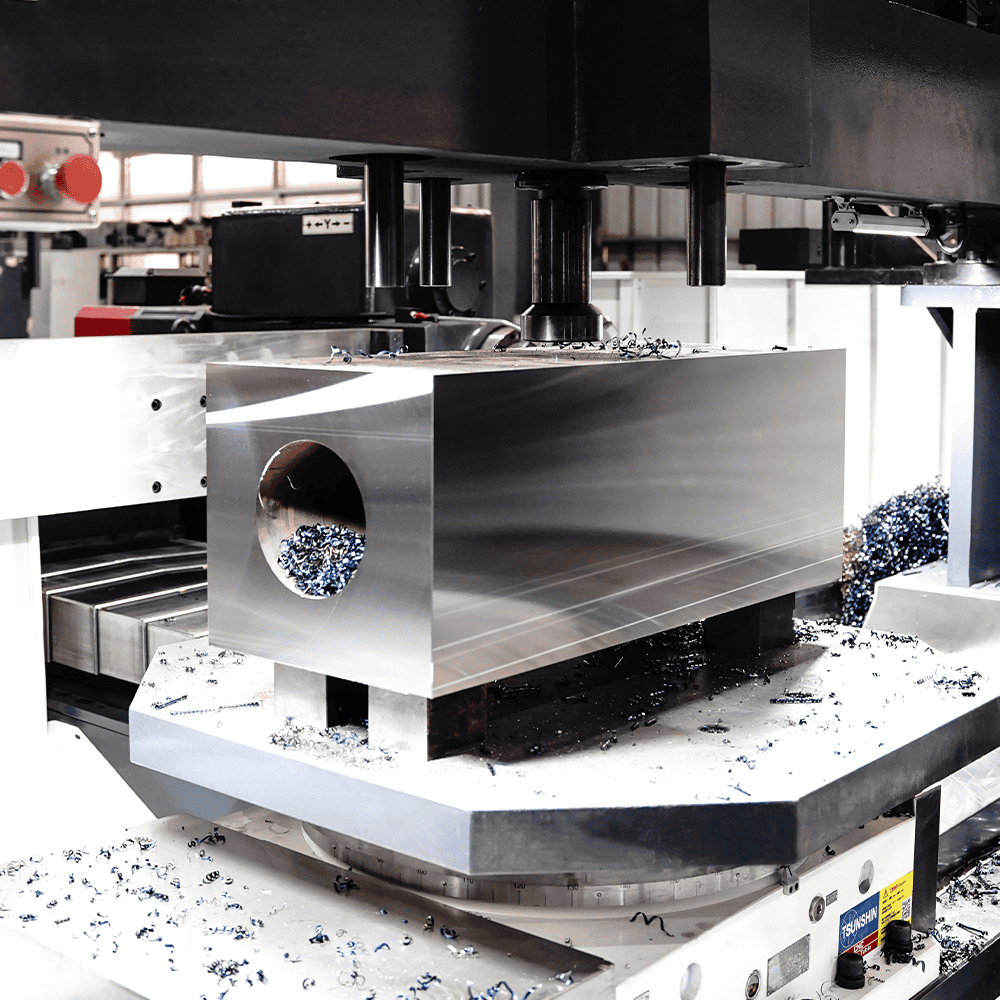

Die sets

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.
