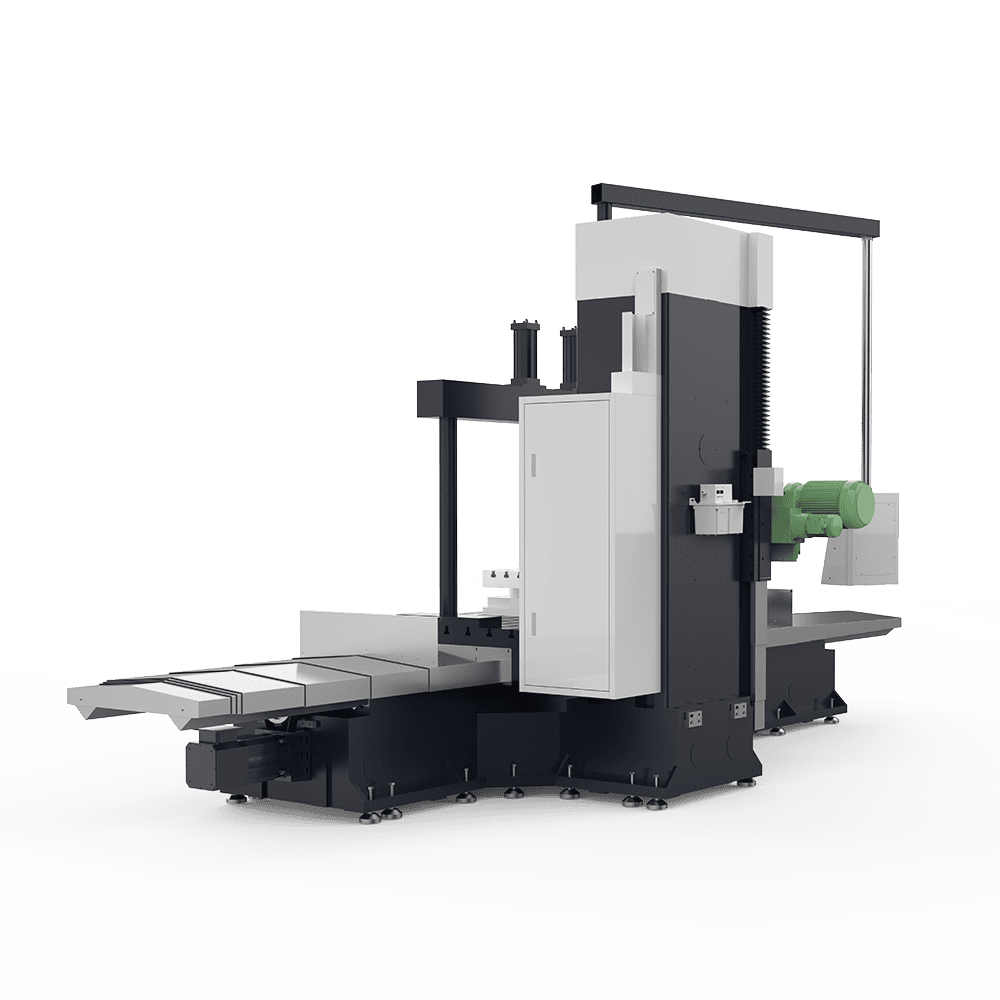

HM-1500

Horizontal Milling Machine

Single-column lifting precision milling machine, with a large processing range of end milling machines. Suitable for end cutting of large mold bases, large steel, and other metal materials cutting, widely used in machinery manufacturing. It is especially suitable for milling the end face of the mold industry, mold embryo, mold material, and plastic mold frame. It can be used to mill both ends of super-long workpieces.

Machining capacity 1240*850*700mm
Worktable size 1500*800mm
Max.load capacity 4000Kg
Rotary table size 450*450mm

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

Horizontal Milling Machine

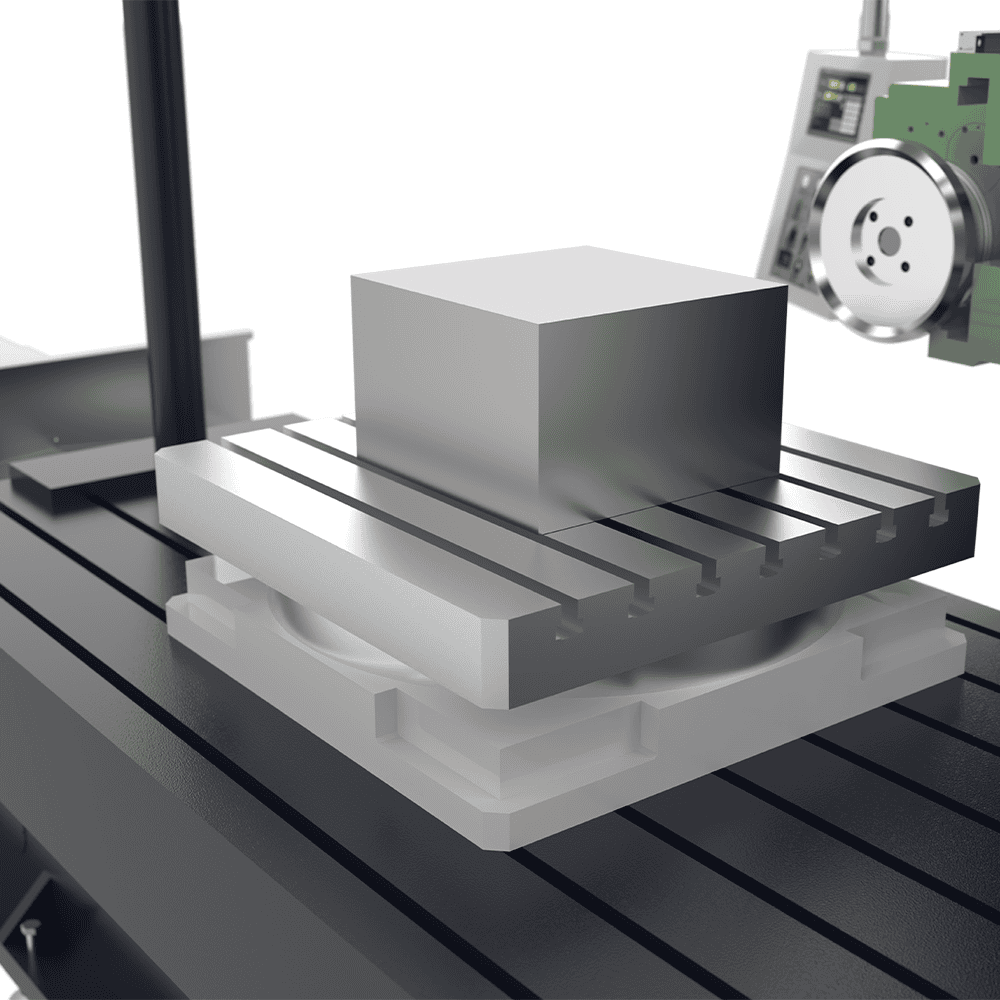

Powerful cutting

The turntable can mill the four end facesof the workpiece. The milling force is strong, which canmeet the machining requirements of parts.

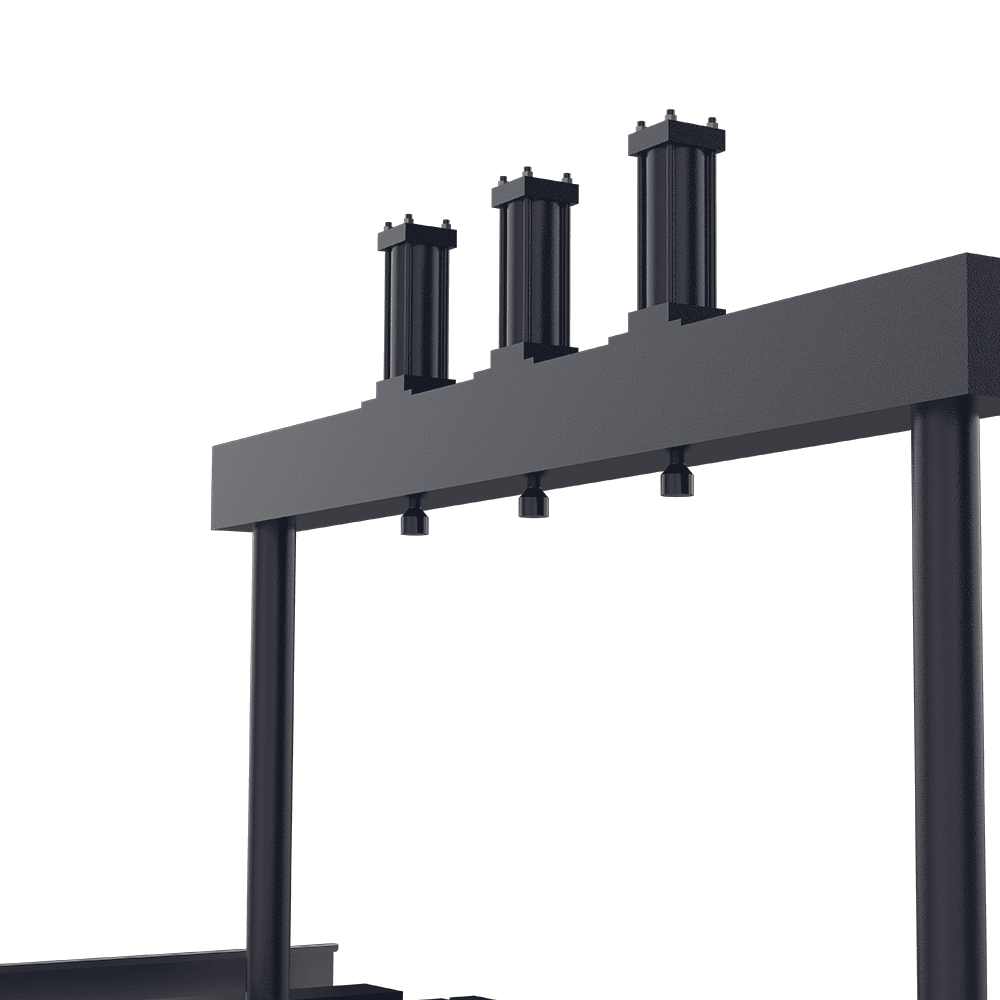

Hydraulic gantry, good stability

Hydraulic gantry, equipped with a three-cylinder pressing rack, pressing material the method is stable and stable.

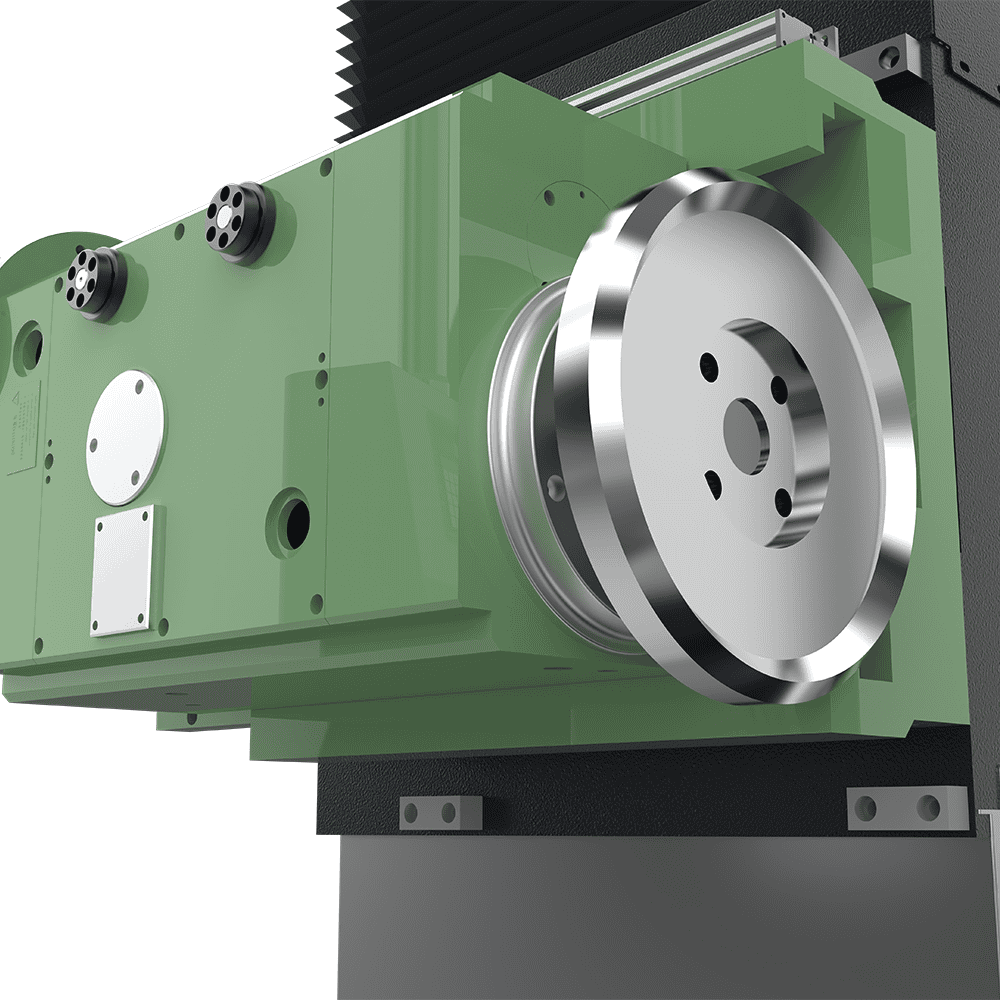

Precision milling and low noise

The milling unit adopts gear transmission, and the cutting and milling surface accuracy is high. Noise is low.

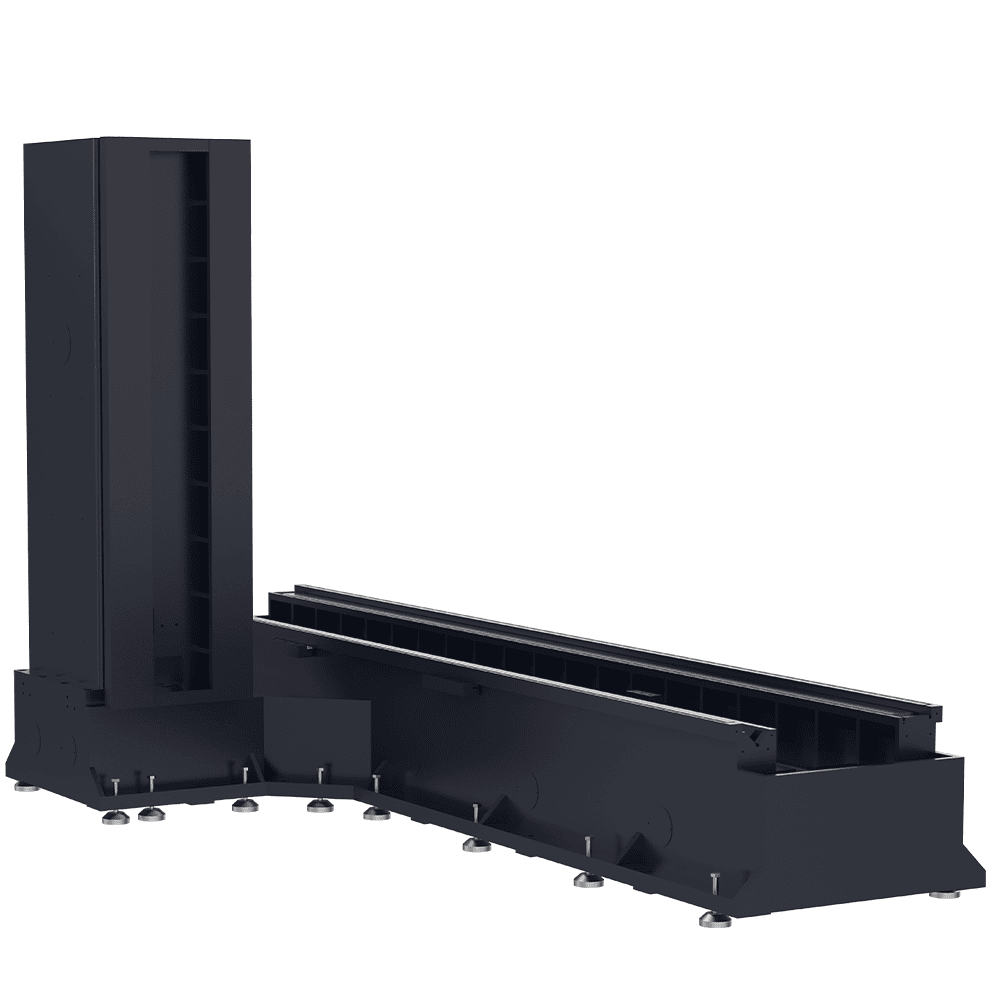

Strong rigidity

The whole machine is rigid, and not easy to damage. Easy to maintain, and functional Variety, large geometric size, ideal for machining prepare.

Basic Info

Items	Value
Items	HM-1500
Machining capacity	1240850700mm
Worktable size	1500*800mm
Max.load capacity	4000Kg
Rotary table size	450*450mm
Spindle motor power	11kW
Spindle speed	75-505rpm
Cutter diameterr	φ250mm
X/Y axis rapid feed	5/2m/min
X/Y motor power	3.7/2.2kW
Machine size	480023003000mm
Machine weight	About 10000Kg

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,Asiatools Machinery gets you going!

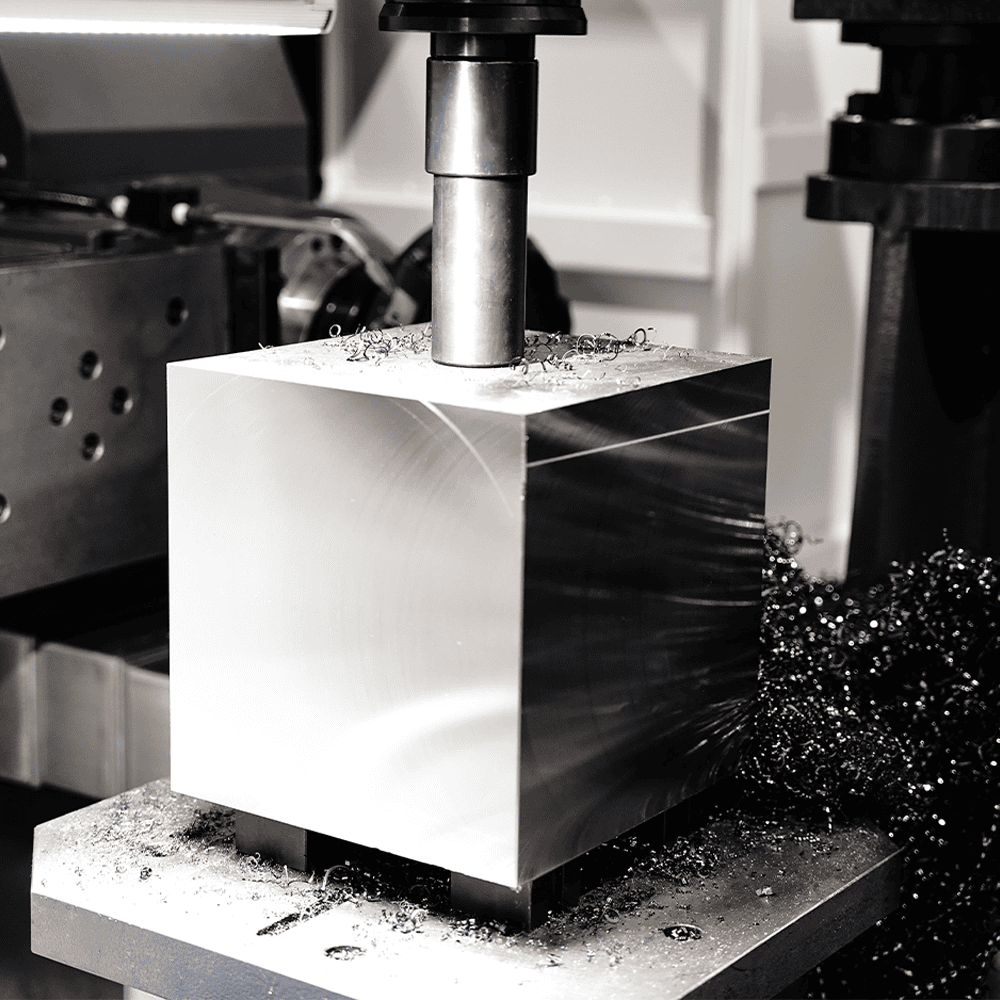

Metal machining

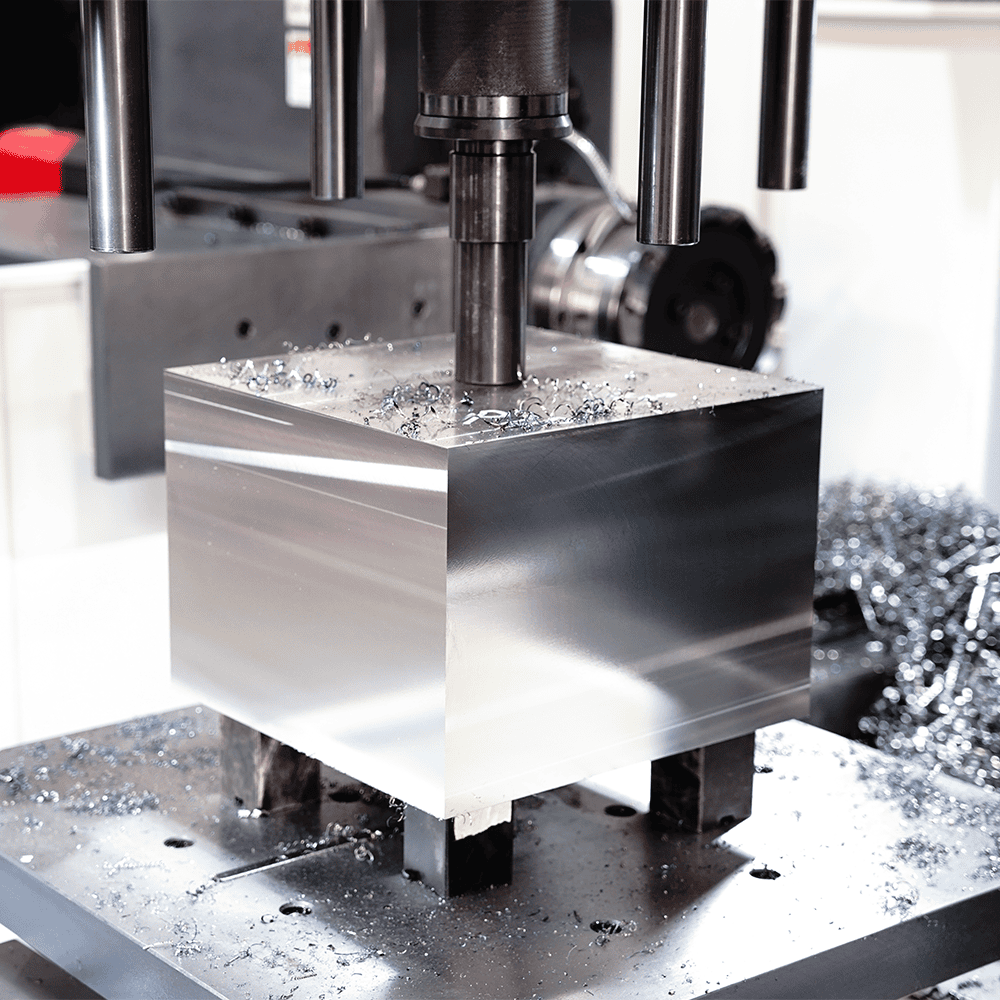

Steel machining

Die sets

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
