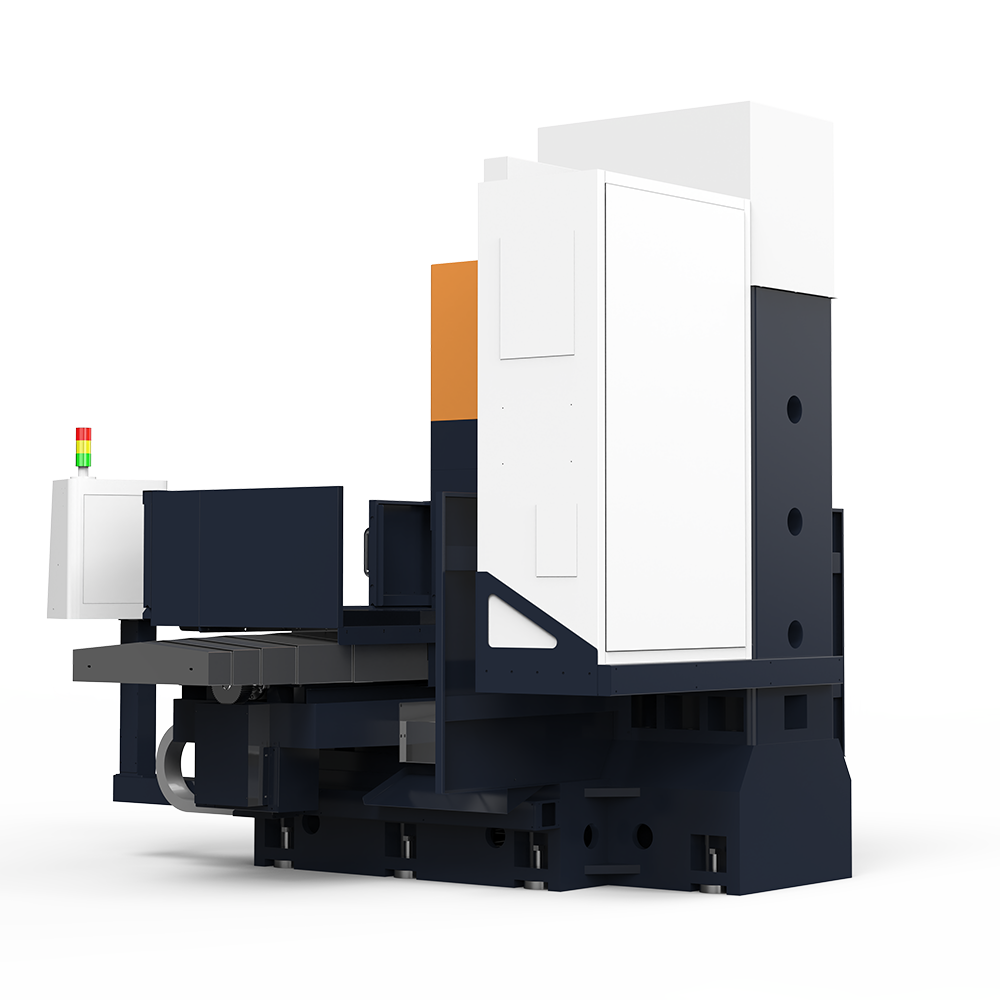

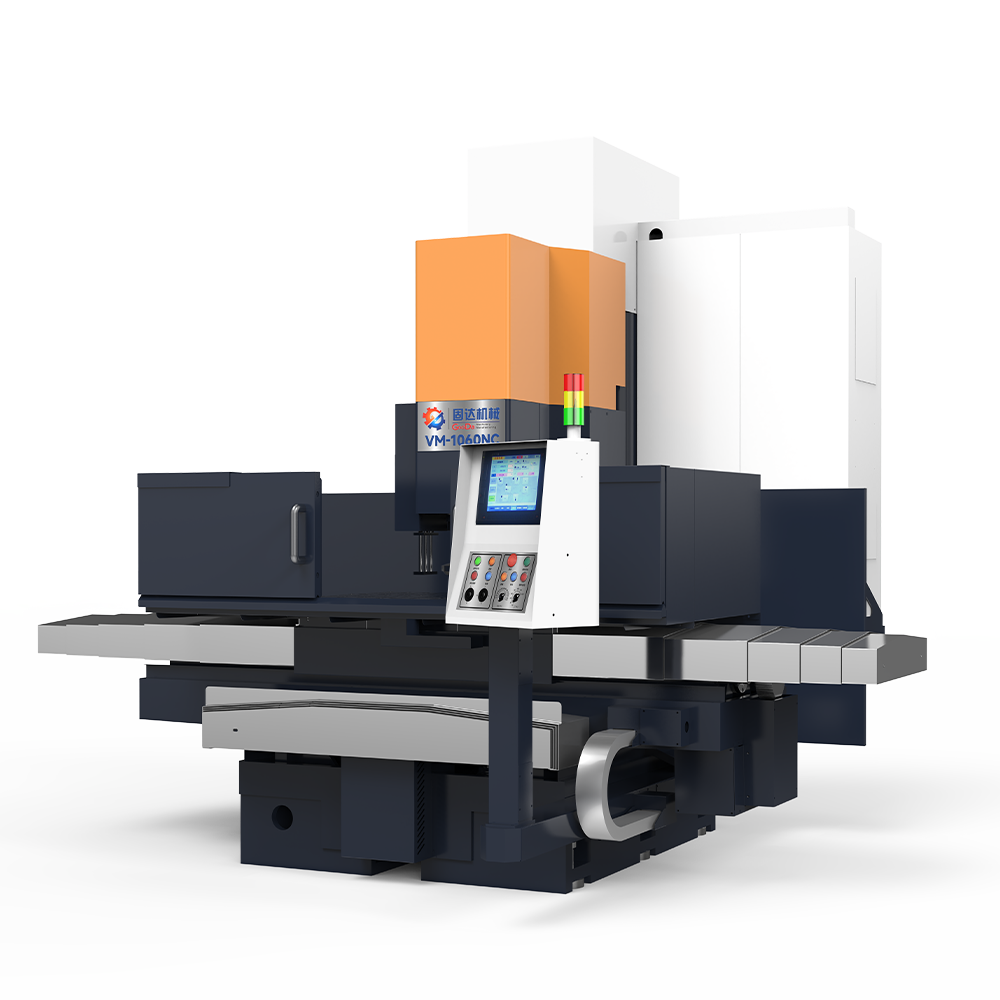

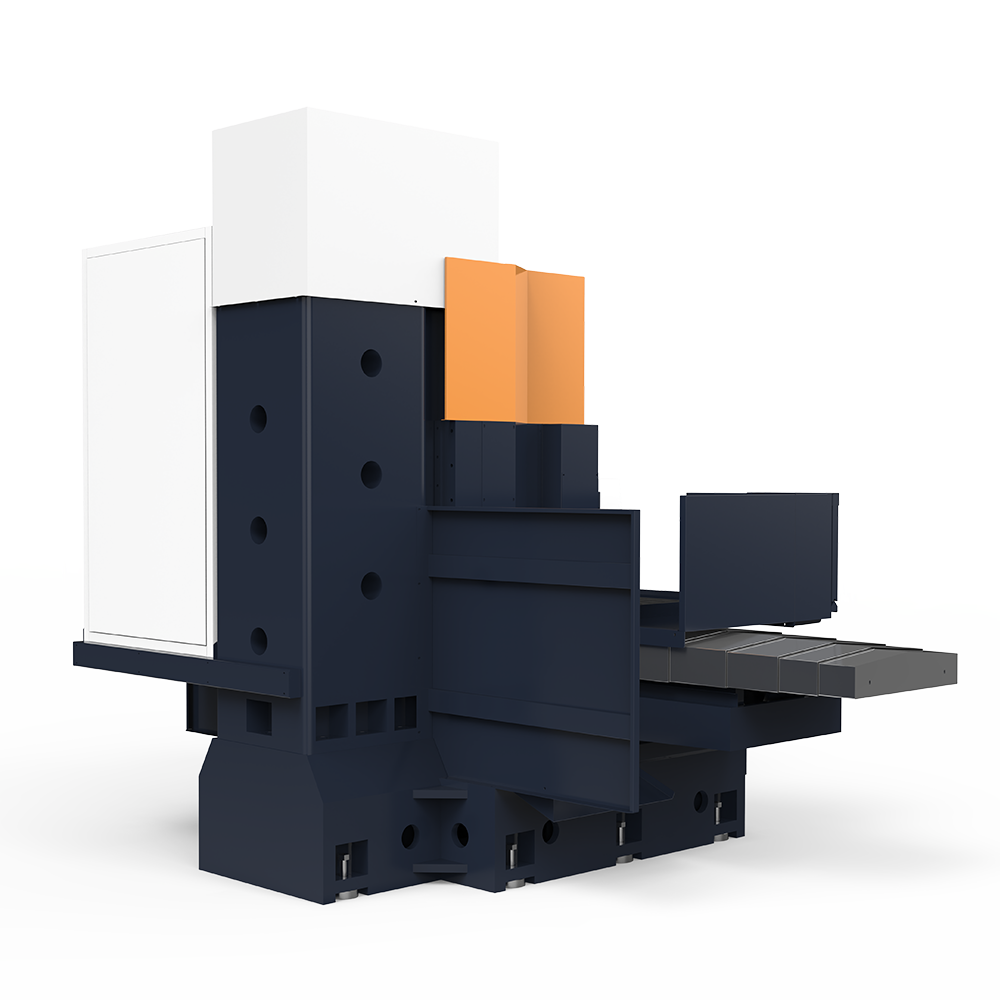

VM-7020NC

CNC Vertical Milling Machine

CNC precision vertical milling machine VM-7020, CNC system controls, one-time data setting, automatic positioning & measurement, automatic processing, reduces the time of operator measurement and manual tool setting, improves processing efficiency, and ensures the flatness of the workpiece.

Machining capacity 700*195mm
Worktable size 200mm
Max.load capacity 195*700mm
Spindle motor power 350Kg

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

CNC Vertical Milling Machine

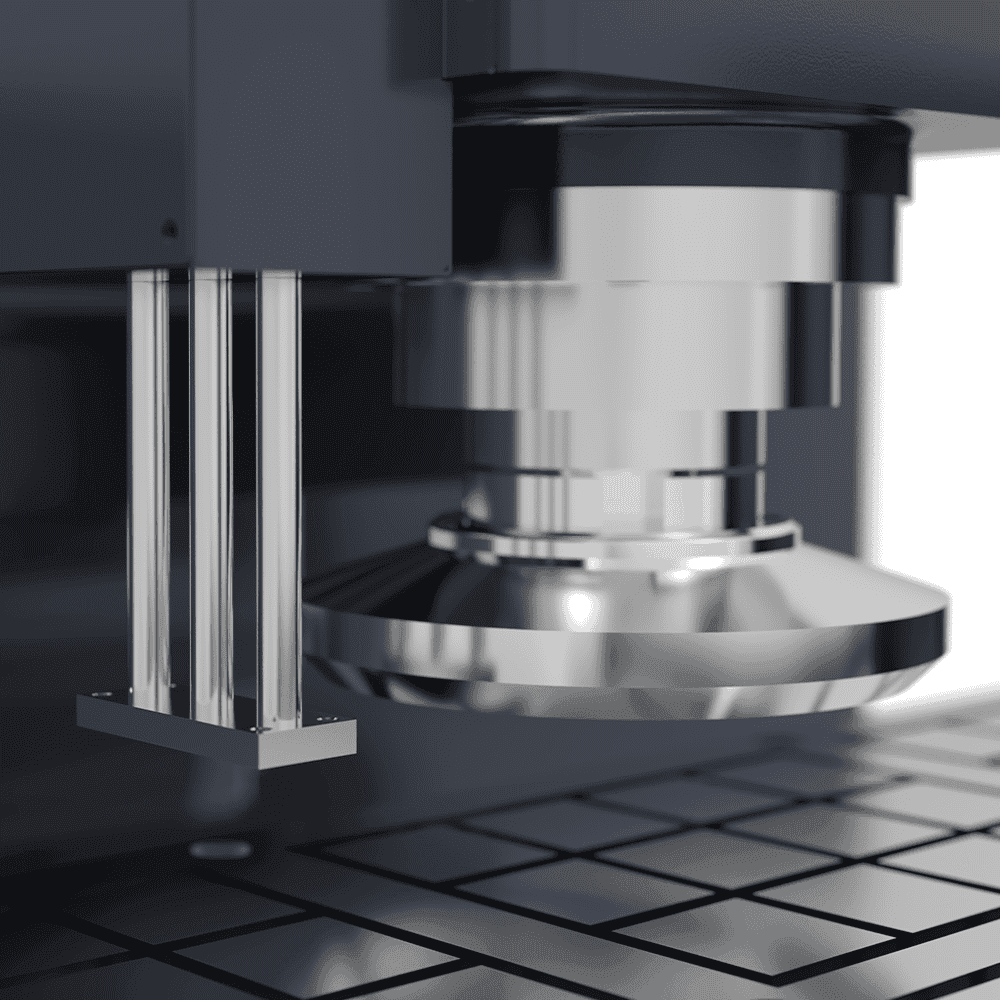

Automatic measurement

Shorten processing time and improve processing accuracy.

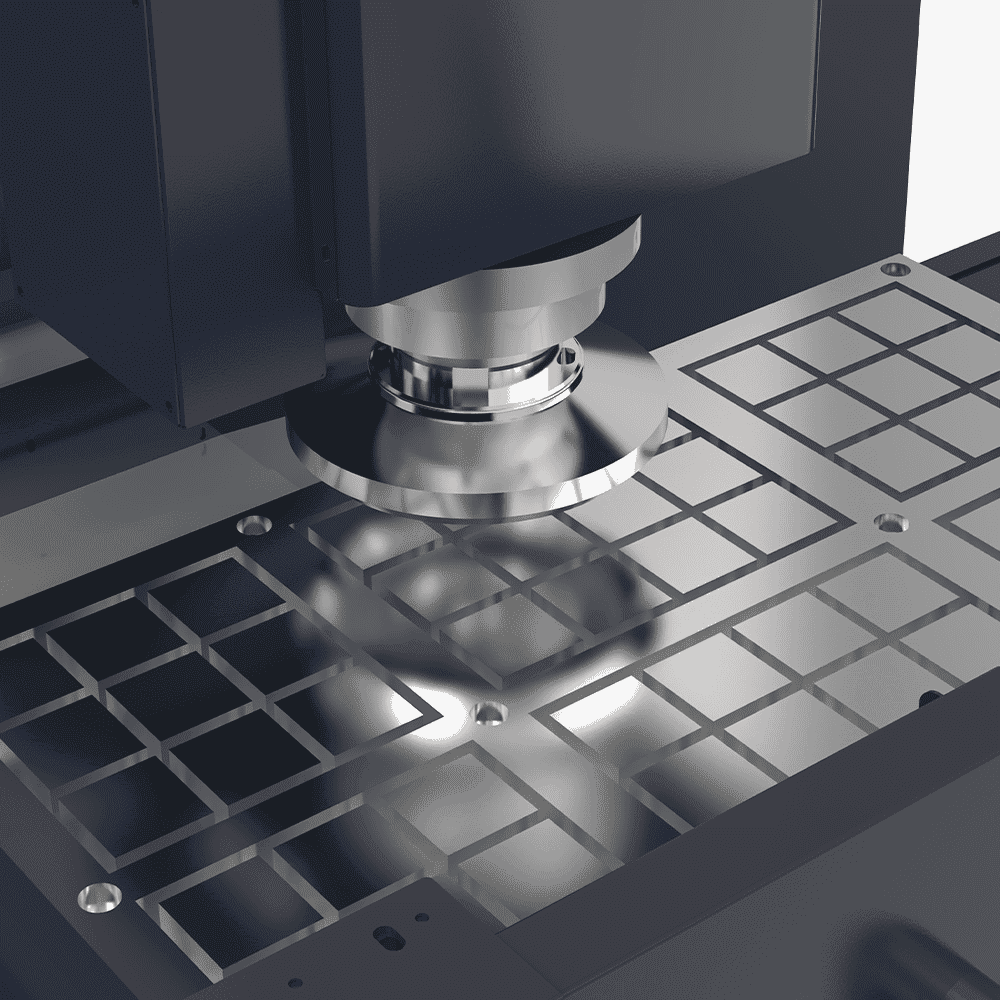

Automatic cutting

Reduce non-processing time, improve productivity, and increase tool change speed.

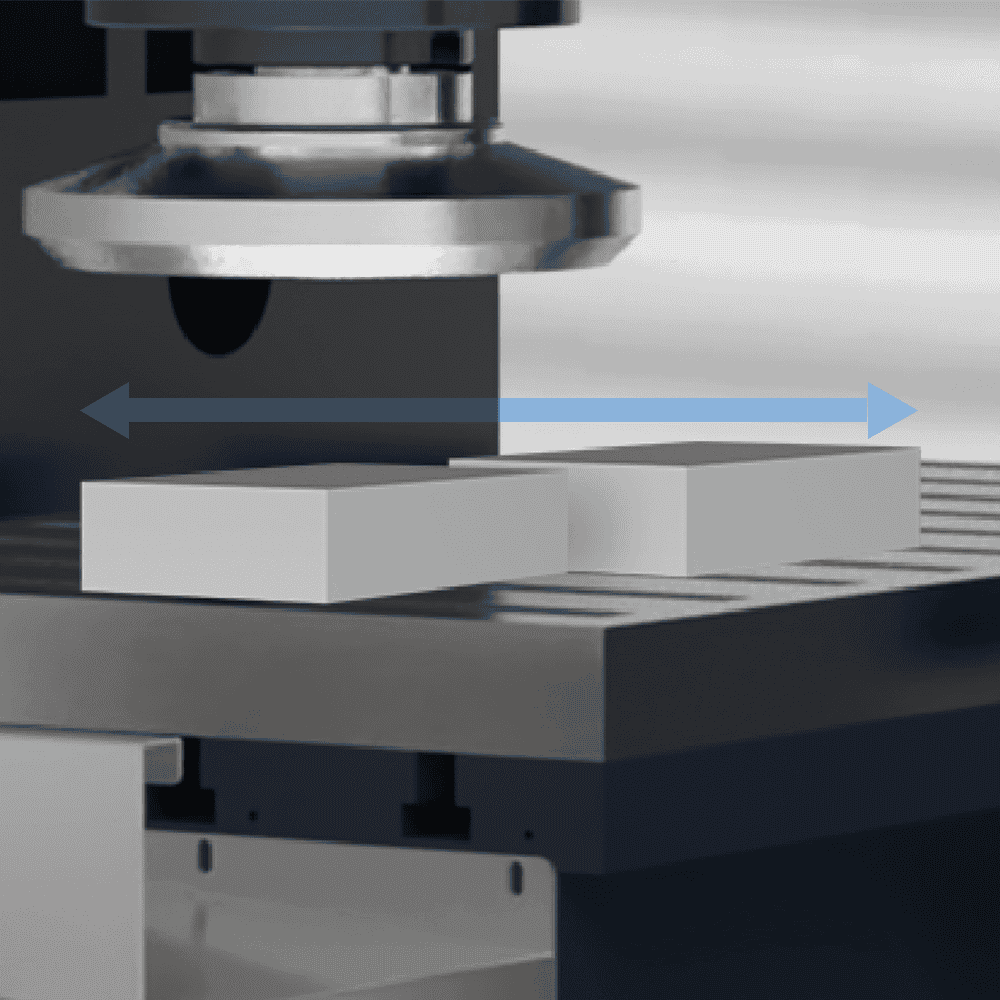

Batch processing of small workpieces

High precision in repeated tool positioning and reasonable tool storage capacity in the tool magazine.

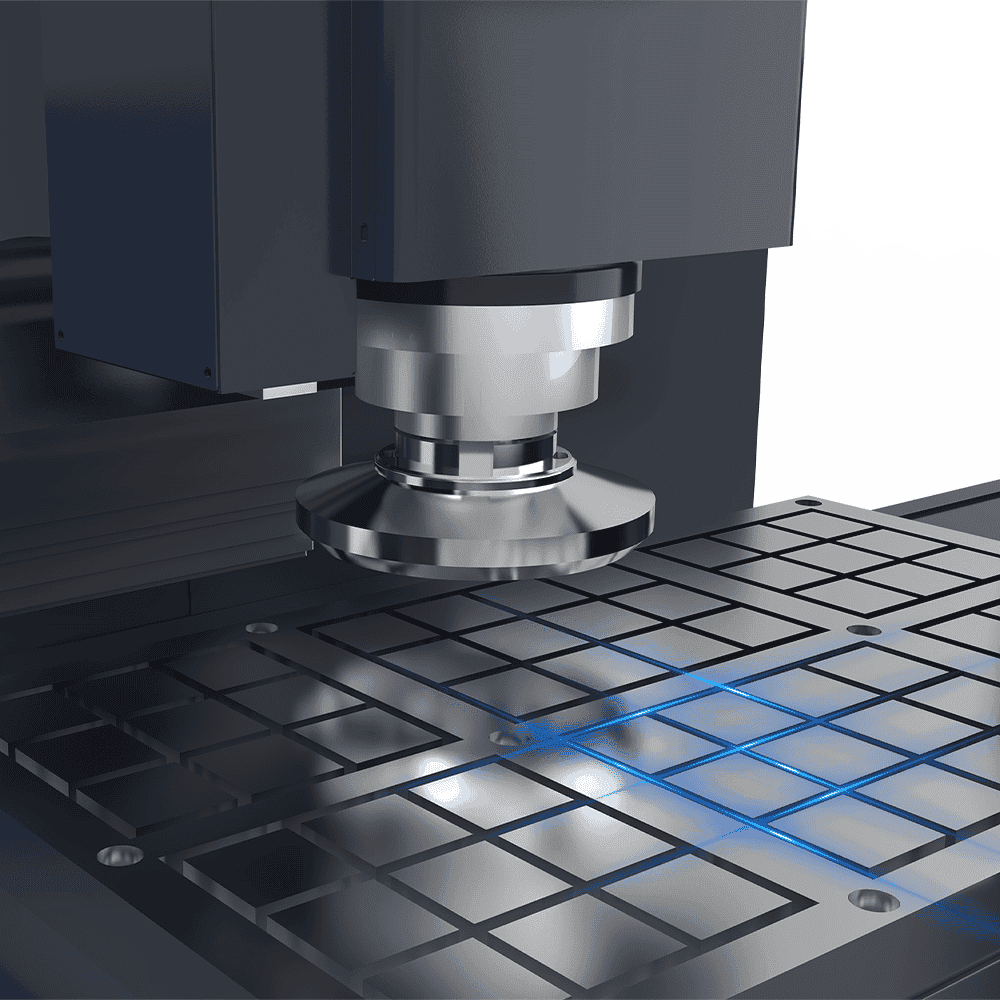

Grid encrypted disk

Strong security measures.

Basic Info

Items	Value
Machining capacity	700*195mm
Max.machining height	200mm
Worktable size	195*700mm
Max.load capacity	350Kg
Spindle speed	50-500rpm
Spindle motor power	11kW
Cutter diameter	φ200mm
X/Z axis rapid speed	5/5m/min
X/Z rapid feed	2.5/2.5m/min
Machine size	270024002250mm
Machine weight	About 3000Kg

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,Asiatools Machinery gets you going!

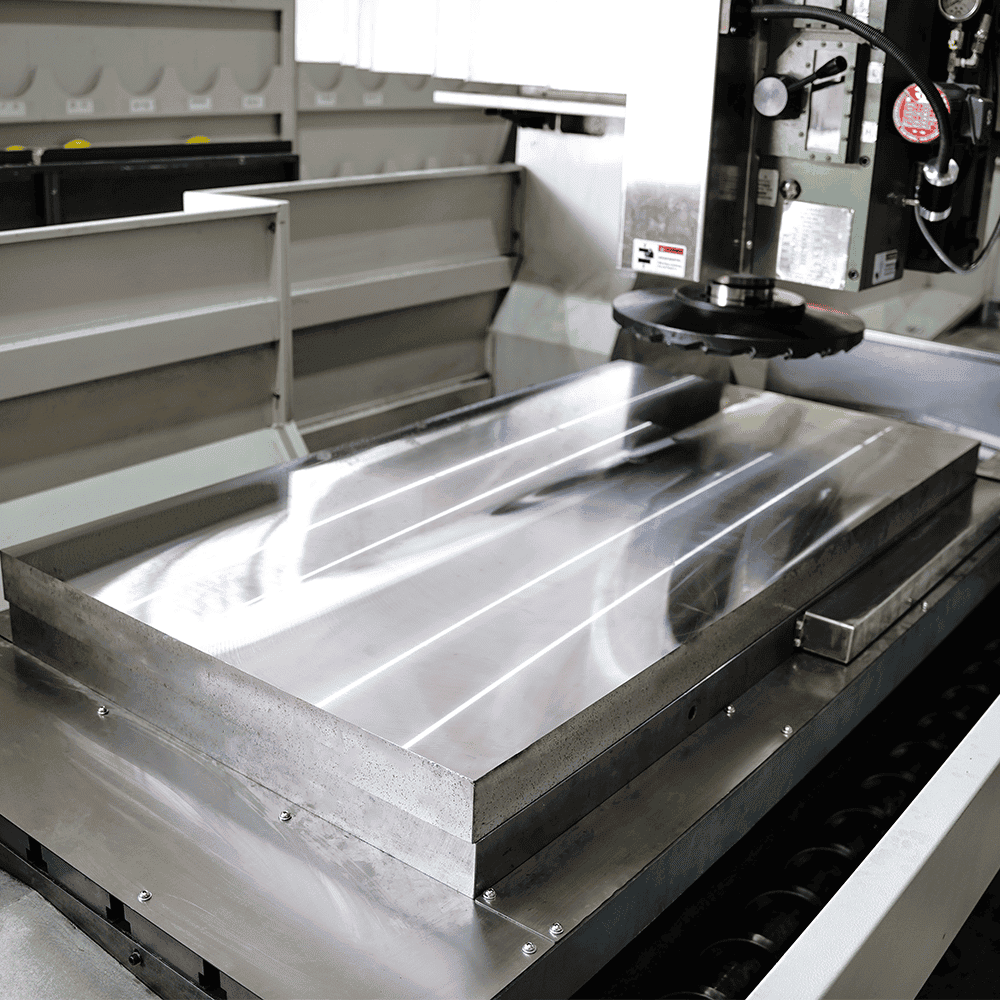

Steel mold processing

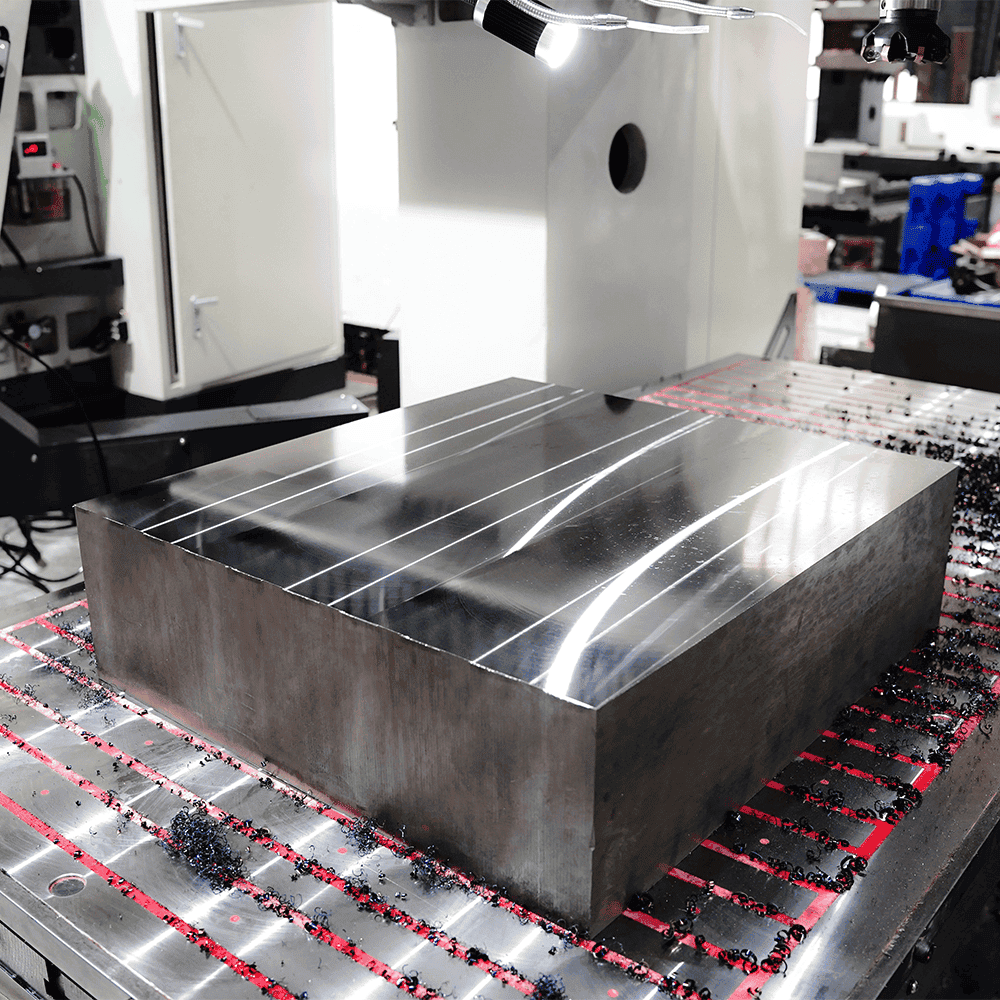

Hydraulic valve block processing

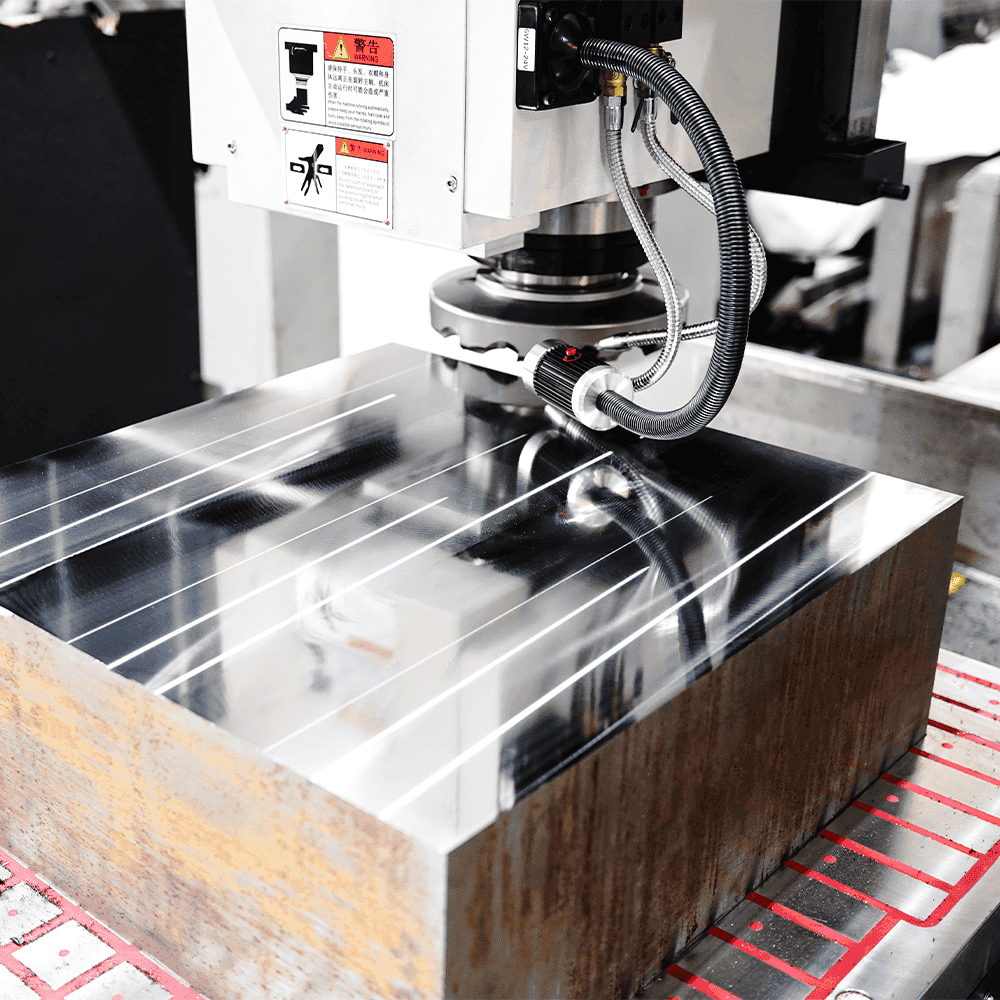

Mold base processing

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
