What is Machined Shaft?

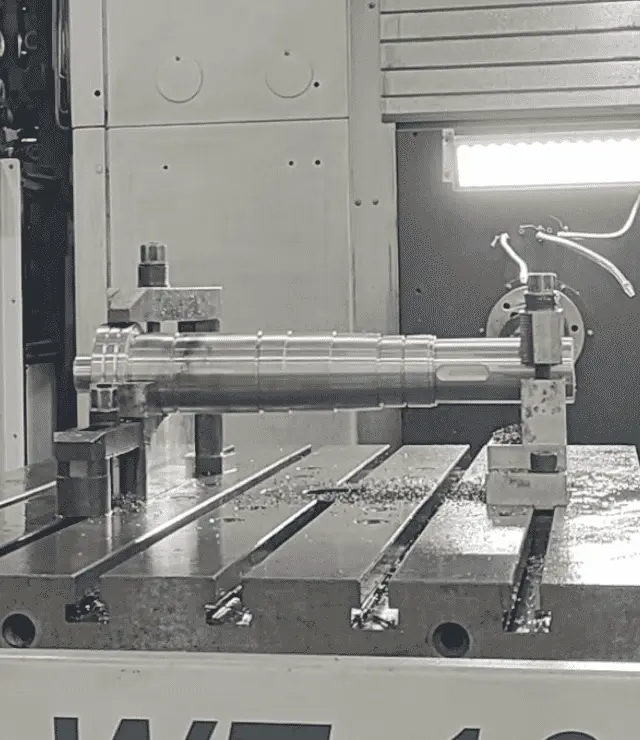

A "machined shaft" is a shaft produced through mechanical processing methods.
In mechanical equipment, shafts are essential components typically used for transmitting power or rotational motion. To achieve precise dimensions, shapes, and surface finishes that meet the requirements of the equipment or system, a machined shaft is manufactured using various machining techniques, such as turning, milling, grinding, and drilling.
How We Process Custom
Machined Shafts?

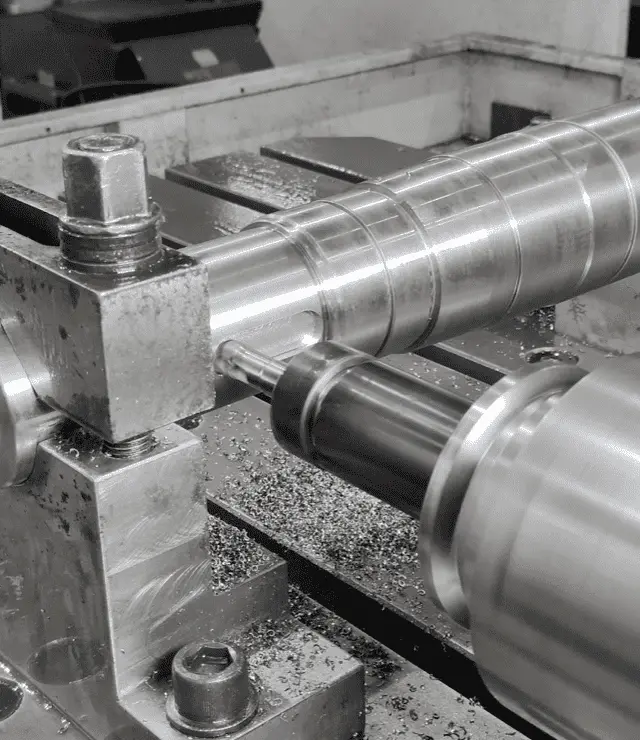

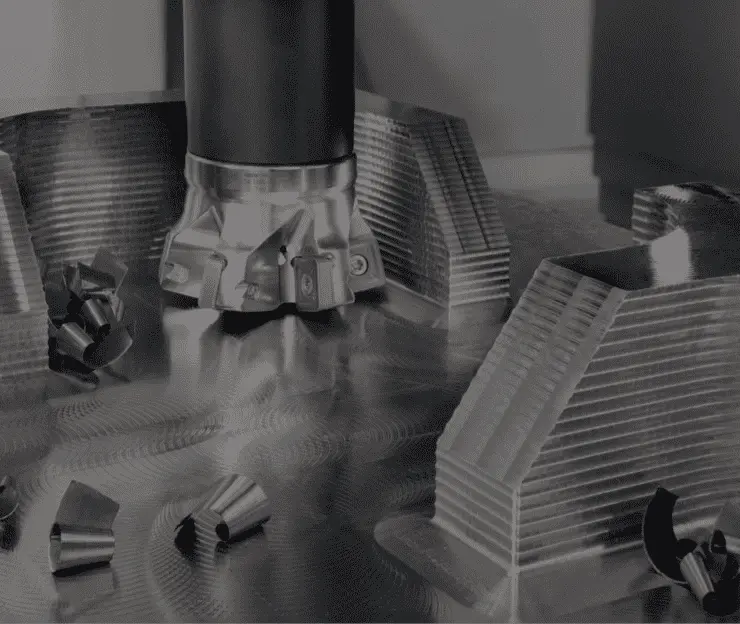

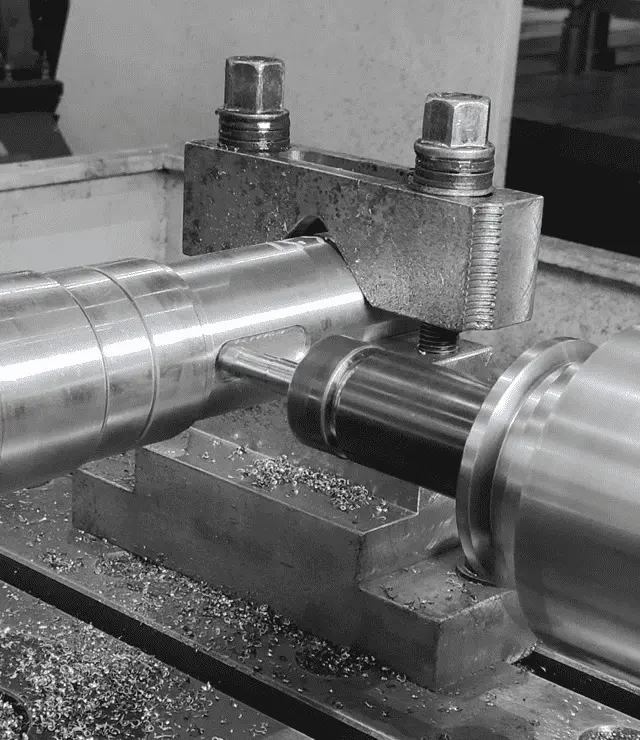

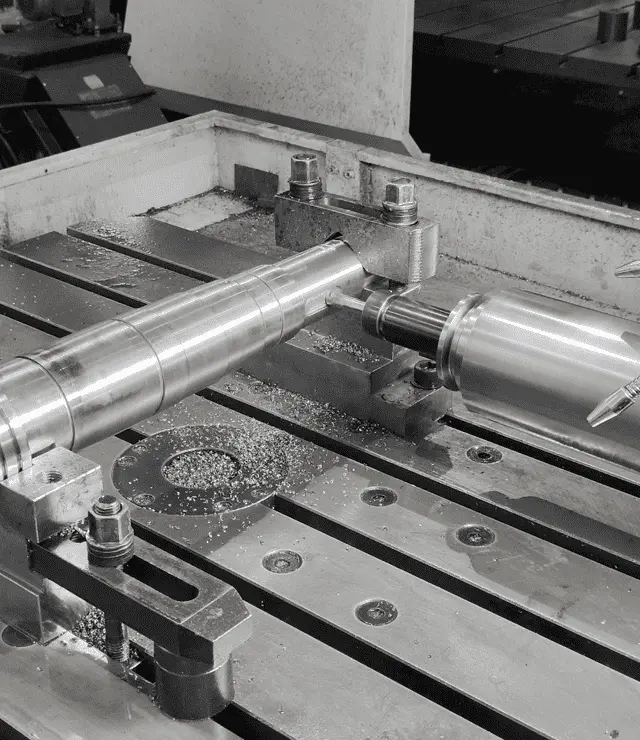

Milling
Utilize a rotating cutting tool to remove material and craft intricate details and features.

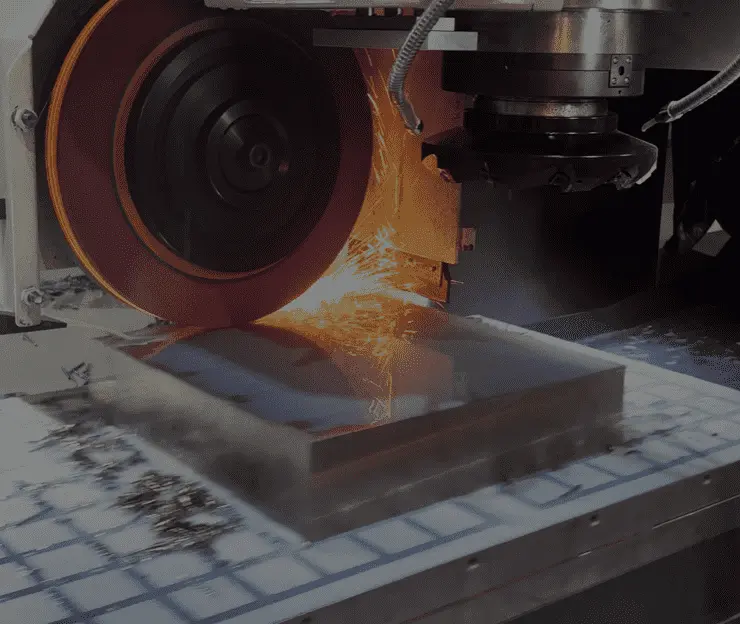

Grinding
Implement grinding techniques to achieve precise dimensions and a smooth surface finish.

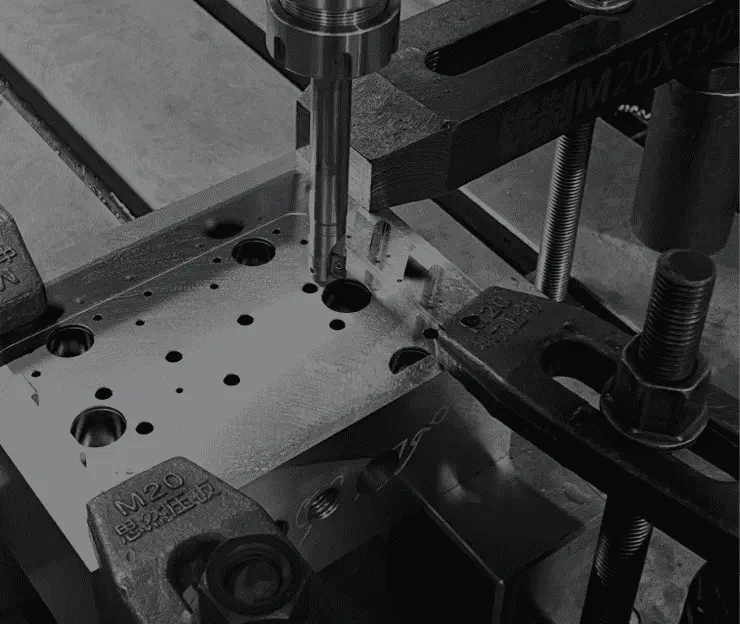

Drilling
Create the necessary holes as specified by the design.
Milling
Utilize a rotating cutting tool to remove material and craft intricate details and features.
Grinding
Implement grinding techniques to achieve precise dimensions and a smooth surface finish.
Drilling
Create the necessary holes as specified by the design.
Types of Custom Machined Shafts

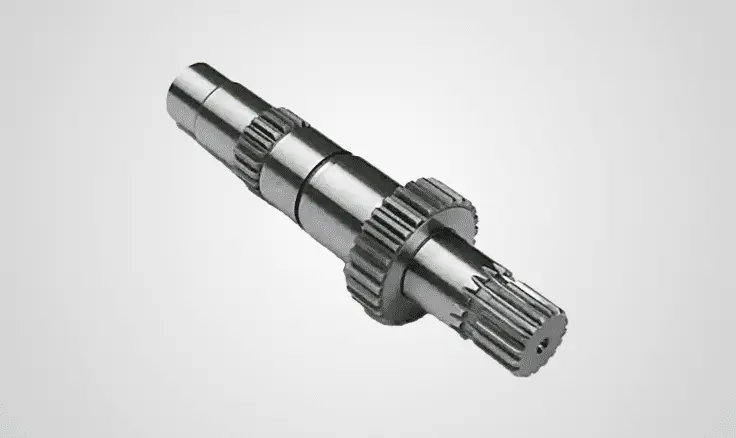

Splined Shaft:
With a series of teeth along its surface, the splined shaft is designed to transfer torque effectively to a part with matching grooves. Thanks to this interlocking design, it’s a top choice for an application requiring high torque transmission, such as in an automotive drivetrain.
01

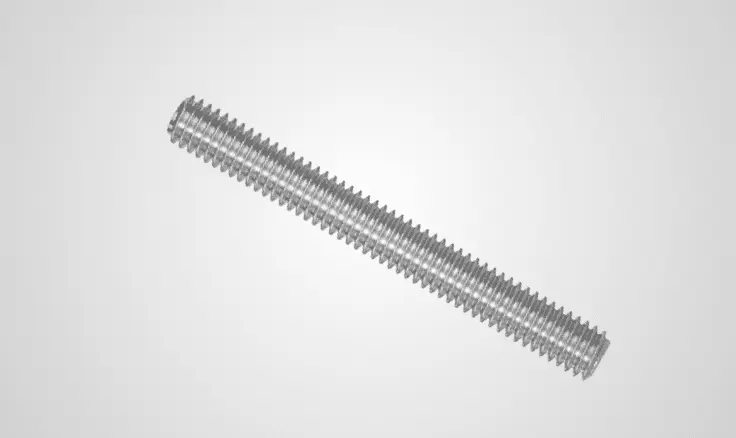

Threaded Shaft:
The threaded shaft features helical ridges that allow it to convert rotational motion into linear motion. This functionality makes it indispensable in a system that demands precision, like a lead screw used in CNC machinery.
02

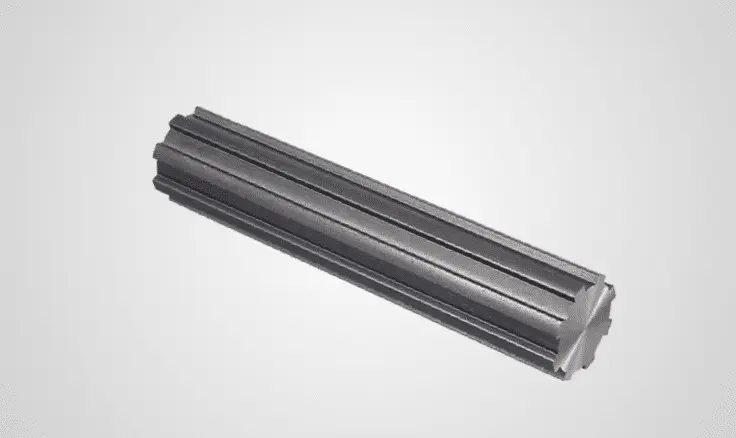

Keyed Shaft:
The keyed shaft includes a keyway that holds a key, ensuring no rotation occurs between the shaft and the component it drives. This setup is crucial for an application where the connection must handle heavy torque without any risk of slipping.
03

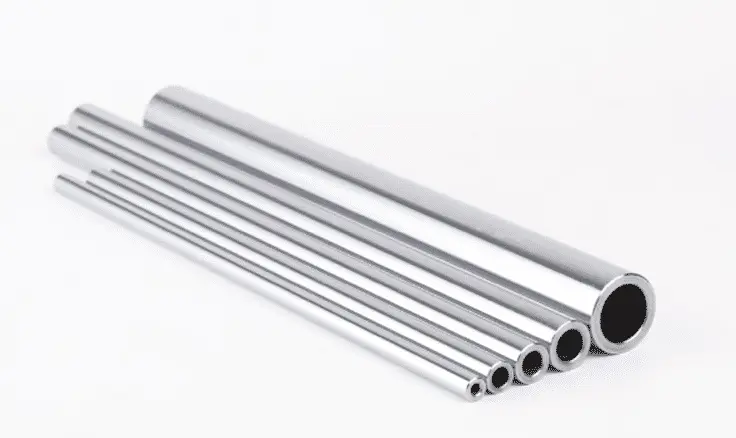

Hollow Shaft:
The hollow shaft is particularly valuable in a scenario where reducing weight is a priority, such as in aerospace or high-speed machinery. Its lightweight yet sturdy construction makes it ideal for achieving optimal performance without sacrificing strength.
04

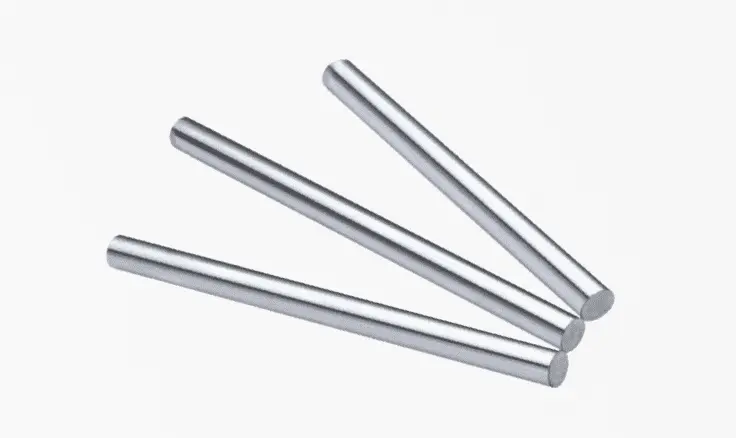

Straight Shaft:
As a fundamental component in countless machines, the straight shaft plays a vital role in transmitting power efficiently between different parts. A well-made straight shaft can significantly improve a machine’s performance, durability, and reliability.
05
Materials Available for Machining
Shaft Part
Materials Available for
Machining Shaft Part
When selecting the material for a machined shaft, several key factors must be considered, including load-bearing capacity,
corrosion resistance, ease of processing, and cost. At ASIAOTOOLS, we offer expert guidance to help you choose the most suitable material.Below are examples of commonly used materials in shaft machining:
Carbon Steel
Alloy Steel
Stainless Steel
Tool Steel
Aluminum
Brass and Bronze
Choose Us - We’ve Got You Covered
ASIATOOLS offers a wide range of shaft machining solutions, delivering high-quality components tailored to diverse industrial needs. Whether you require small-batch prototypes or large-scale production, our expert team is ready to provide exceptional service and precision craftsmanship. Looking for customized shaft machining? Get in touch with us today—we’ve got you covered!
CONTACT US TODAY
Highly Skilled Professionals
Customer-Centric Approach
Timely Delivery
Competitive Price
Choose Us - We’ve Got You Covered
ASIATOOLS offers a wide range of shaft machining solutions, delivering high-quality components tailored to diverse industrial needs. Whether you require small-batch prototypes or large-scale production, our expert team is ready to provide exceptional service and precision craftsmanship. Looking for customized shaft machining? Get in touch with us today—we’ve got you covered!
CONTACT US TODAY
Highly Skilled Professionals
Customer-Centric Approach
Timely Delivery
Competitive Price
Get A Free Quote
If you are interested in our services, please fill out the form below, we will get in touch as soon as possible-
Q：How to Prevent Misalignment During Shaft Machining?
A：To prevent misalignment during shaft machining, ensure proper setup and alignment from the start, utilize precision fixtures to maintain stability, and conduct regular checks throughout the process to verify alignment accuracy.
-
Q：Can ASIATOOLS assist with the design and manufacturing of machined shafts?
A:Yes, we can. We can help optimize your machined shaft design and provide material recommendations to meet your machining needs.
