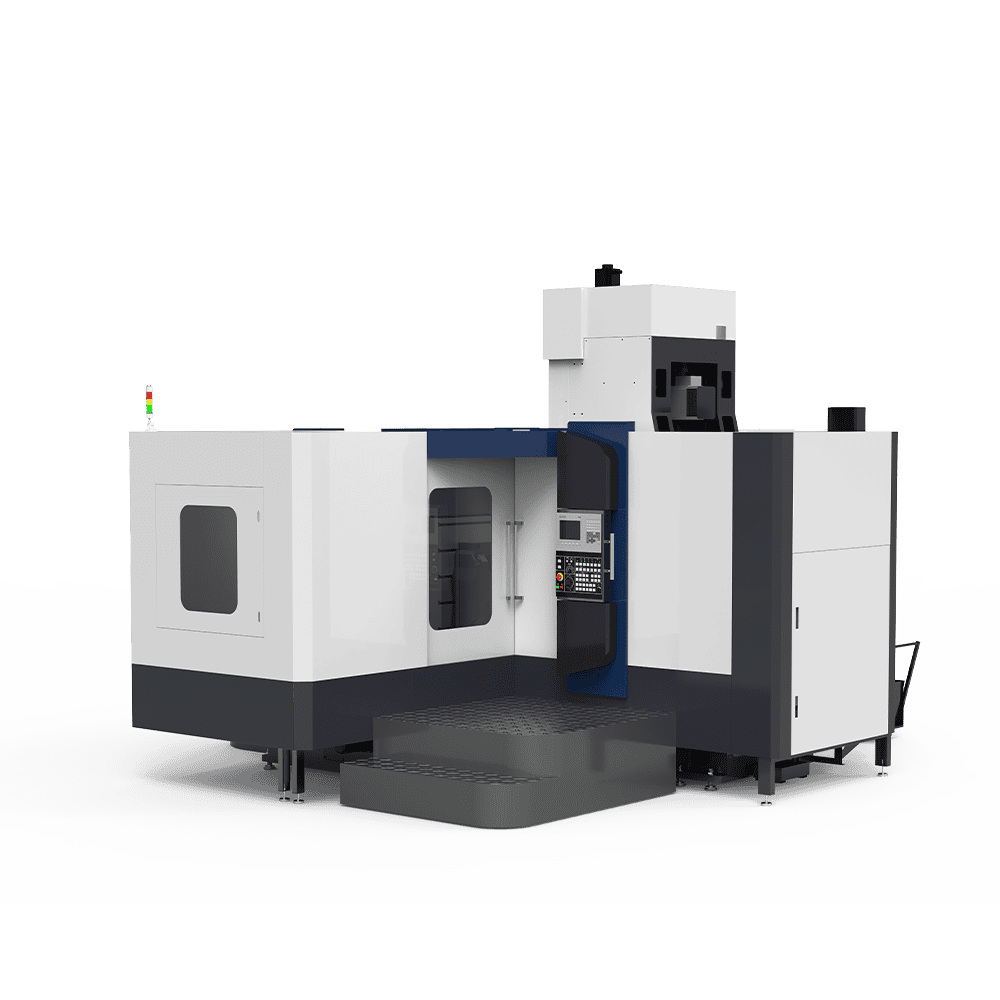

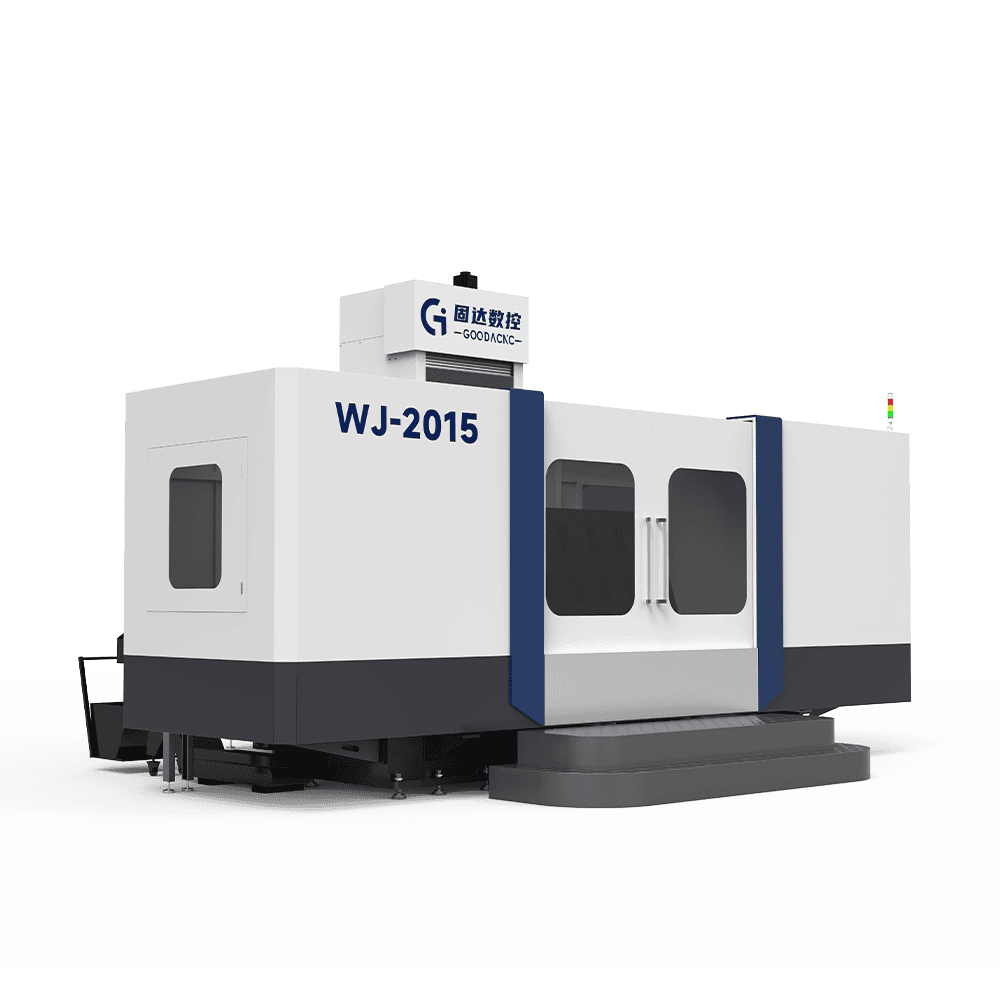

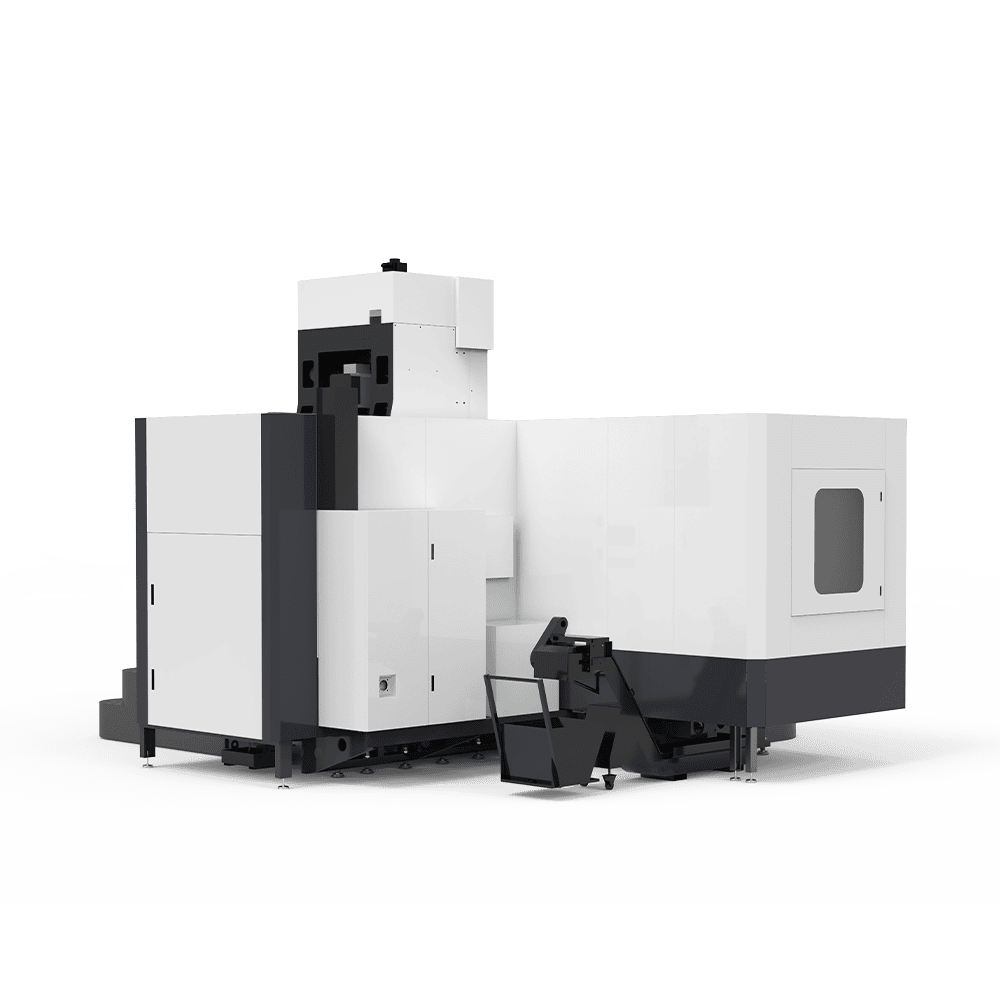

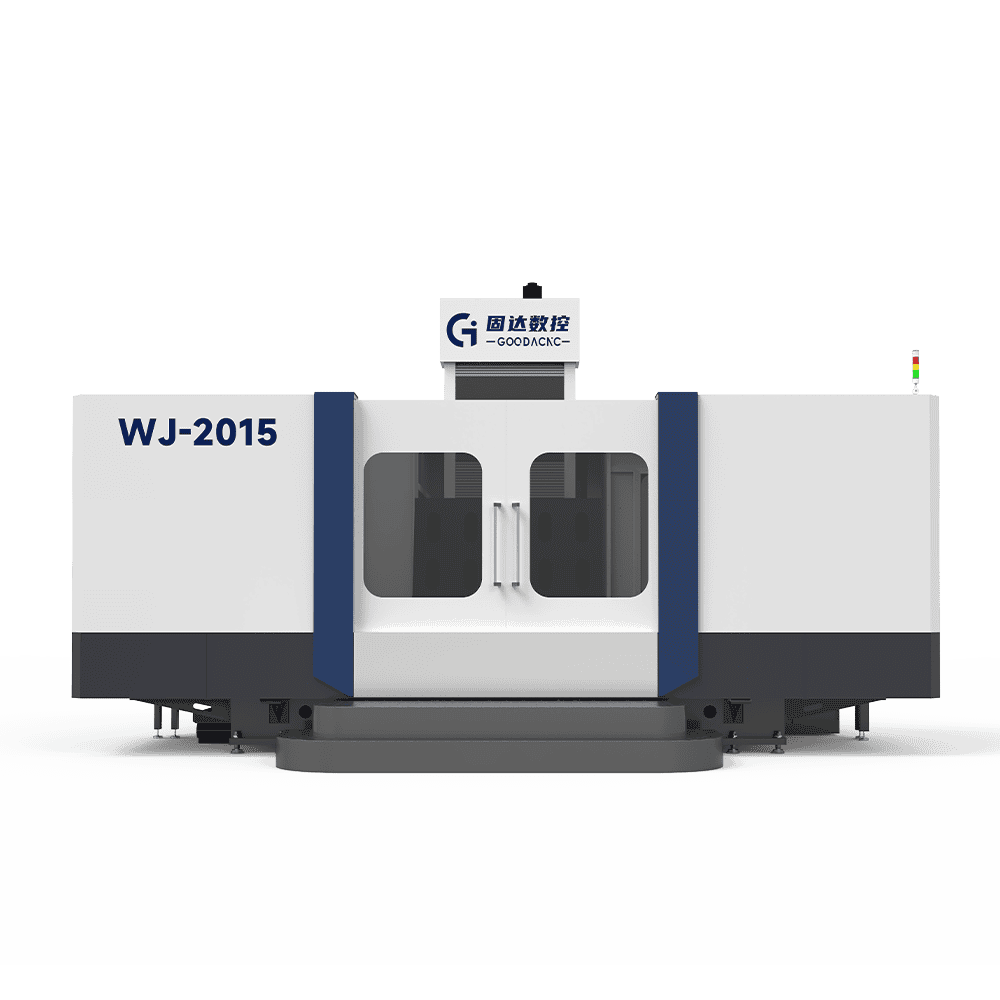

WJ-2015

Horizontal Machining Center

Machines adopt an oversized inverted" T" -shaped base, Y-axis overall double-walled moving column structure, and hanging spindle box casting structure. It is a heavy-duty cutting and heavy-loading tool that is durable for rough and hand-finish machines. It adopts a customized spindle and is equipped with a 30kw high-torque motor. It is suitable for precision molds, engineering machinery, automobile power, locomotives, ships, marine engineering, and other industries.

Max. X-axis travel 2000mm
Max. Y-axis travel 1500mm
Max. Z-axis travel 850mm
Max. load capacity 15000KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

Horizontal Machining Center

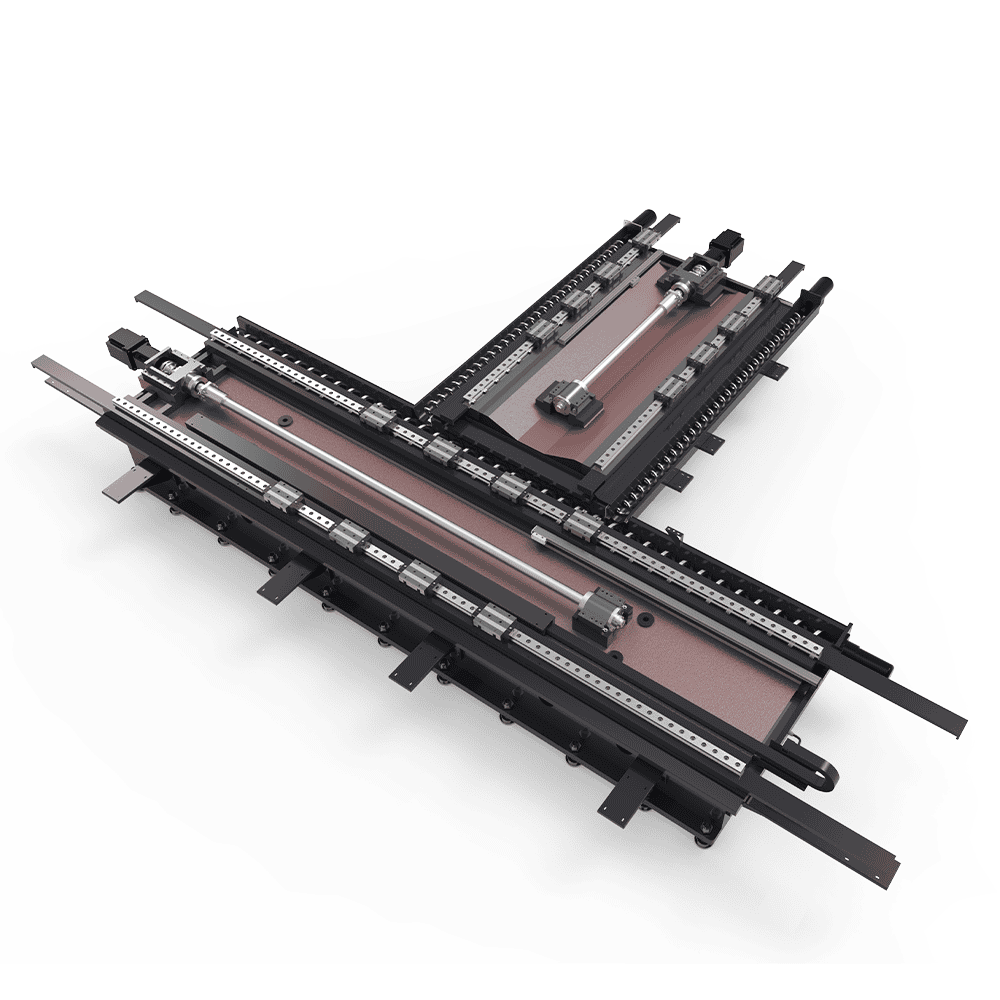

Machine base

The inverted "T"-shaped bed structure ensures sufficient rigidity and stability when running; the whole machine uses ANSYS for static structural force analysis and vibration frequency analysis to ensure rigidity and reduce the vibration increasing the service life.

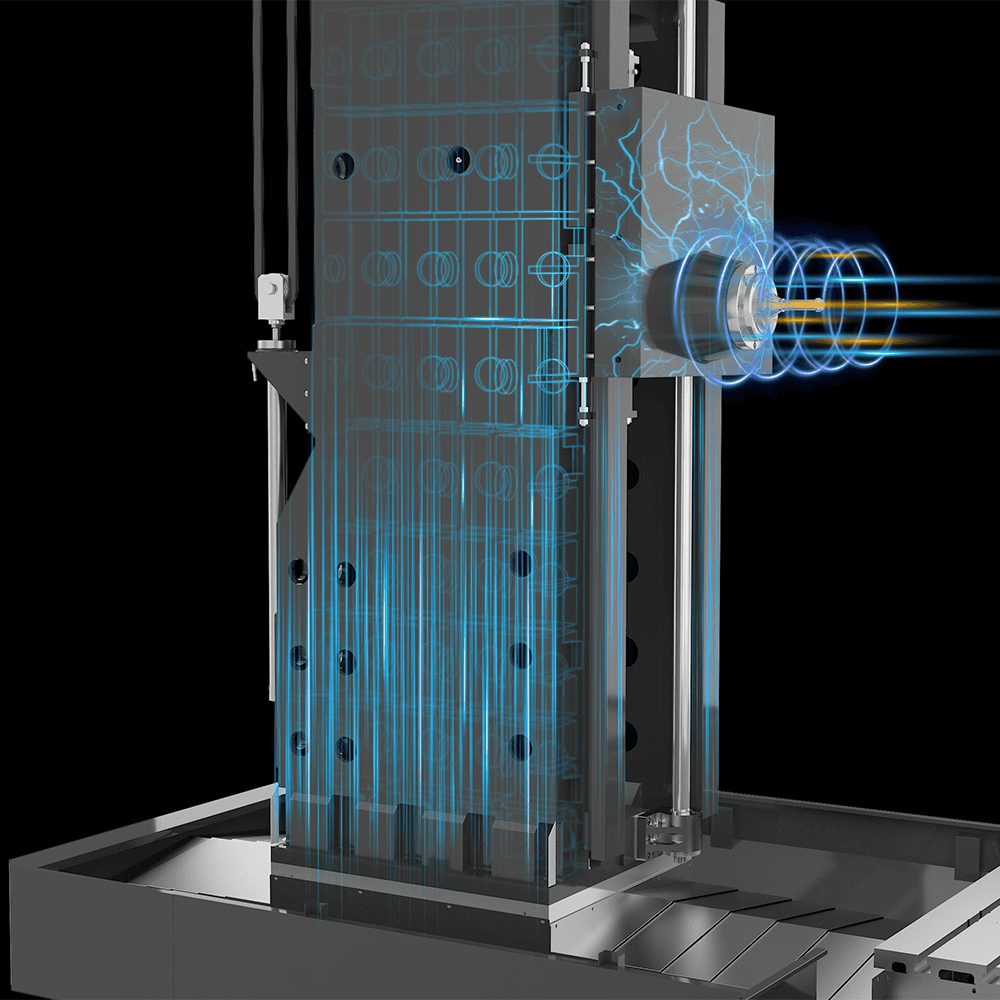

Column

Y-axis overall double-walled moving column structure, high-quality HT-300 casting after secondary annealing treatment, to ensure long-term shock resistance without deformation, excellent precision and stability, and long service life.

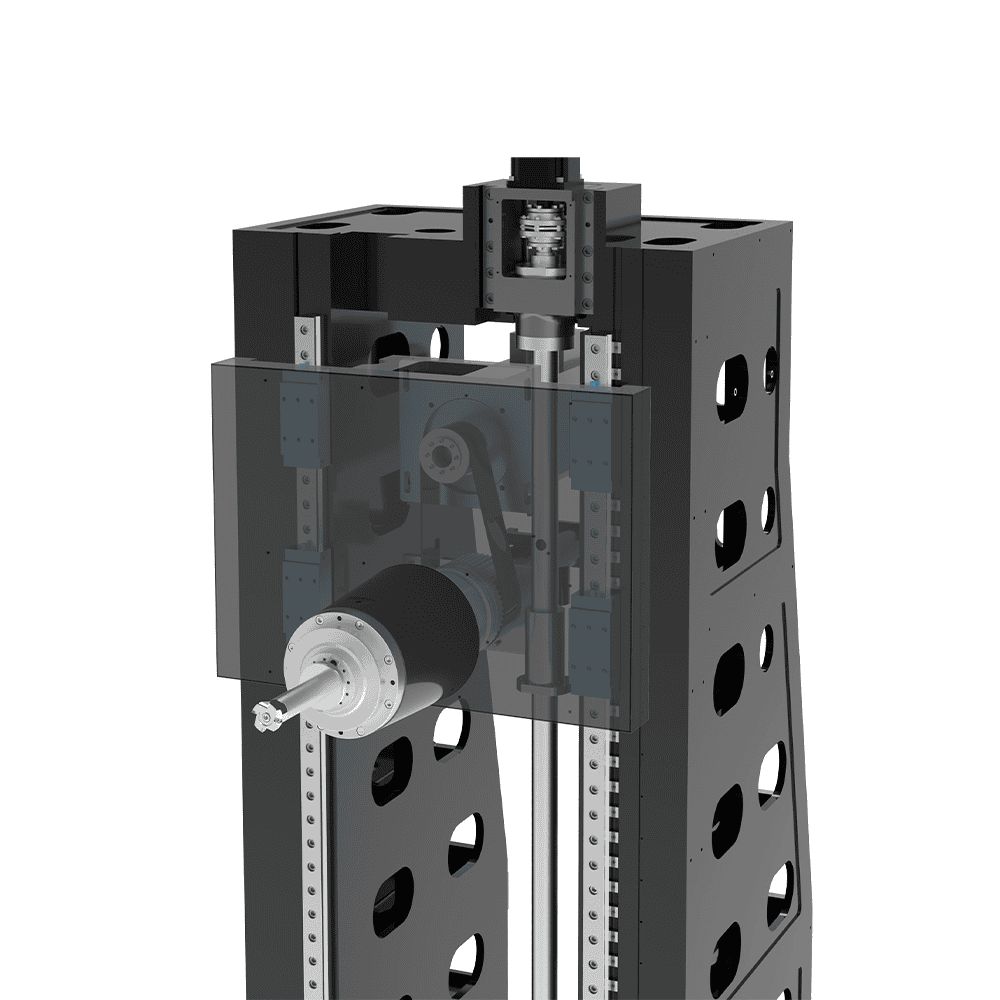

Head

2Pcs 55# extended heavy-duty roller guide rails to ensure shock resistance for heavy cutting; the headstock is equipped with a nitrogen balance system to reduce wear and load on the vertical screw; improve the dynamic response speed and service life of the machine.

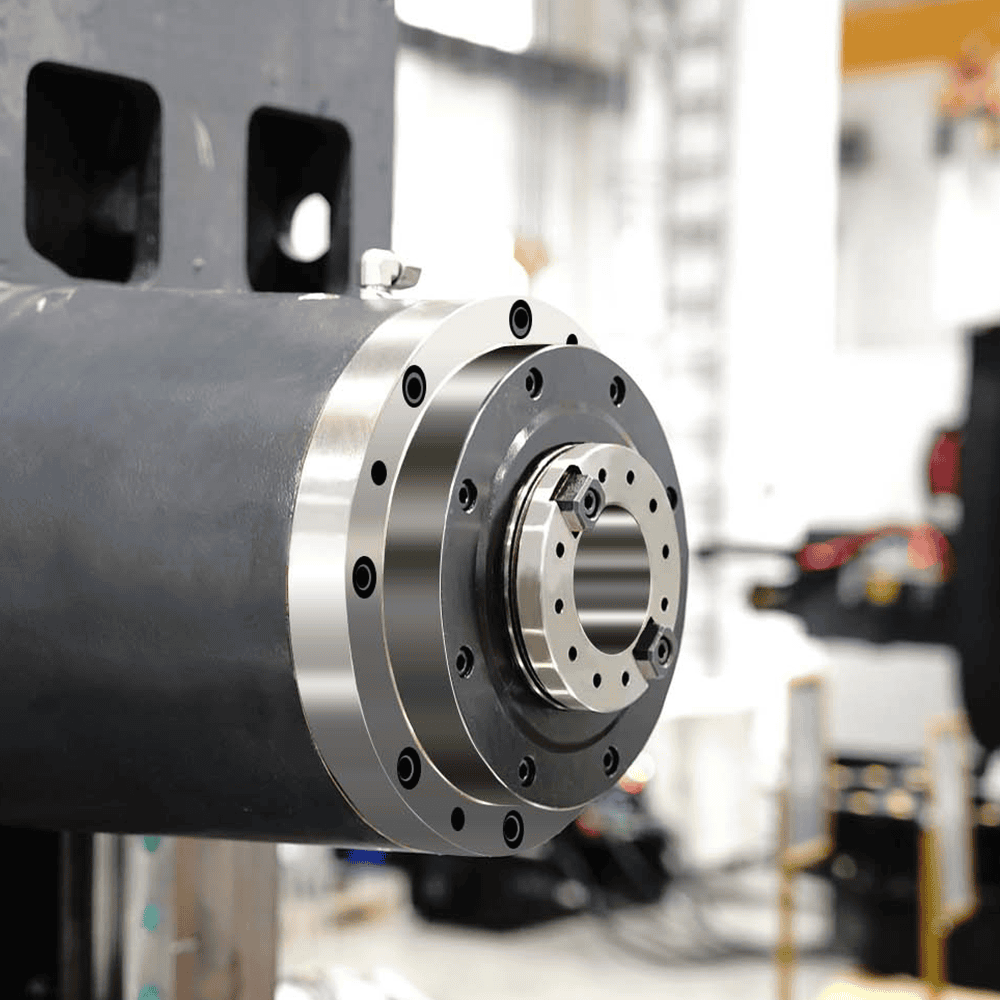

Spindle

Enlarged spindle sleeve with a diameter of φ220mm enhances cutting rigidity. The spindle speed can re ach up to 3000 RPM/6000 RPM. The spindle is equipped with a high-flow cooling system, which can effectively control spindle temperature rise and ensure efficient and stable operation for a long time.

Basic Info

Items		Value	Unit
X/Y/Z-axis	X/Y/Z travel	20001500850	mm
	X/Y/Z Rapid feed rate	10/10/10	mm/min
	X/Y/Z Max. cutting feed rate	8/8/8	mm/min
Worktable	Worktable size	2000*1300	mm
Worktable	Max. load capacity	15000	KG
Accuracy	Positioning accuracy	0.02/1000	mm
Accuracy	Repe at positioning accuracy	0.015/1000	mm
Oil tank capacity	Lubrication oil tank	4	L
Power requirement	Rated voltage	AC380V±10%	V
	Total power	50	KW
	Air pressure	0.6-0.8	Mpa
Size & weight	Machine net weight	20000	KG
Size & weight	Machine space	5000*5355	mm

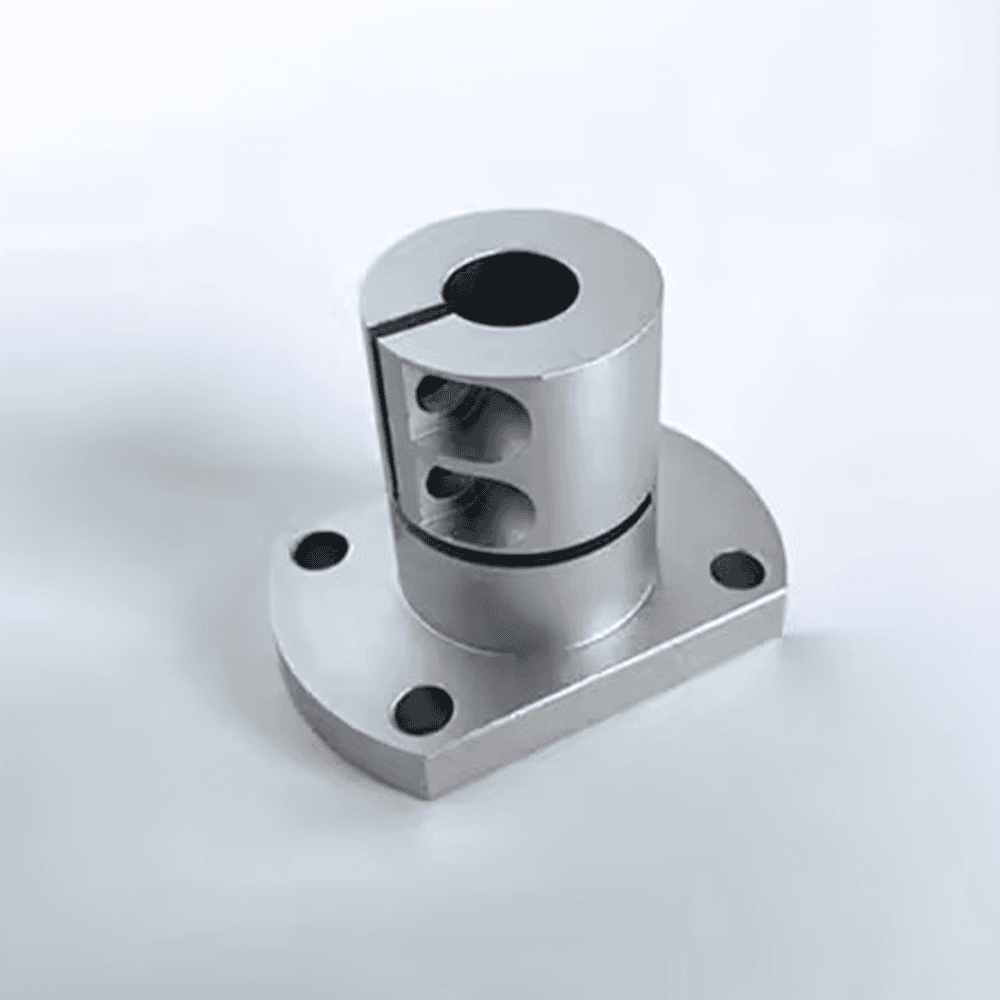

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

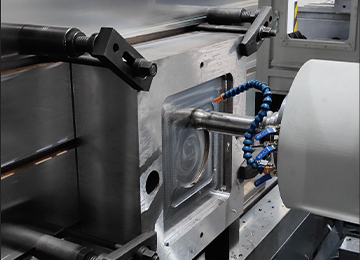

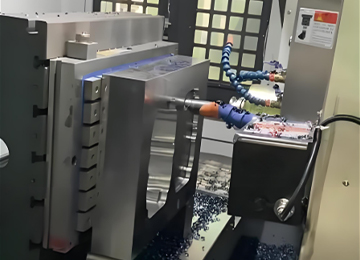

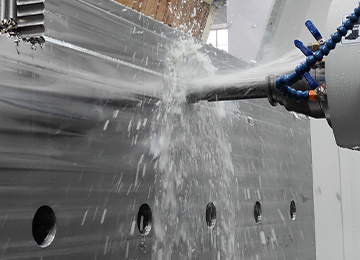

Mold processing

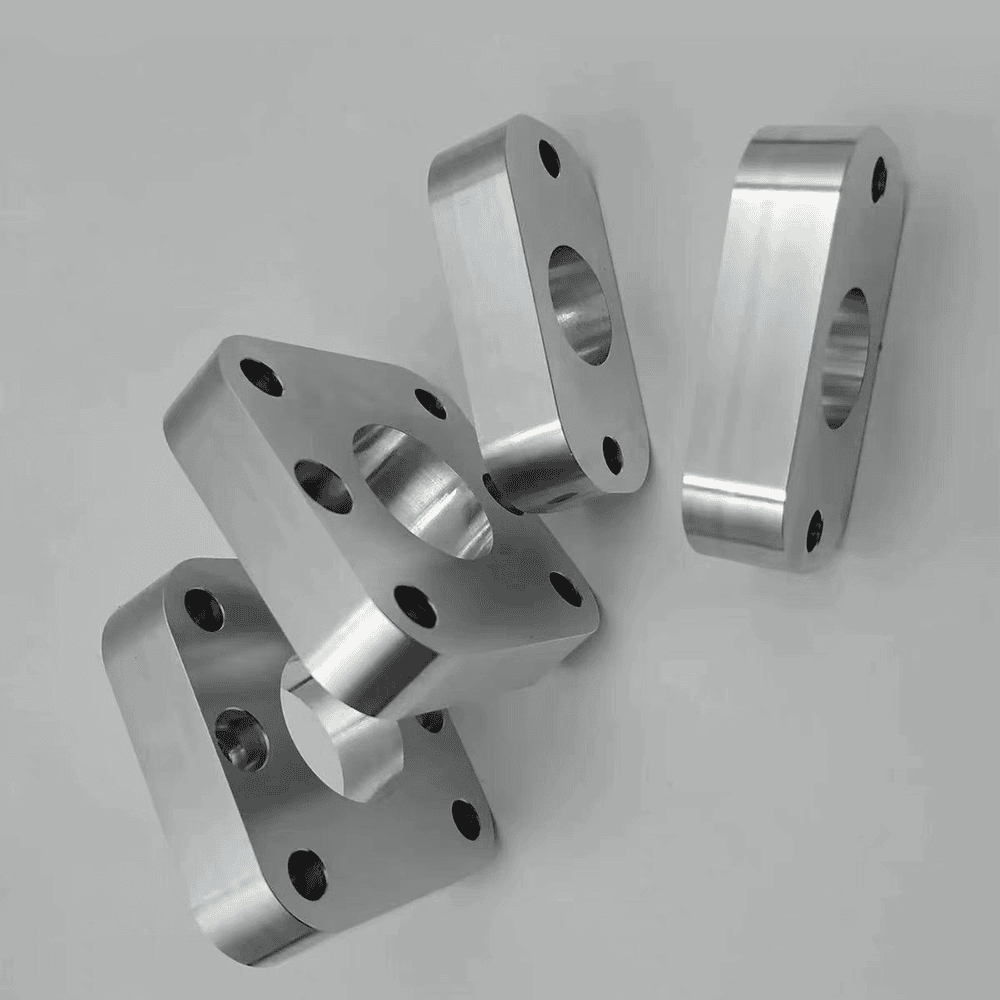

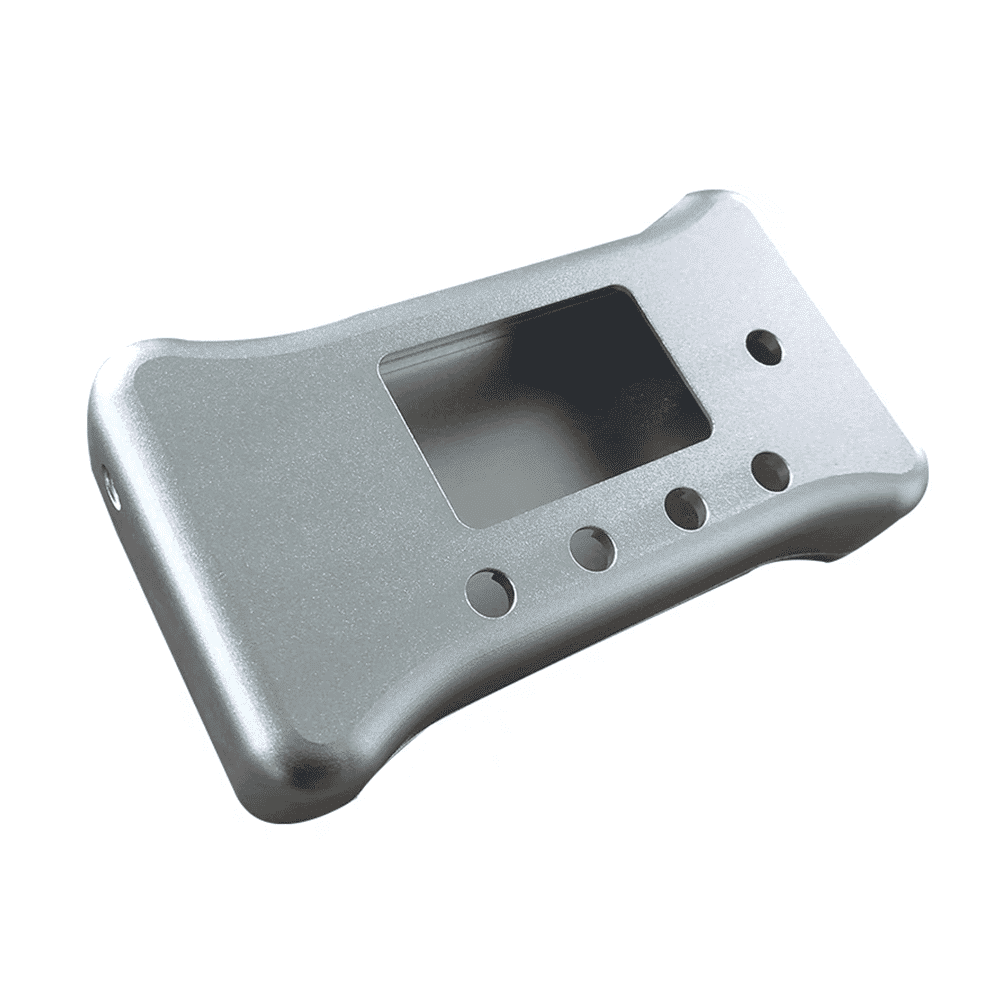

Aluminum processing

Semiconductor accessory

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.
