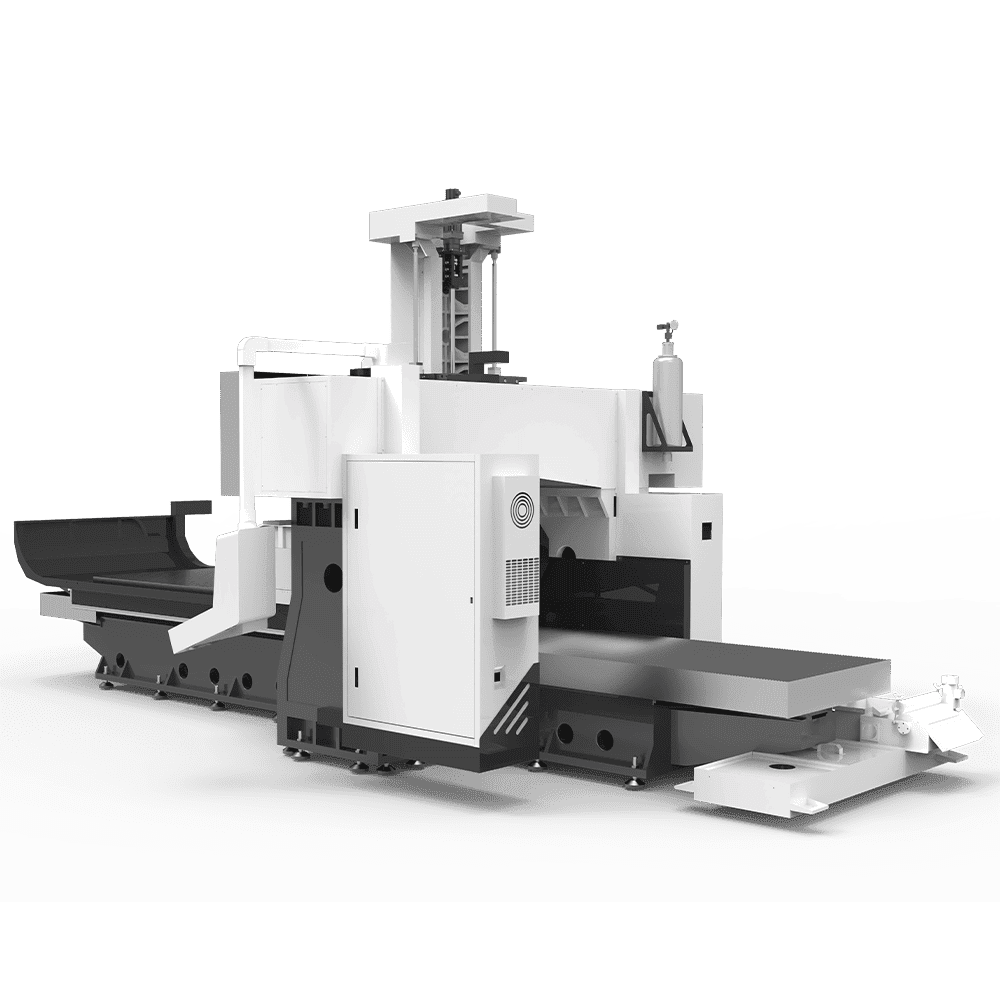

HG-2330NC

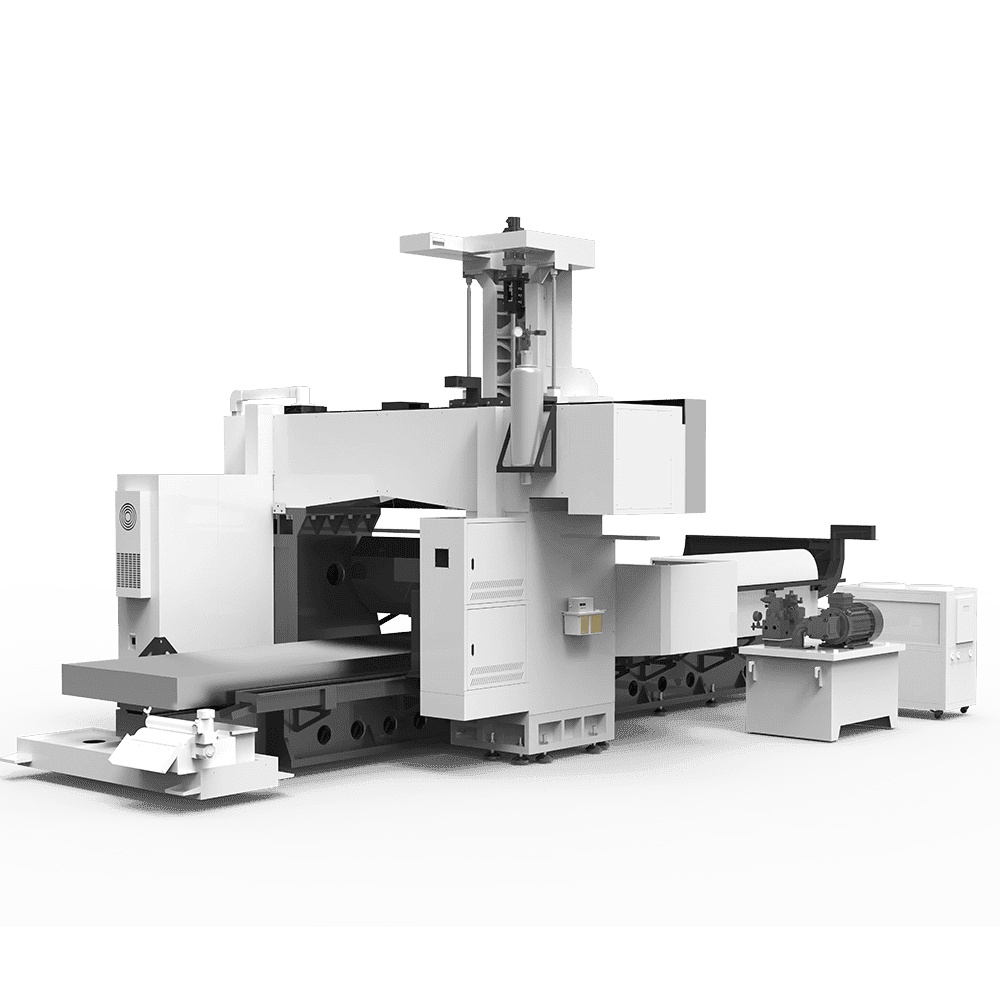

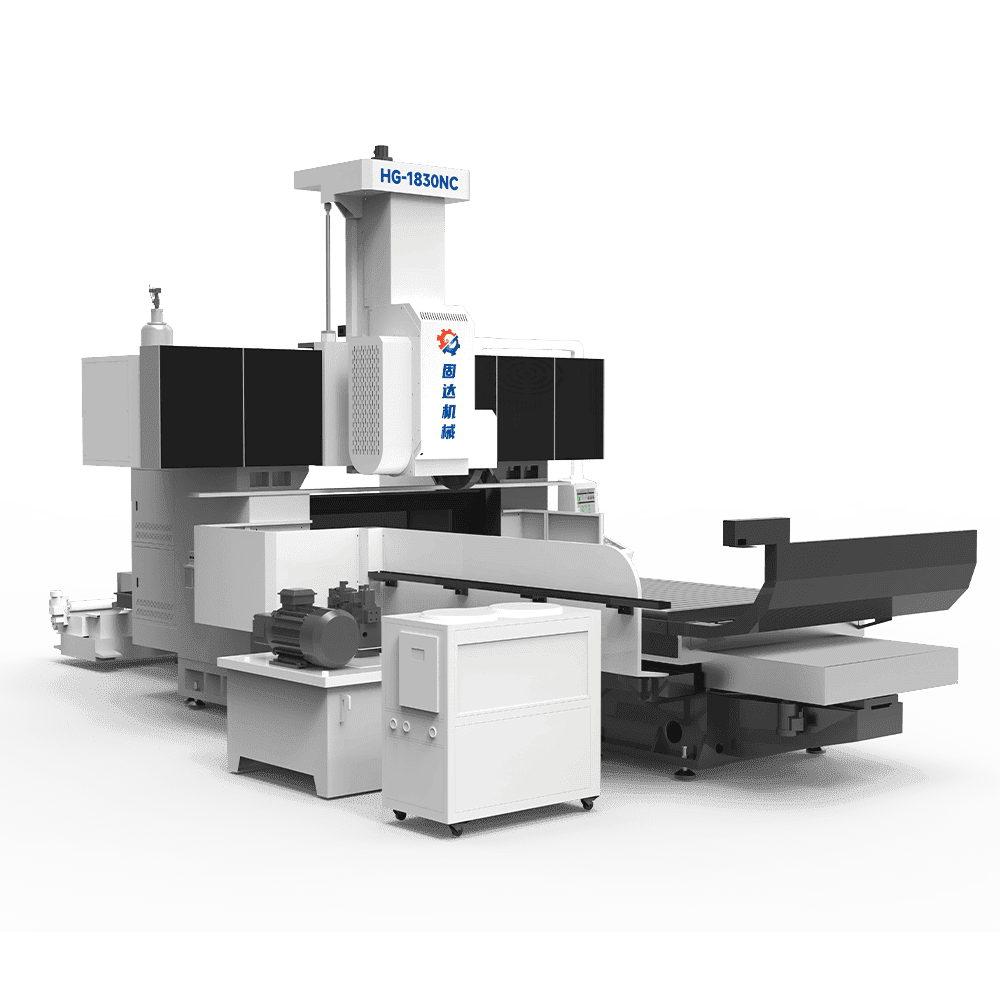

CNC Surface Grinding Machine

Gantry layout, automatic cutting division, automatic grinding; high-rigidity frame structure, high-quality precision castings; surface roughness Ra<0.8um, stable processing, and processing accuracy ≤0.01/1000mm.

Maximum grinding length 3000mm
Maximum grinding weidth 2000mm
Maximum grinding height 700mm
Max. load capacity 10000 KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

CNC Surface Grinding Machine

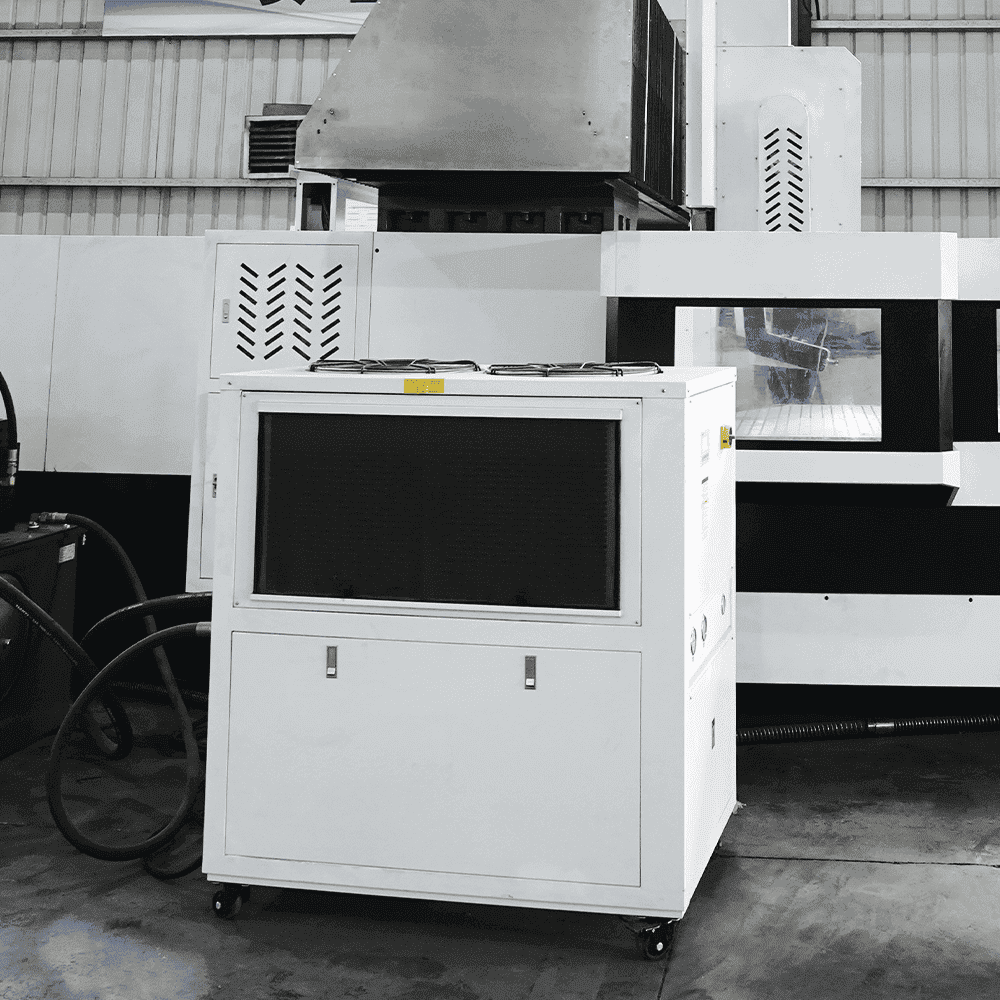

Hydraulic oil cooling system

The independent hydraulic station system is adopted, the transmission is stable, and the independent cooling system ensures that the oil cylinder will not generate heat during work, which will cause accuracy changes.

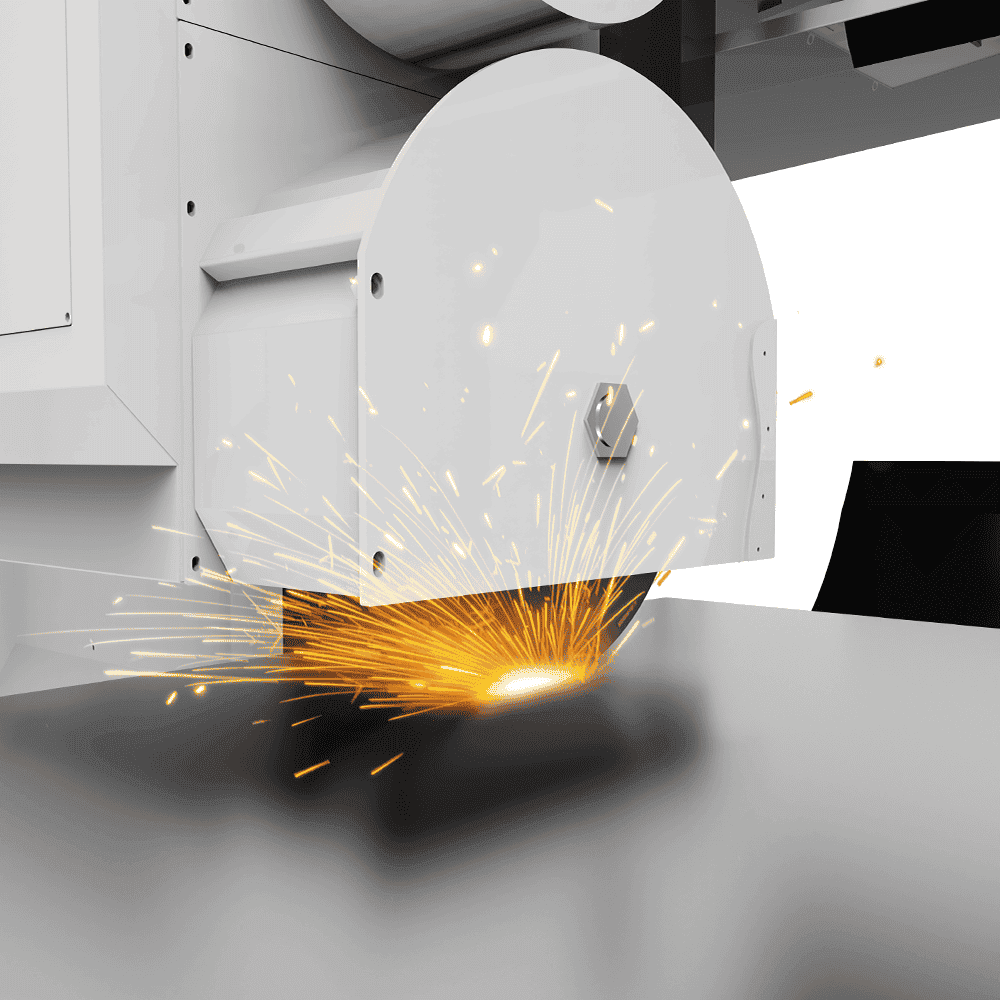

Grinding head transmission

The main shaft of the grinding head adopts a static pressure structure, with stable processing, high motion precision, good shock resistance, and heavy-duty grinding.

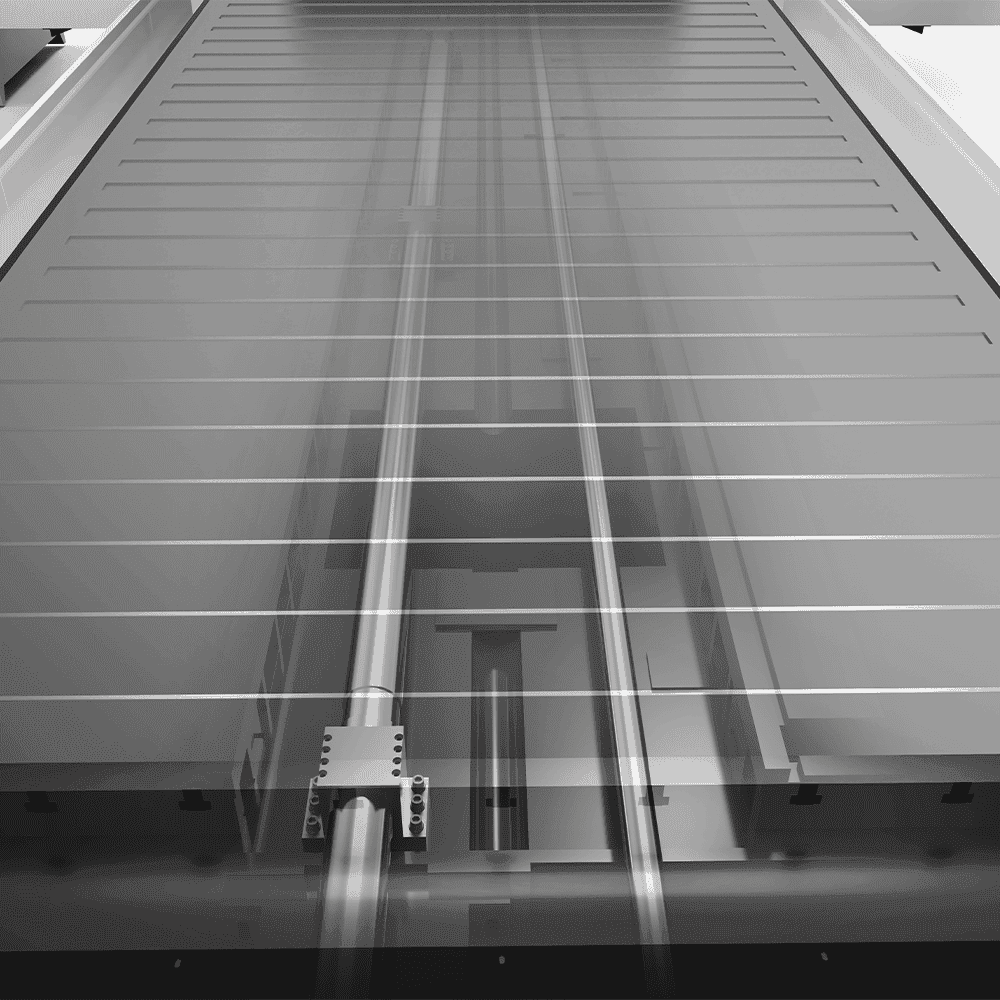

Worktable feed

The worktable is driven by an oil cylinder, a high-power motor, large torque, stepless speed regulation, stable movement, and low noise.

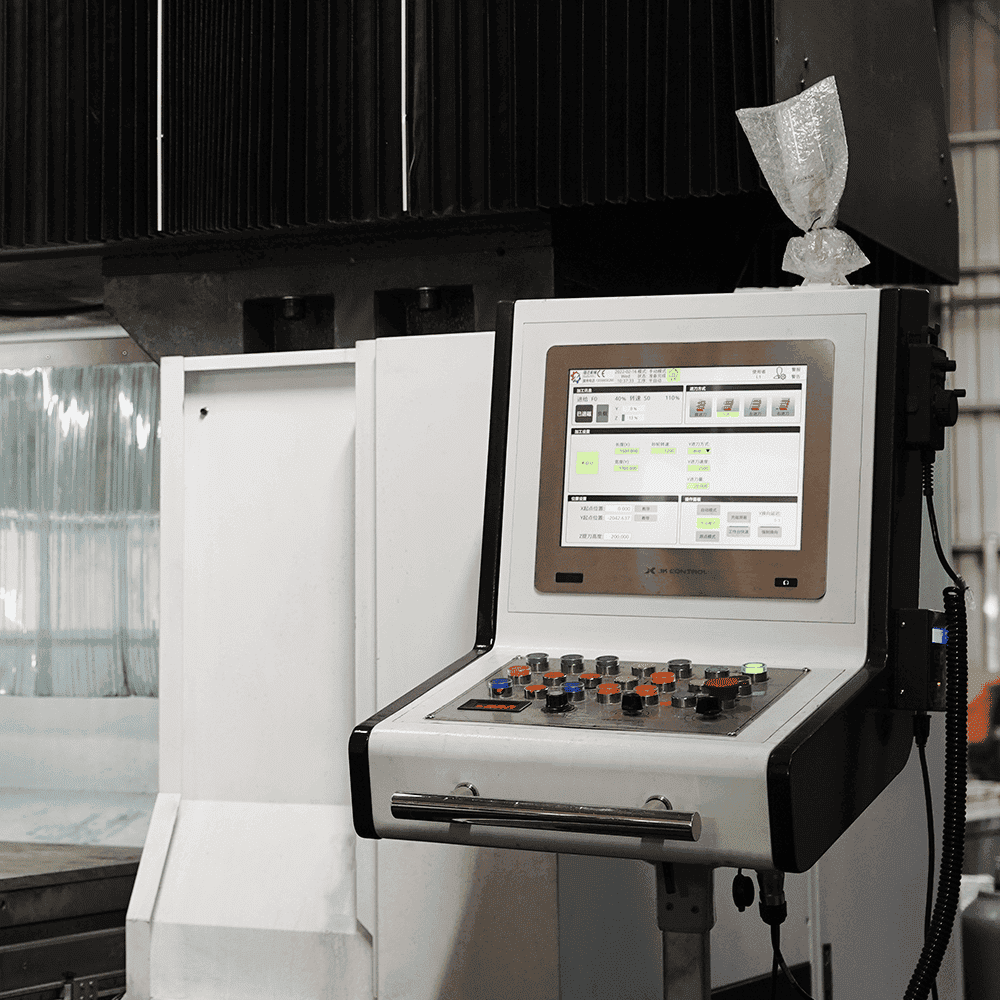

Control system

Matching adopts a mainstream control system and, a new style touch panel, which is easy and efficient to operate, and can realize various automatic grinding workpieces.

Basic Info

Items	Value
Max.grinding capacity	3000*2000mm
Max.grinding height	700mm
Worktable size	3000*1800mm
Max.load capacity	10000Kg
T-slot size	28*180mm
Spindle motor power	22kW
Spindle speed	1400rpm
Grinding wheel size	50020375mm
X axis rapid feed rate	5-28m/min
Machine size	1001850404700mm
Machine weight	About 26000Kg

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,Asiatools Machinery gets you going!

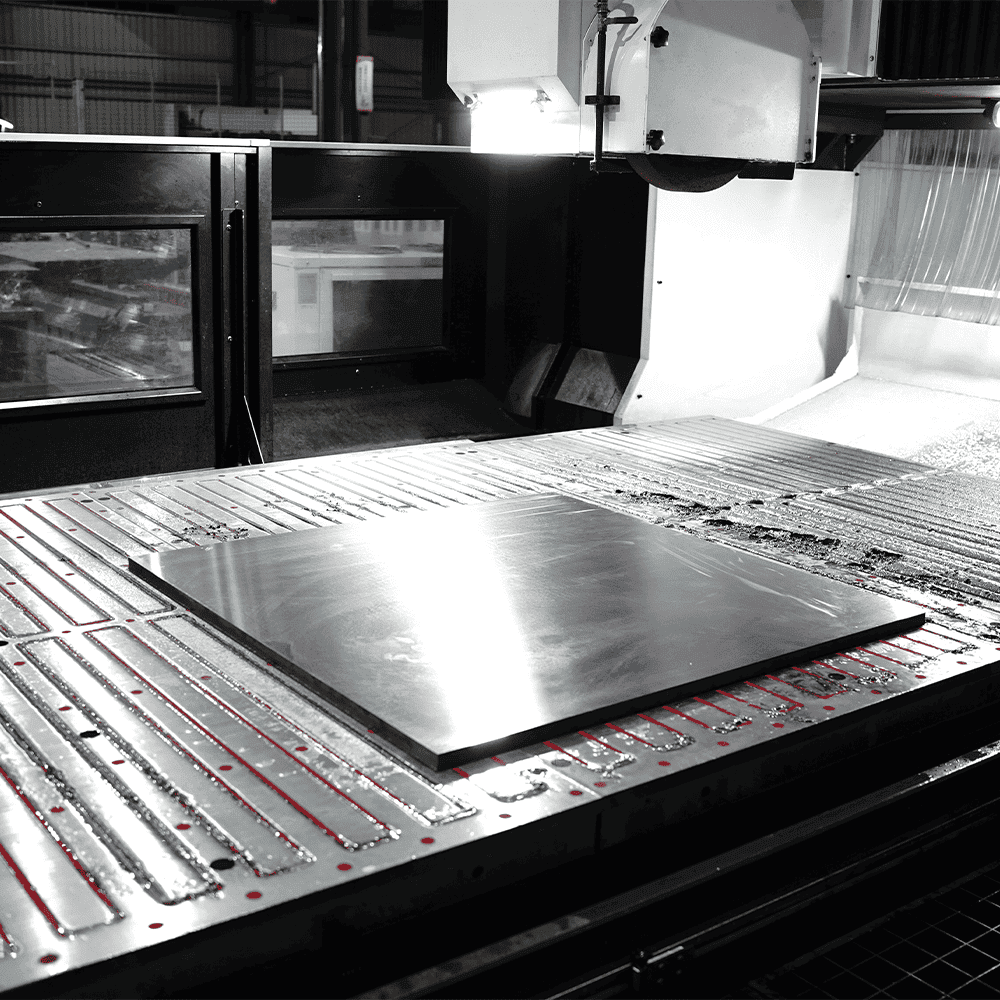

Custom（ steel）plate

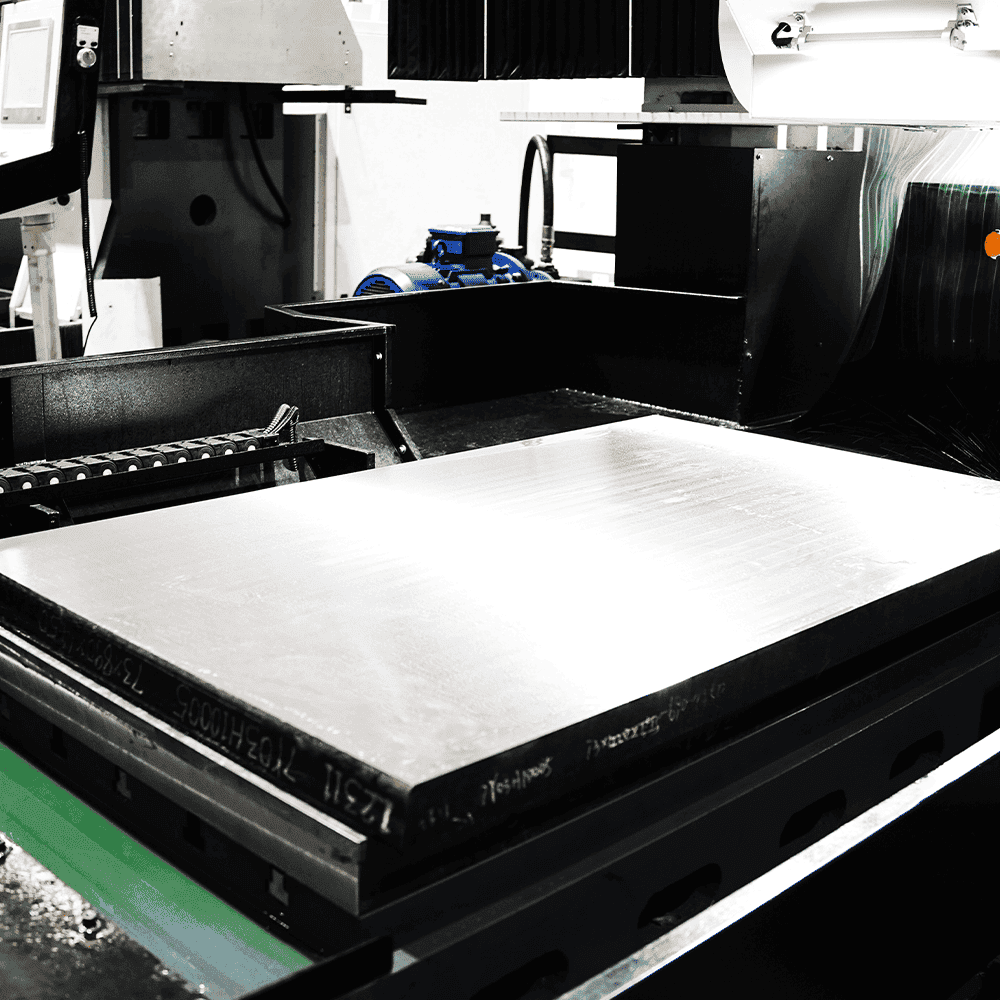

Machined plate

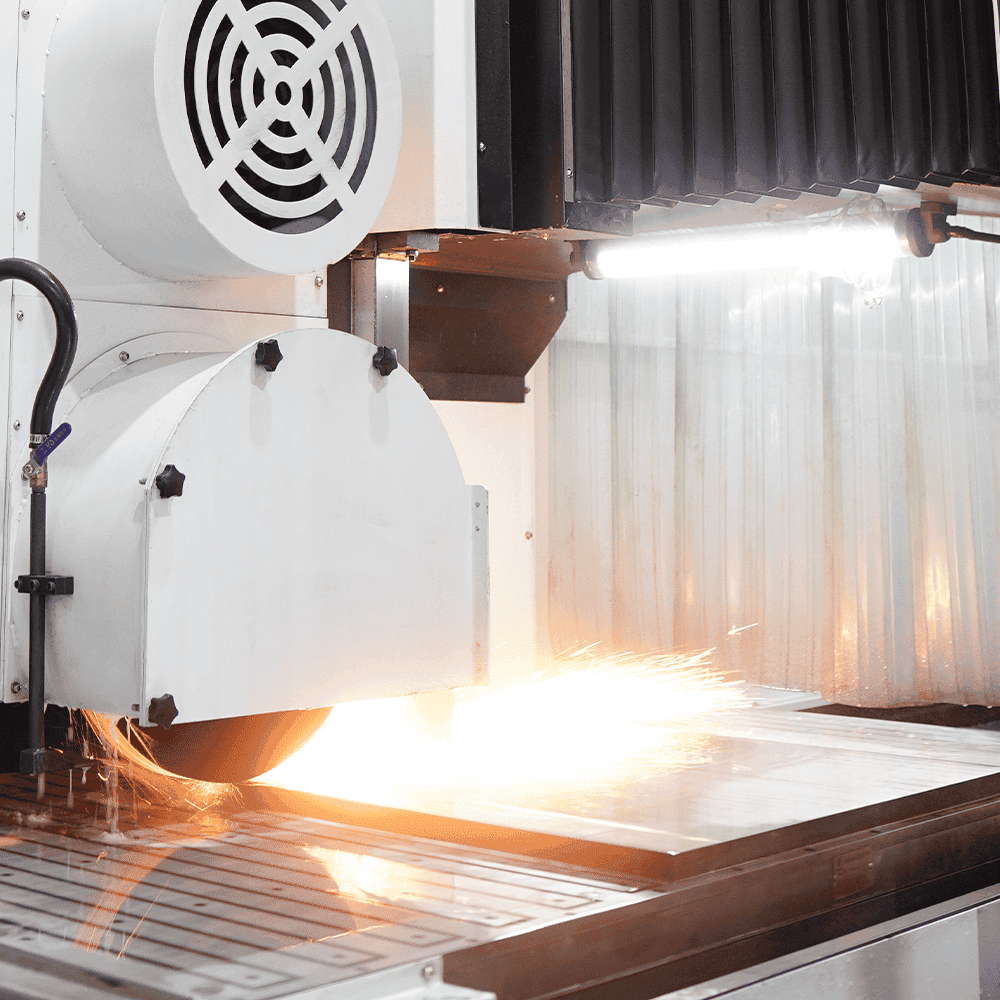

Machining plate

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
