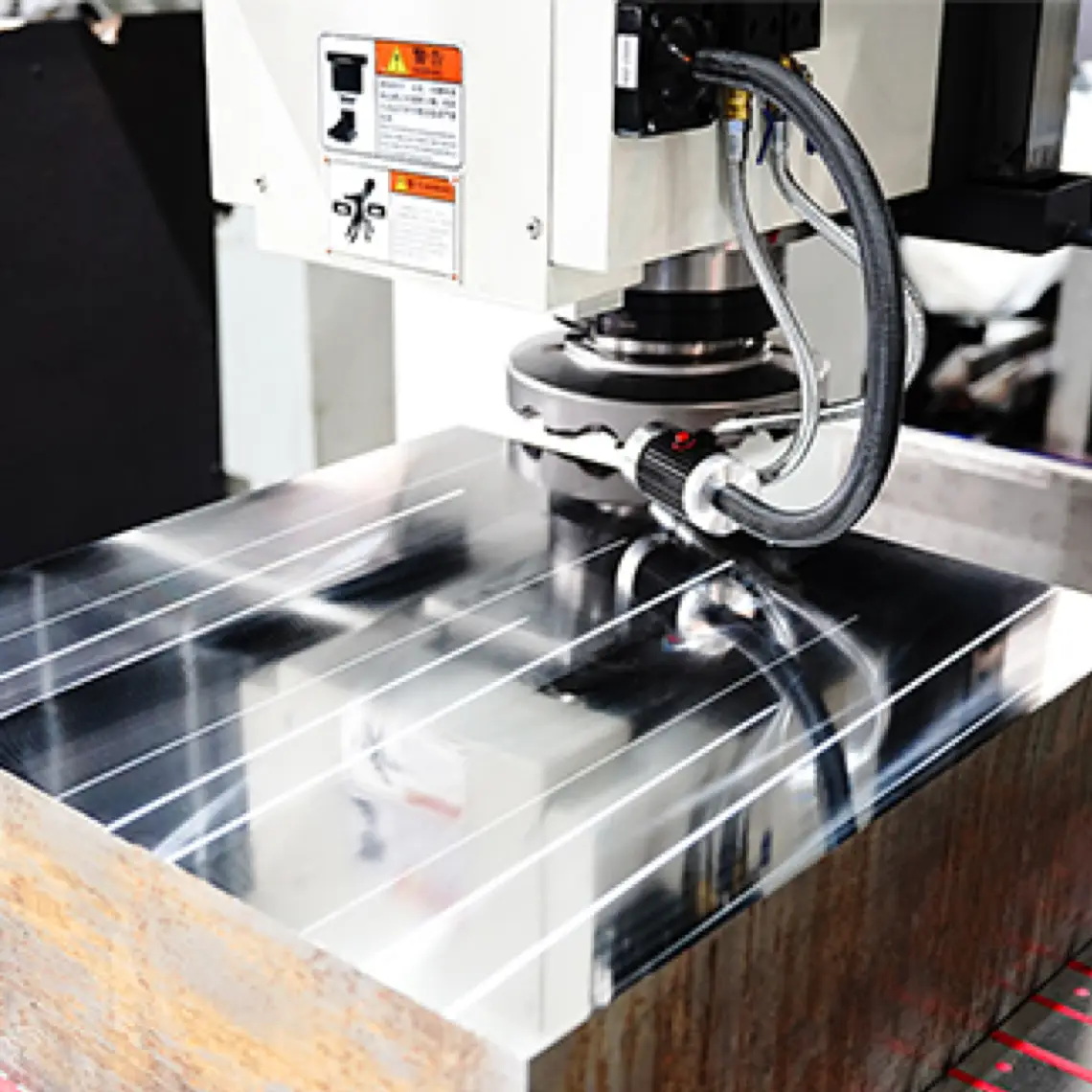

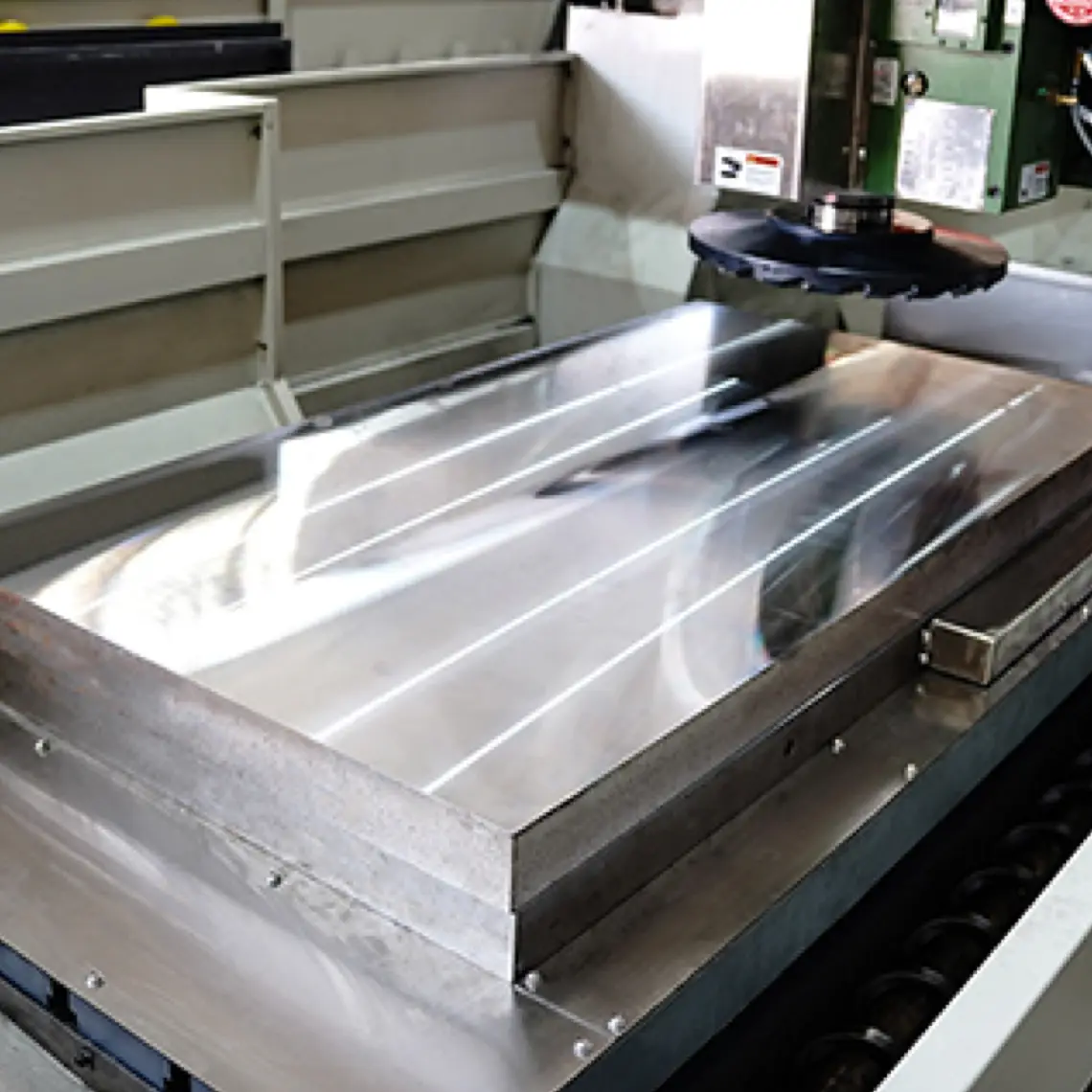

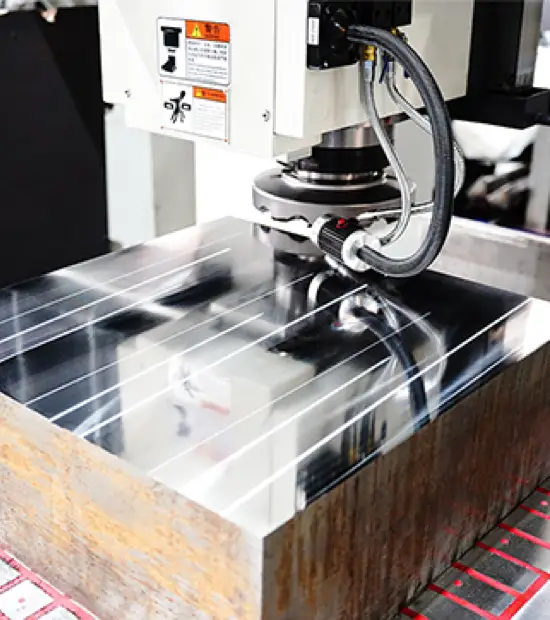

ASIATOOLS CNC Plate Milling Machine Series features a bridge-like structure (the gantry) - a horizontal beam fixed on twin columns - delivering high precision and stability for machining steel plates and non-ferrous metal materials.It offers fully automated operation and key customization options:

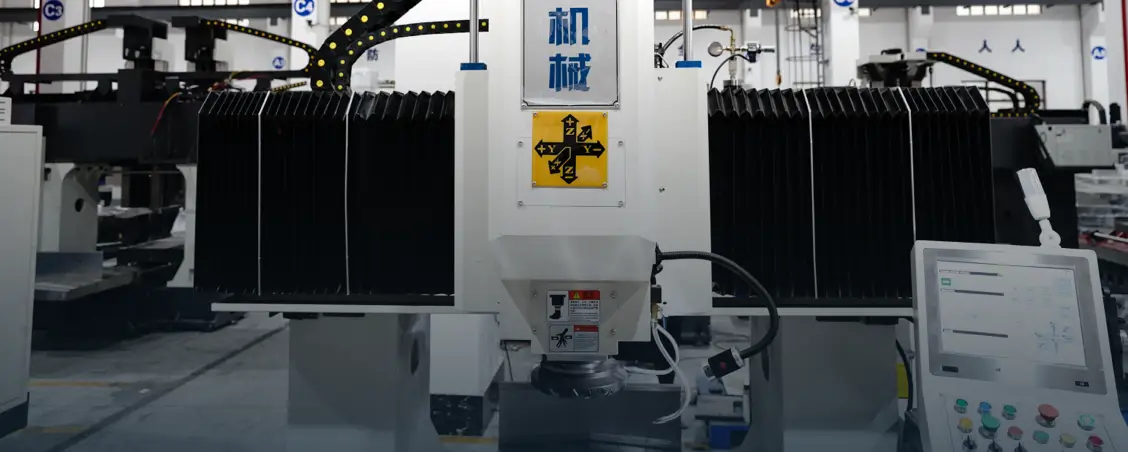

Gantry-style structure with twin columns ensures superior rigidity and vibration damping during heavy-duty operations.

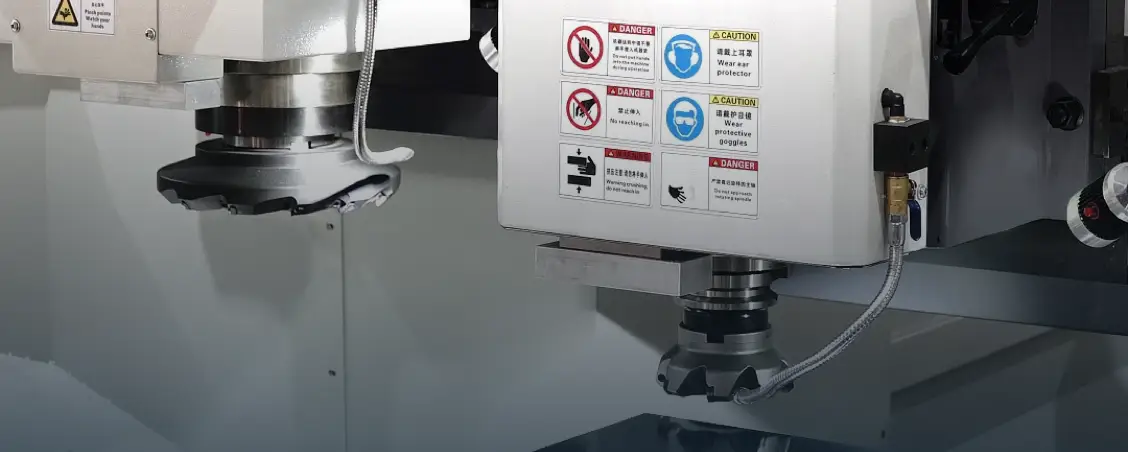

Modular design allows multiple configurations to match different production needs.Options include:

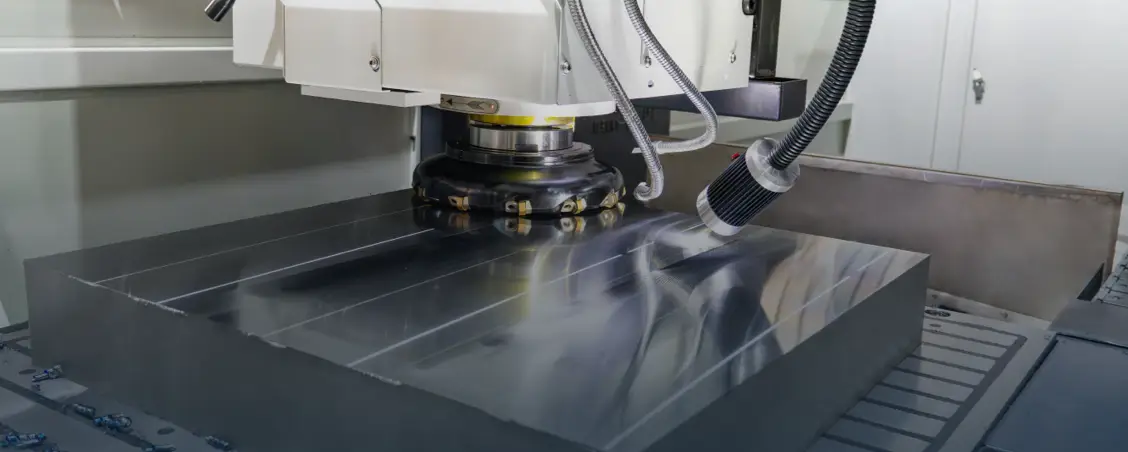

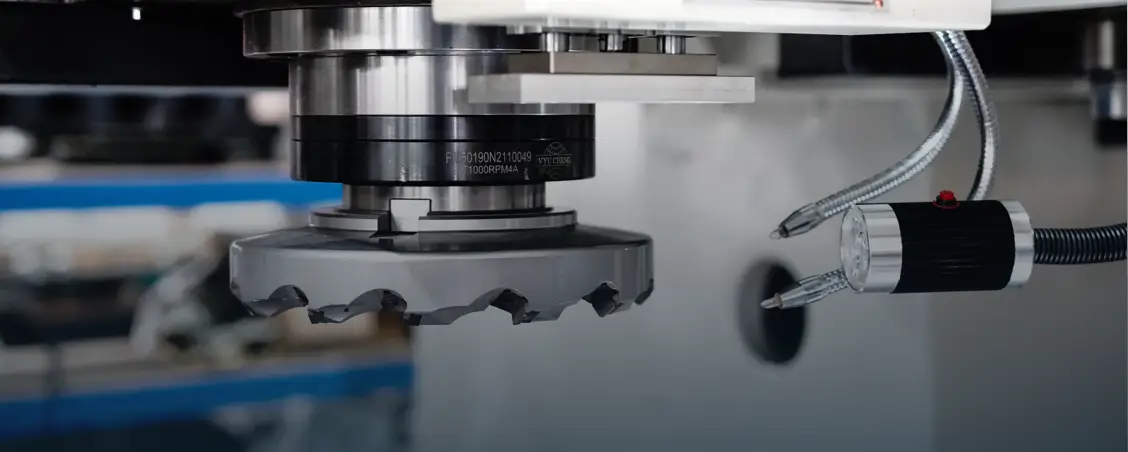

High-torque spindle designed for aggressive material removal and stable milling performance.

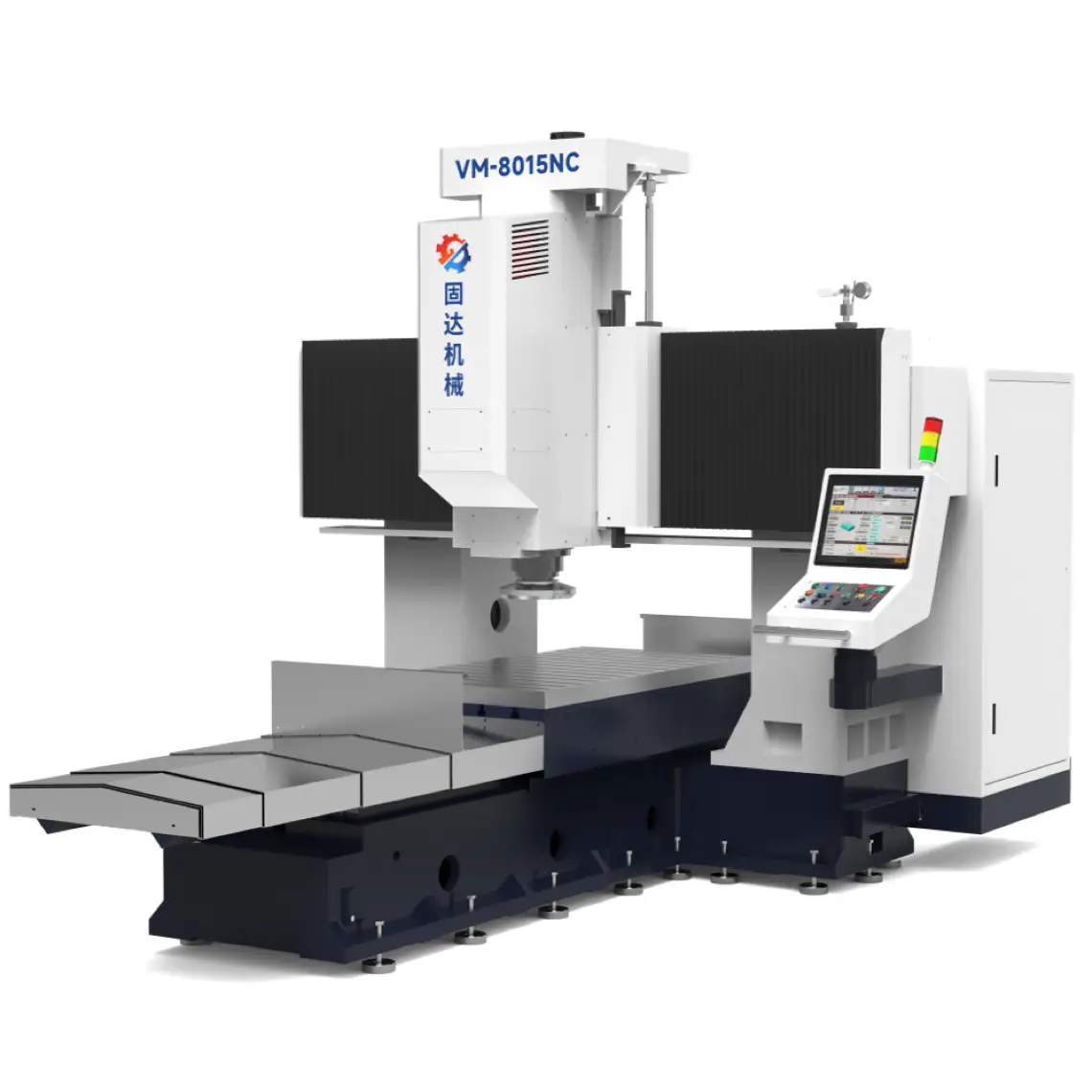

| Model | VM-8015NC |
|---|---|
| Machining capacity | 1500*800*290/350/450mm |
| Columns net width | 1300mm |
| Worktable size | 1500*800mm |
| Max.load capacity | 4000Kg |
| T-slot size | 22*140mm |
| Spindle motor power | 22kW |
| Spindle speed | 50-500rpm |
| Cutter diameter | φ250mm |
| X/N/Z axis rapid feed | 6000*6000*3000mm/min |
| Machine size | 4650*2700*3300mm |
| Machine weight | About 9000Kg |
Our machine portfolio offers the perfect fit for your work - from small parts to large-scale workpieces, ensuring you have the right capabilities for any project.
| Model | Cutter diameter | Processing capacity | Worktable size | |
|---|---|---|---|---|
| VM-6010NC | φ200mm | 1000*600*260mm | 1000*600mm | |
| VM-8015NC | φ250mm | 1500*800*290/350/450mm | 1500*800mm | |
| VM-1320NC | φ250mm | 2000*1000*290/350/450mm | 2000*1000mm | |
| VM-1520NC | φ250mm | 2000*1200*500mm | 2000*1200mm | |
| VM-1525NC | φ250mm | 2500*1200*500mm | 2500*1200mm | |
| VM-1825NC | φ250mm | 2500*1400*600mm | 2500*1400mm | |
| VM-1830NC | φ250mm | 3000*1400*600mm | 3000*1400mm | |
| VM-2330NC | φ250mm | 3000*1800*600mm | 3000*1800mm | |
| VM-2340NC | φ250mm | 4000*1800*600mm | 4000*1800mm | |
| VM-6010NC (Dual-head) | φ250mm/φ125mm | 600*1000*250mm | 1000*600mm | |
| VM-8015NC (Dual-head) | φ250mm/φ125mm | 1500*800*350/500mm | 1500*800mm | |
| VM-1320NC (Dual-head) | φ250mm/φ125mm | 2000*1000*350/500mm | 28000*1000mm | |
| VM-1520NC (Dual-head) | φ250mm/φ125mm | 2000*1200*600mm | 2000*1200mm | |
| VM-1525NC (Dual-head) | φ250mm/φ125mm | 2500*1200*600mm | 2500*1200mm | |
| VM-1825NC (Dual-head) | φ250mm/φ125mm | 2500*1400*600mm | 2500*1400mm | |
| VM-1830NC (Dual-head) | φ250mm/φ125mm | 3000*1400*600mm | 3000*1400mm | |
| VM-2330NC (Dual-head) | φ250mm/φ125mm | 3000*1800*600mm | 3000*1800mm | |

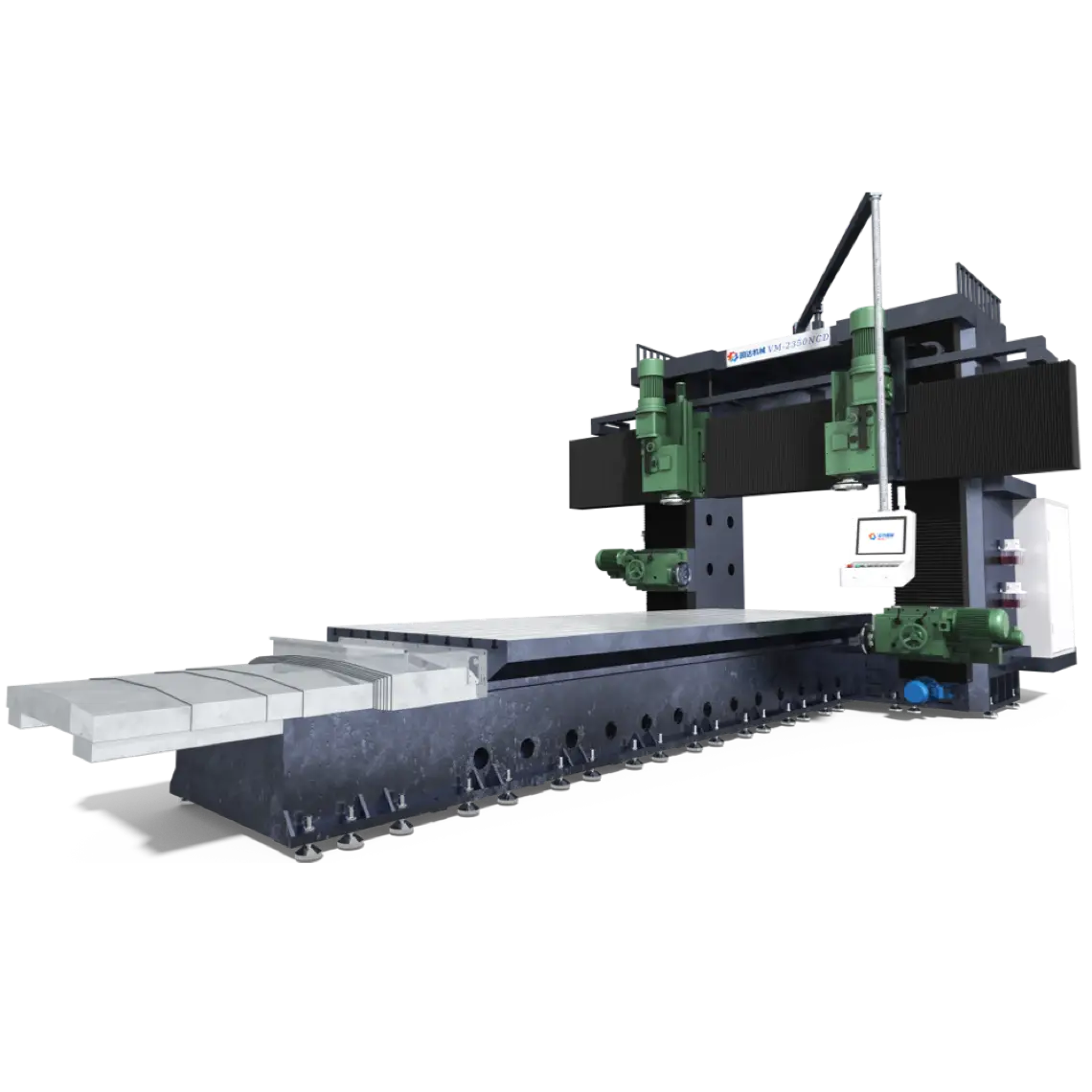

| VM-2340NC (Dual-head) | φ250mm/φ125mm | 4000*1800*600mm | 4000*1800mm |
| Item | Gantry Milling Machine | VMC Machine |
|---|---|---|
| Best For | Large & heavy workpieces | ✔ Small to medium parts |
| Structure | Dual-column gantry design | ✔ Single-column vertical design |
| Rigidity | Very high, ideal for heavy cutting | ✔ Standard rigidity |
| Worktable Size | Large worktable | ✔ Smaller worktable |
| Load Capacity | High | ✔ Limited |
Our partnership with customers continues long after the purchase. We provide comprehensive after-sales services to help you install, operate, and maintain your equipment with confidence.
