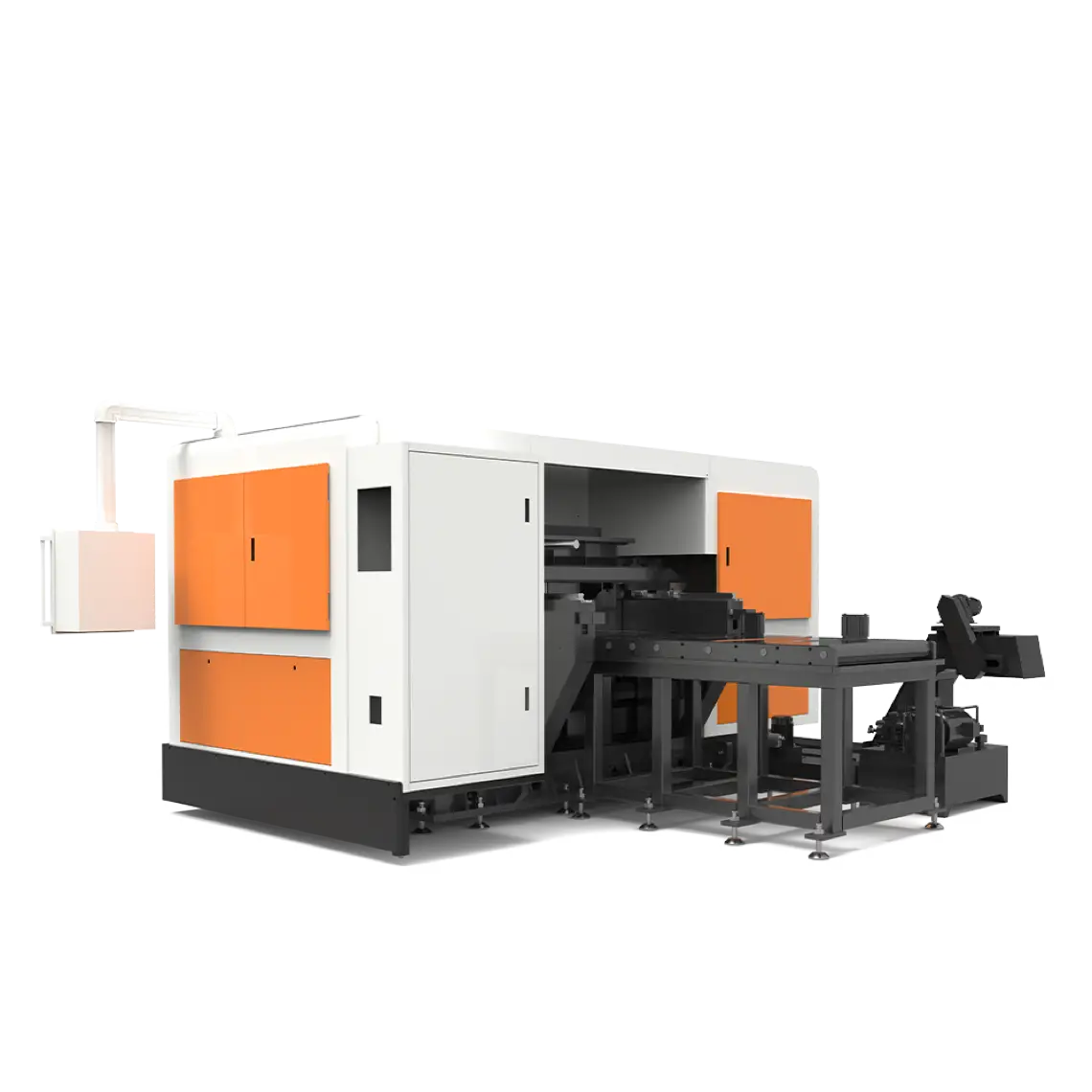

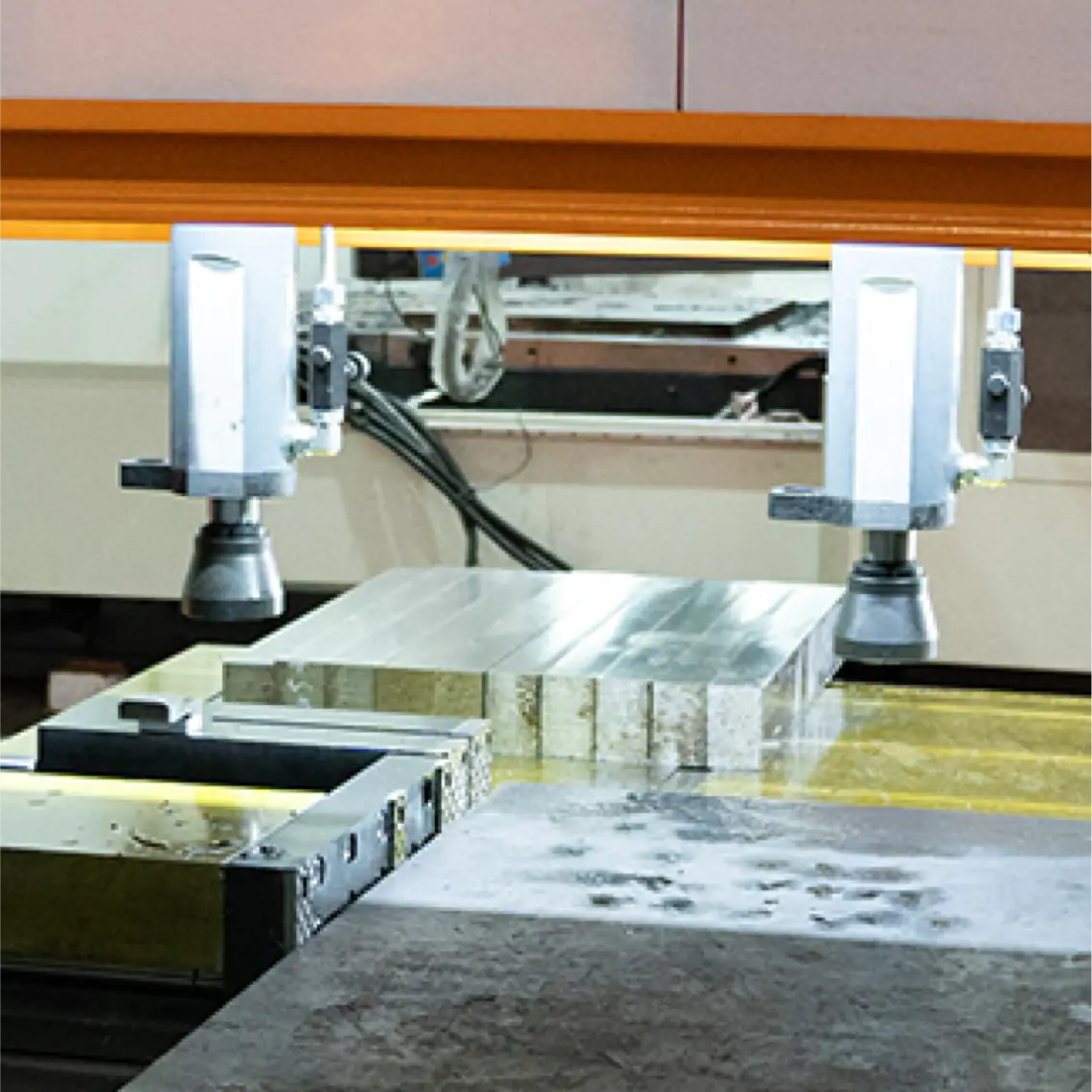

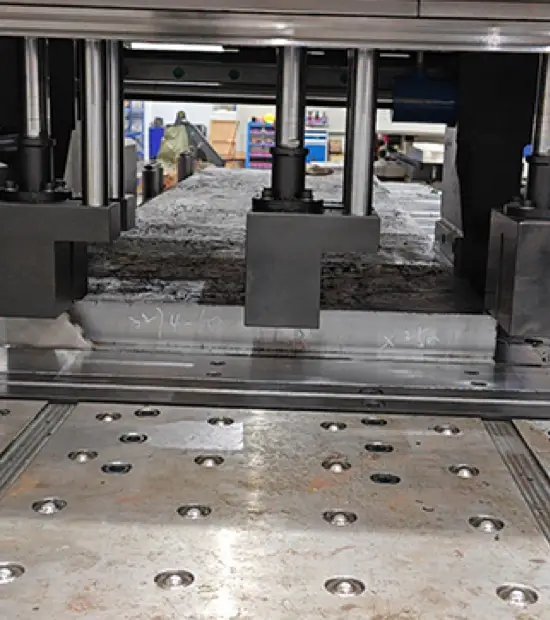

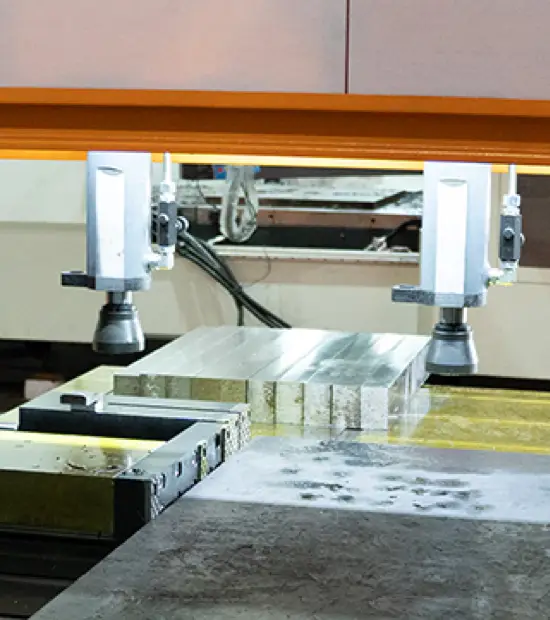

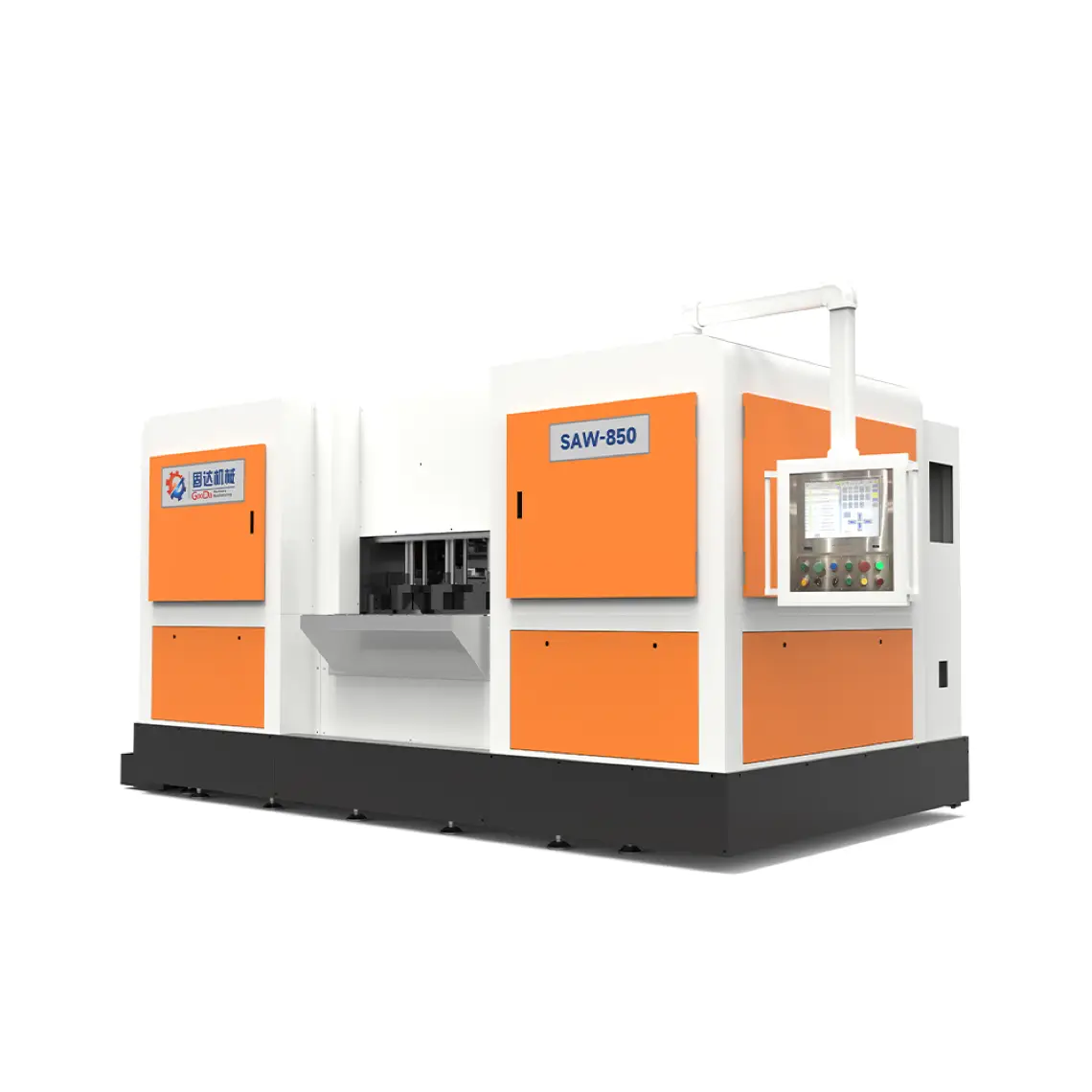

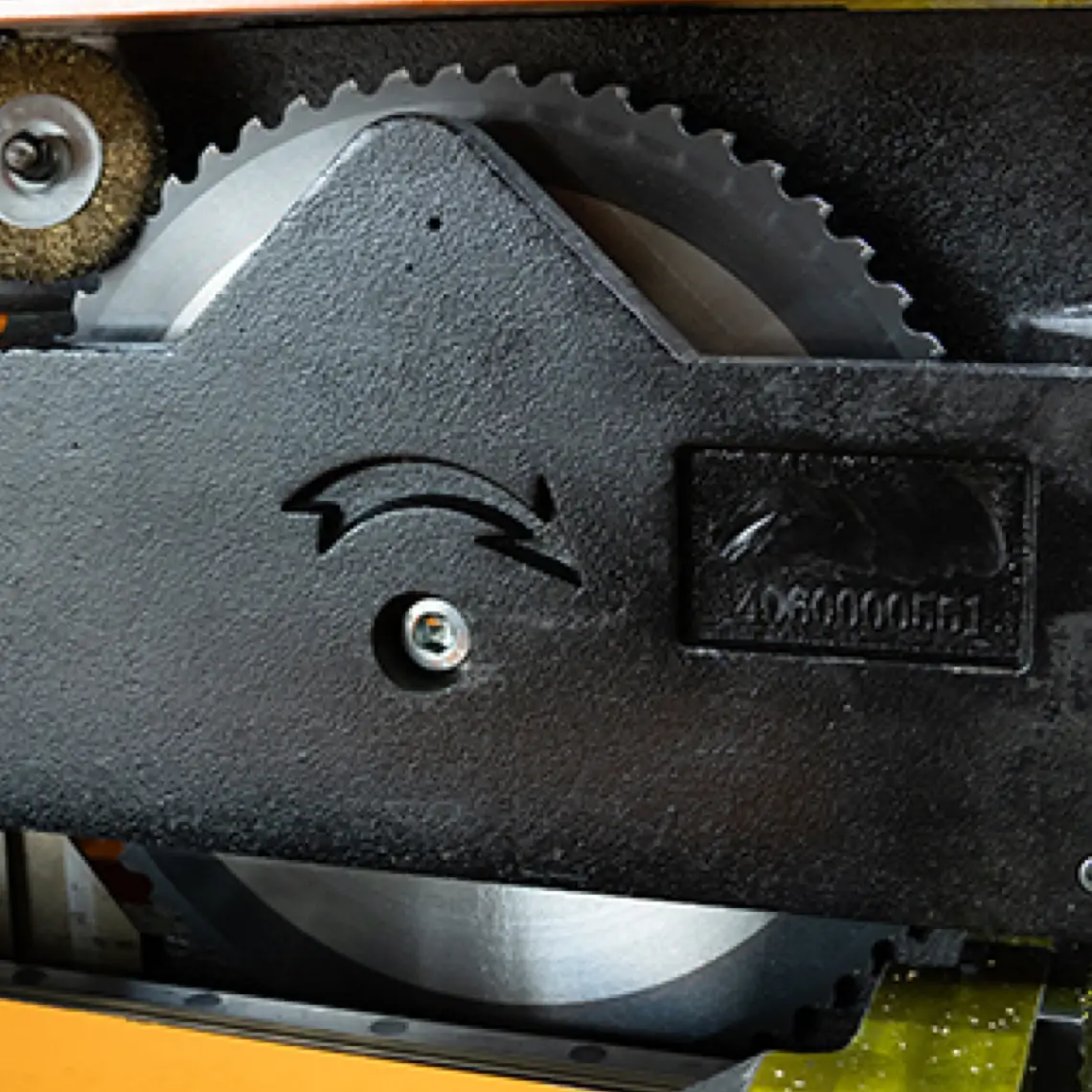

ASIATOOLS' Circular Saw Series uses high-speed carbide saw blade to cleanly cut metal blocks and rods, like high-strength structural steel, tool steel, alloy steel, and wear-resistant steel, the efficient alternative to milling. Its space-saving design is ideal for easy installation and small to medium batch production.

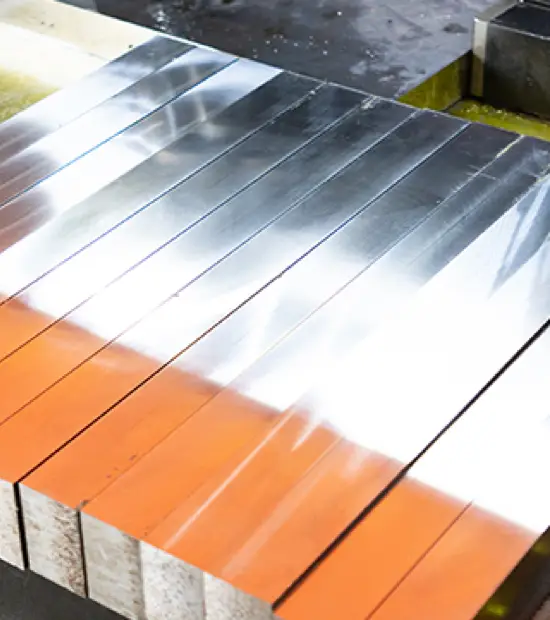

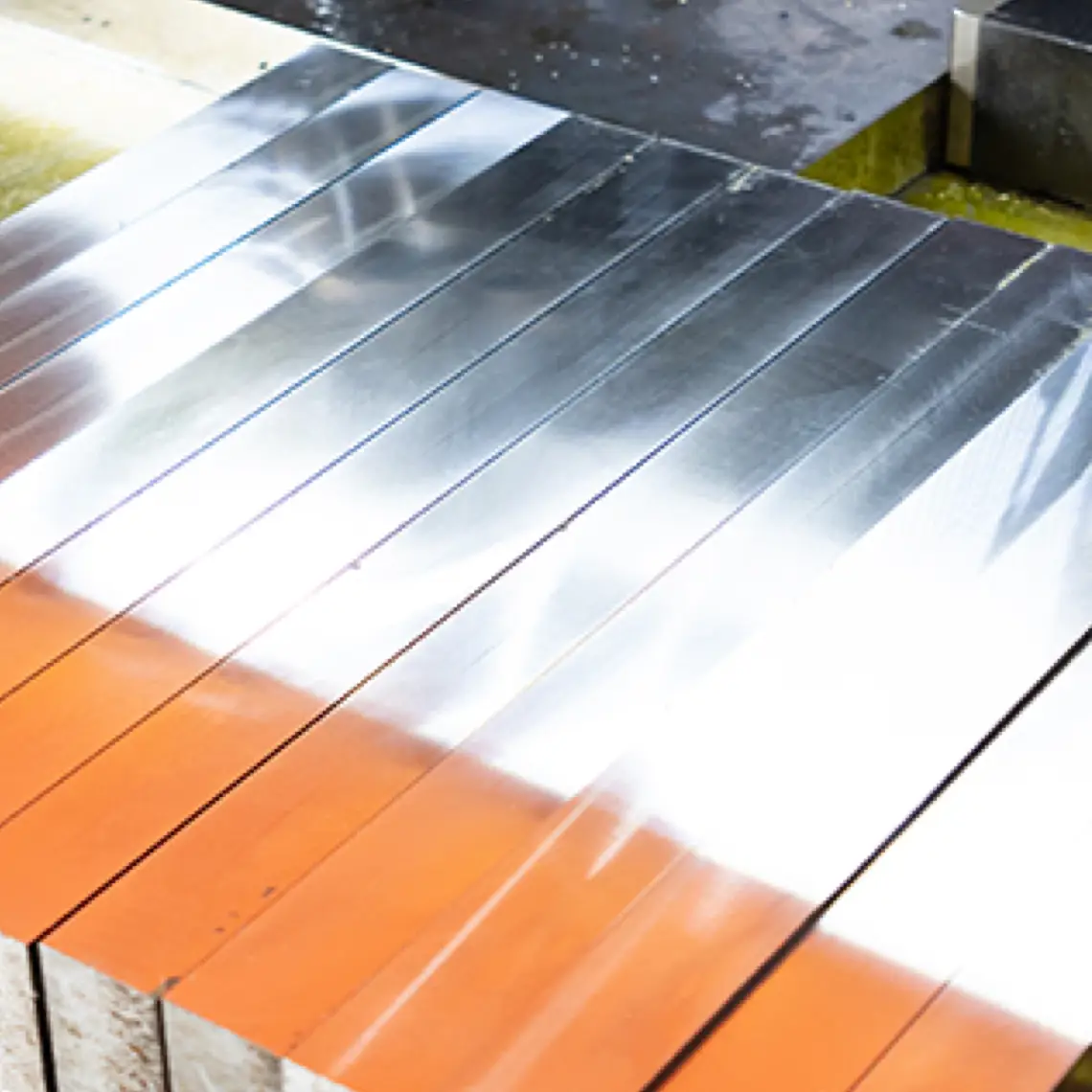

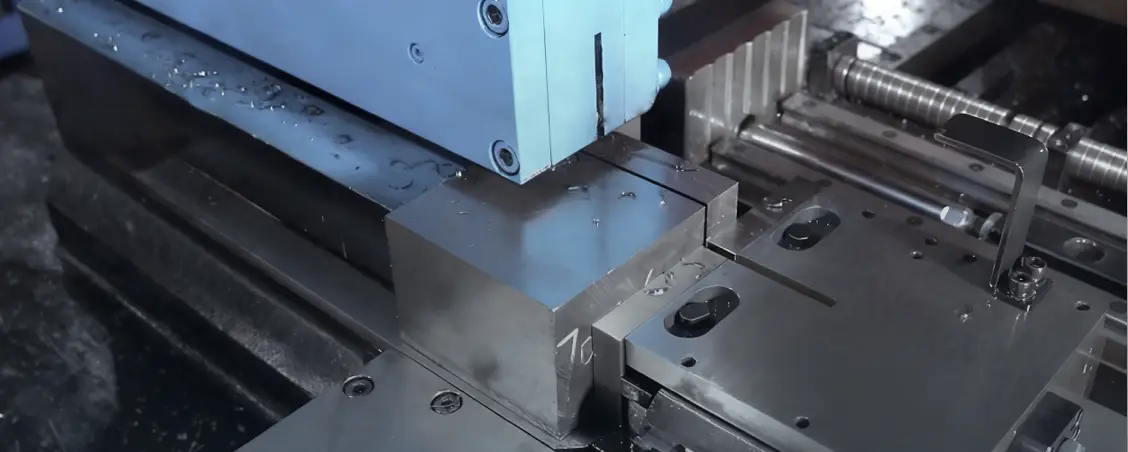

The cut surface is so smooth and flat that it serves as an efficient alternative to milling. This means you can skip the subsequent face-milling operation, saving significant time, machine usage, and labor costs. You get a finished edge straight off the saw.
Circular sawing is significantly faster than traditional band sawing. This machine drastically reduces cycle times, especially for small to medium batch production, allowing you to fulfill orders faster and increase daily throughput without adding more machines.

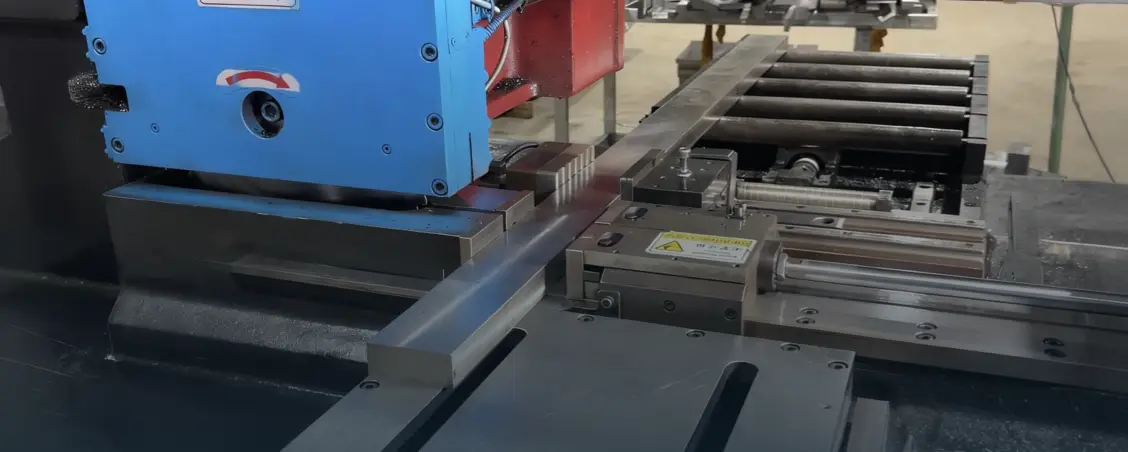

Whether you are cutting thin strips or massive structural blocks, ASIATOOLS circular saw machine handles it all.
The high rigidity ensures straight, accurate cuts with minimal deviation. This allows you to reduce the machining allowance (leave less safety margin), which translates to significant material savings over time, especially when cutting expensive alloys like tool steel.
| Model | PCS-800NC |
|---|---|
| System | LNC System |
| Sawing Width | 0~800mm |
| Sawing Thickness | 10~(100/125)mm |
| Raw Material Length | 2000Kg |
| Raw Material Length | 2500mm |
| Cutting Speed | 0~460mm/min |
| X/Y/Z axis Rapid Move Speed | 4000/4000/4000mm/min |
| Spindle Motor Power (Gear-drive) | 22kW |
| Spindle Speed | 0~120rpm |
| Blade Size (Thickness*Diameter) | 3.0×φ360/φ390/φ460mm |
| Machine Size | 4100×3500×2200mm |
| Total Weight | 7000Kg |

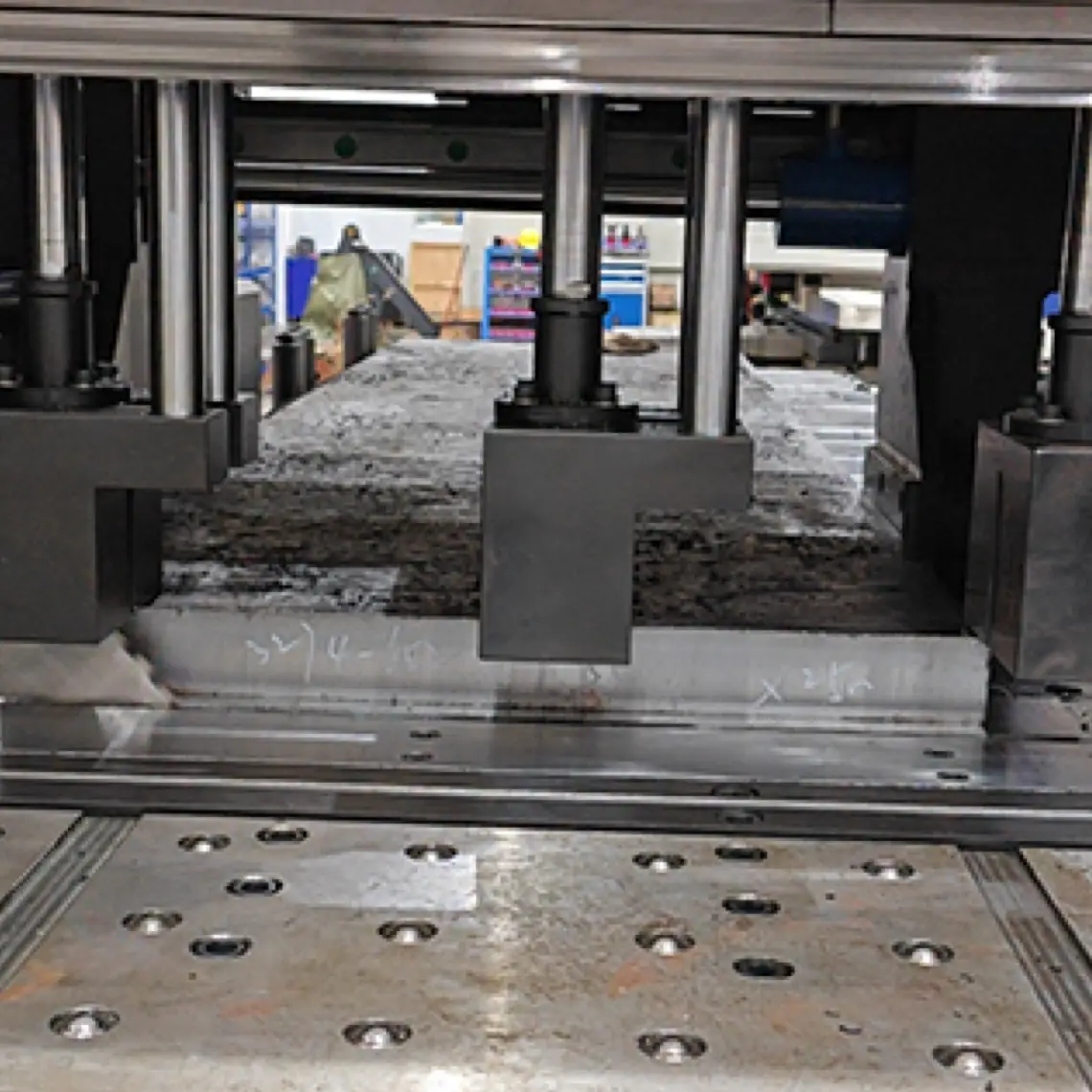

Our machine portfolio offers the perfect fit for your work - from small parts to large-scale workpieces, ensuring you have the right capabilities for any project.
| Model | X/Y/Z axis Rapid Move Speed | Sawing Width | Worktable size | |
|---|---|---|---|---|
| PCS-800NC | 4000/4000/4000mm/min | 0~800mm | 4100×3500×2200mm | |
| PCS-1000NC | 4000/4000/4000mm/min | 0~1000mm | 4500×3500×2200mm | |
| PCS-1500NC | 4000/4000/4000mm/min | 0~1500mm | 4800×3500×2200mm | |
| PCS-2300NC | 4000/4000/4000mm/min | 600~2300mm | 4500×3500×2200mm |
| Item | Traditional Band Saw | ASIATOOLS' Circular Saw |
|---|---|---|
| Cutting Speed | Slow (Low efficiency) | ✔ High Speed (5-10x Faster) |
| Surface Finish | Rough | ✔ Smooth / Milling-like |
| Secondary Process | Needs Face Milling | ✔ Ready to Use / Sell |
| Cutting Precision | High Deviation (Blade wanders) | ✔ High Precision |
| Suitability | General Rough Cutting | ✔ Precision Mold Bases & Plates |
