KZ100

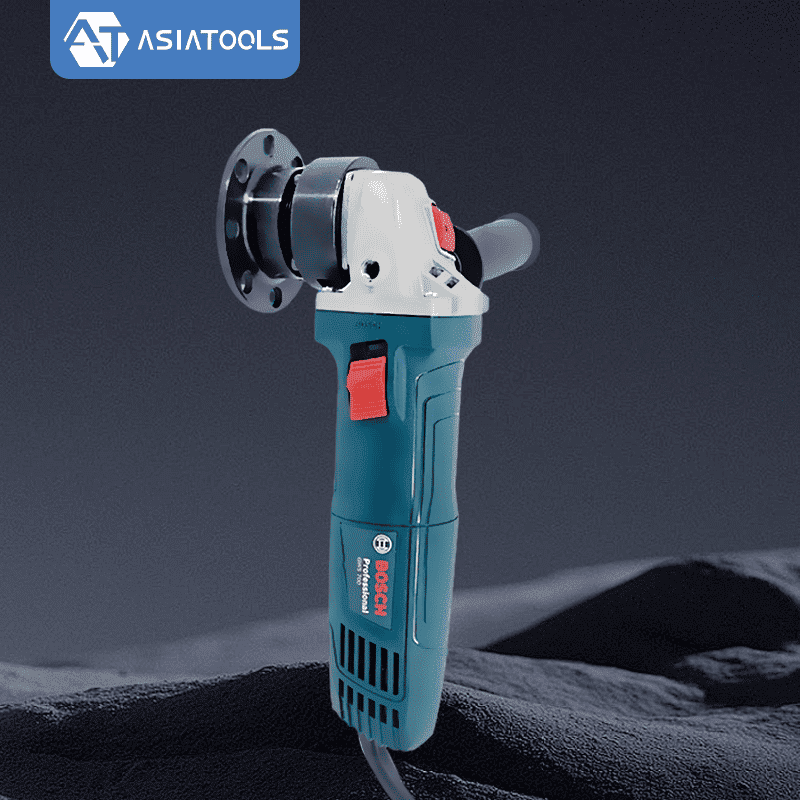

Portable Chamfering Machine

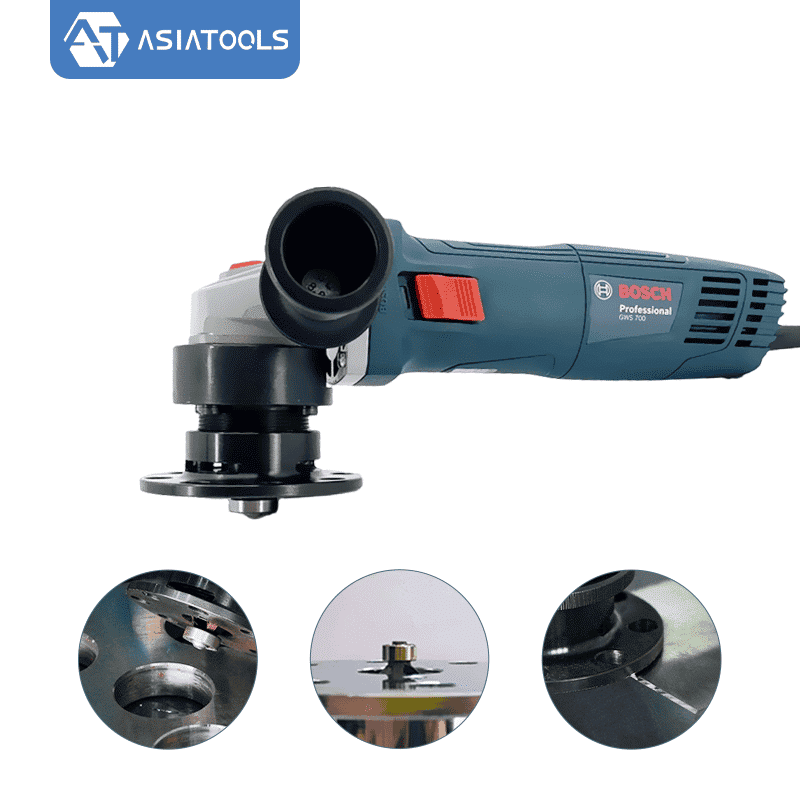

ASIATOOLS KZ100 Radius Chamfering Machine is designed for chamfering 2 mm and 3 mm radii. This lightweight machine weighs only 3.8 kg and is equipped with a powerful 710-watt motor with 12,000 RPM. This handheld chamfering machine features a dual-purpose blade switch, allowing it to process both 45° angles and R angle, making it a versatile tool for various applications. Its compact and user-friendly design allows it to be used on straight edges, internal and external radii, and even for drill holes. The fine adjustment feature permits precise chamfering, from light deburring to welding seam preparation.

Rated voltage 220V/50HZ
Rotating speed 12000rmp

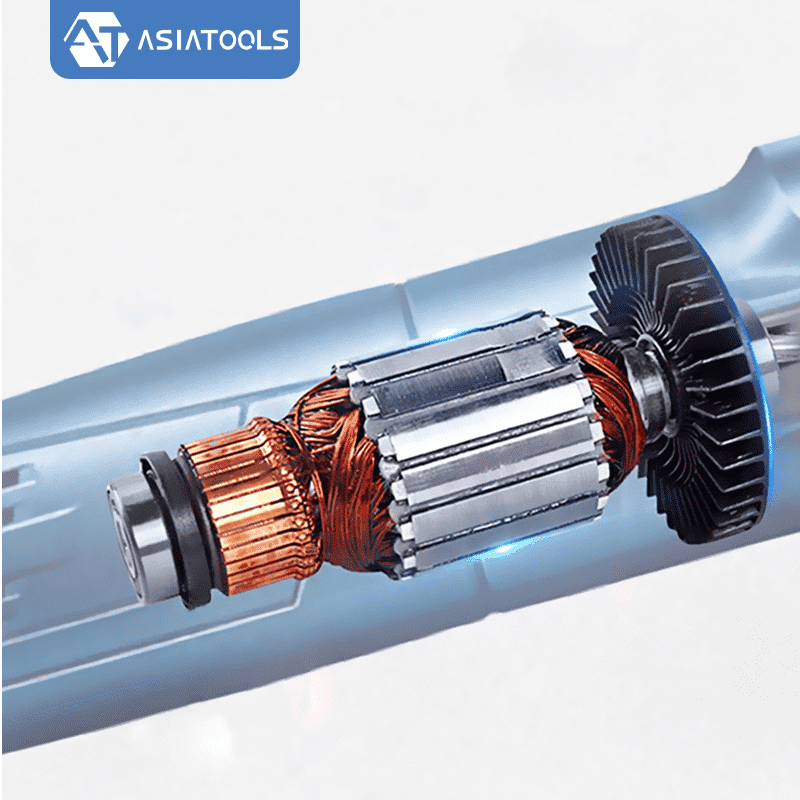

Motor output 710W
Packing dimensions 360*165*95mm

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS SERVICE & TRAINING

Contact

Portable Chamfering Machine

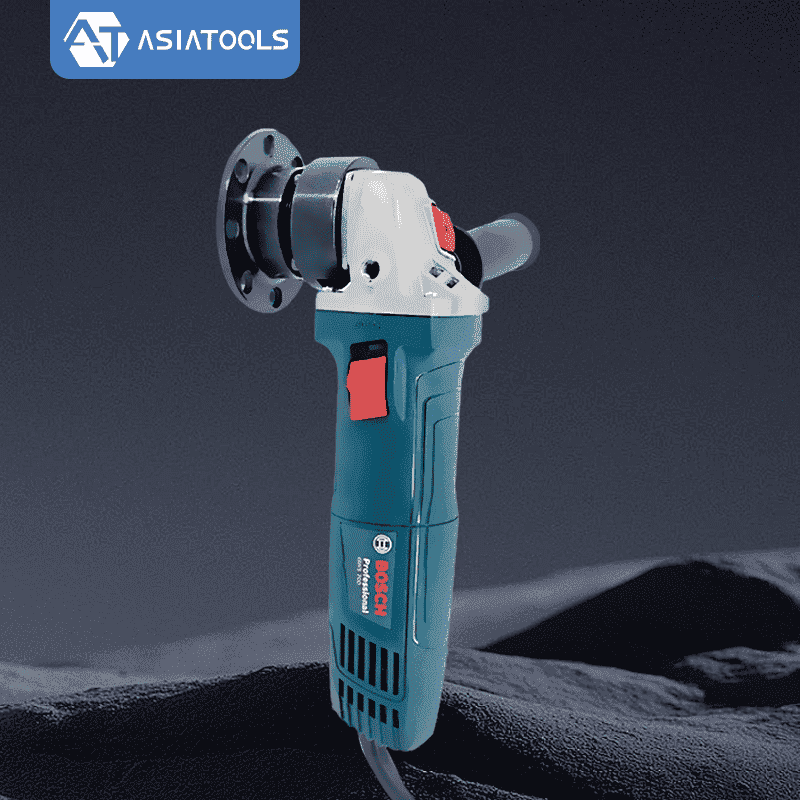

Thickened aluminum head shell

High hardness, premium thickened aluminum shell.

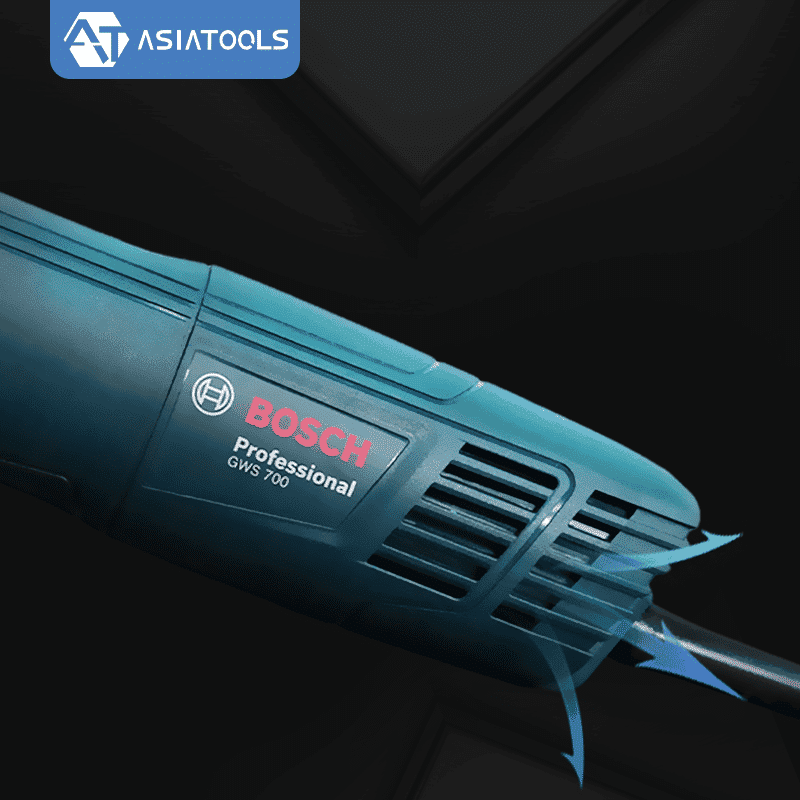

Independent air duct

Corner-style air duct design for smooth airflow.
Two-stage switch

Enhanced safety features.
Auxiliary handle

Provides stable grip with both hands for better comfort.

Basic Info

ltems	Value	Unit
Rated Voltage	220/50	V/HZ
Rotating Speed	12000	rmp
Motor Output	710	W
Chamfering Range	R2, R3/C0~3	mm
Blade Model	SDMWO9T304	/
Dimension	36016595	mm
Accessories	Insert*2	/
Weight	3.8	KG

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

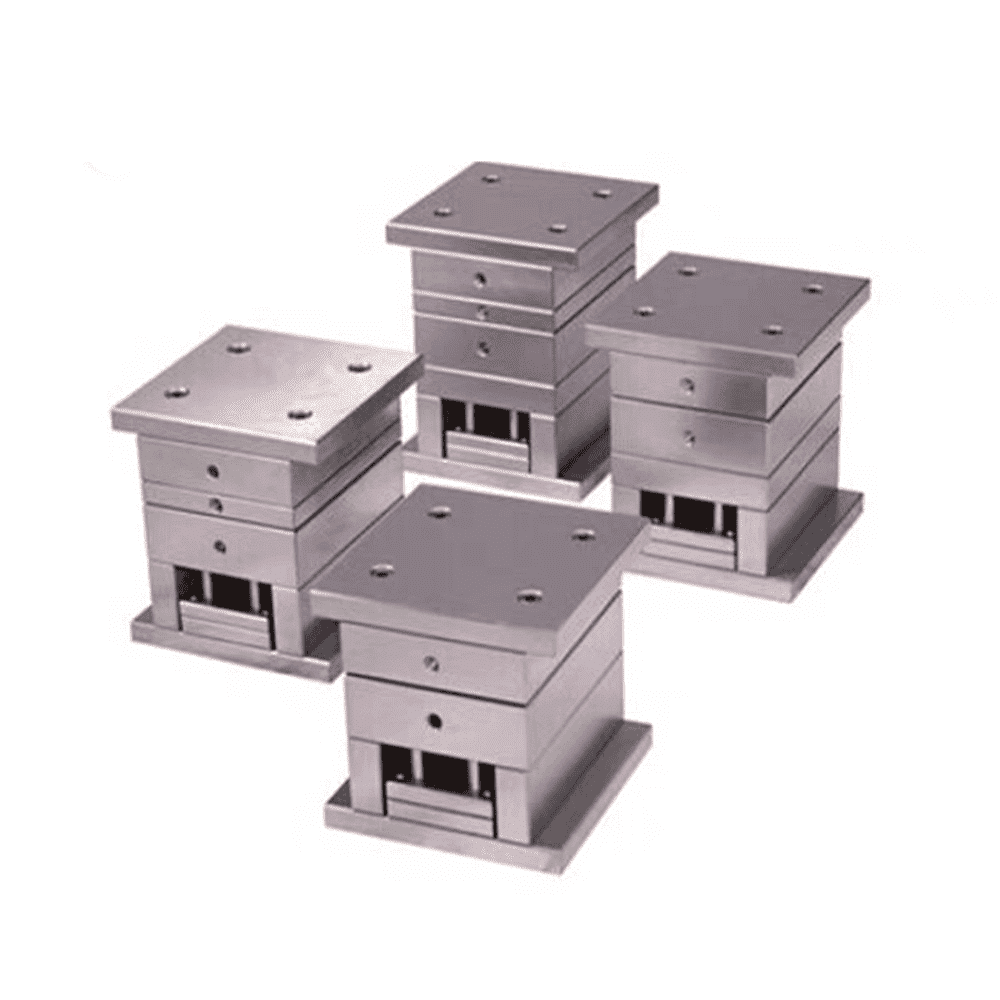

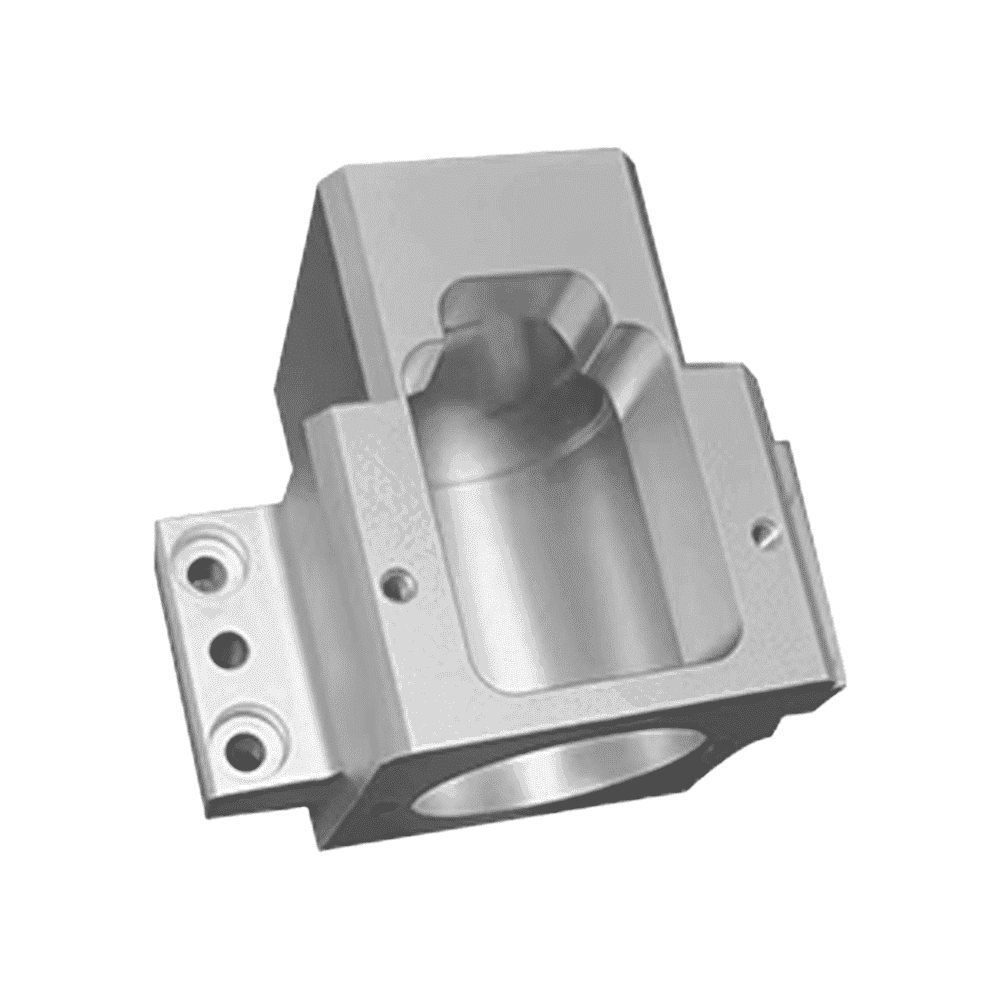

Mould

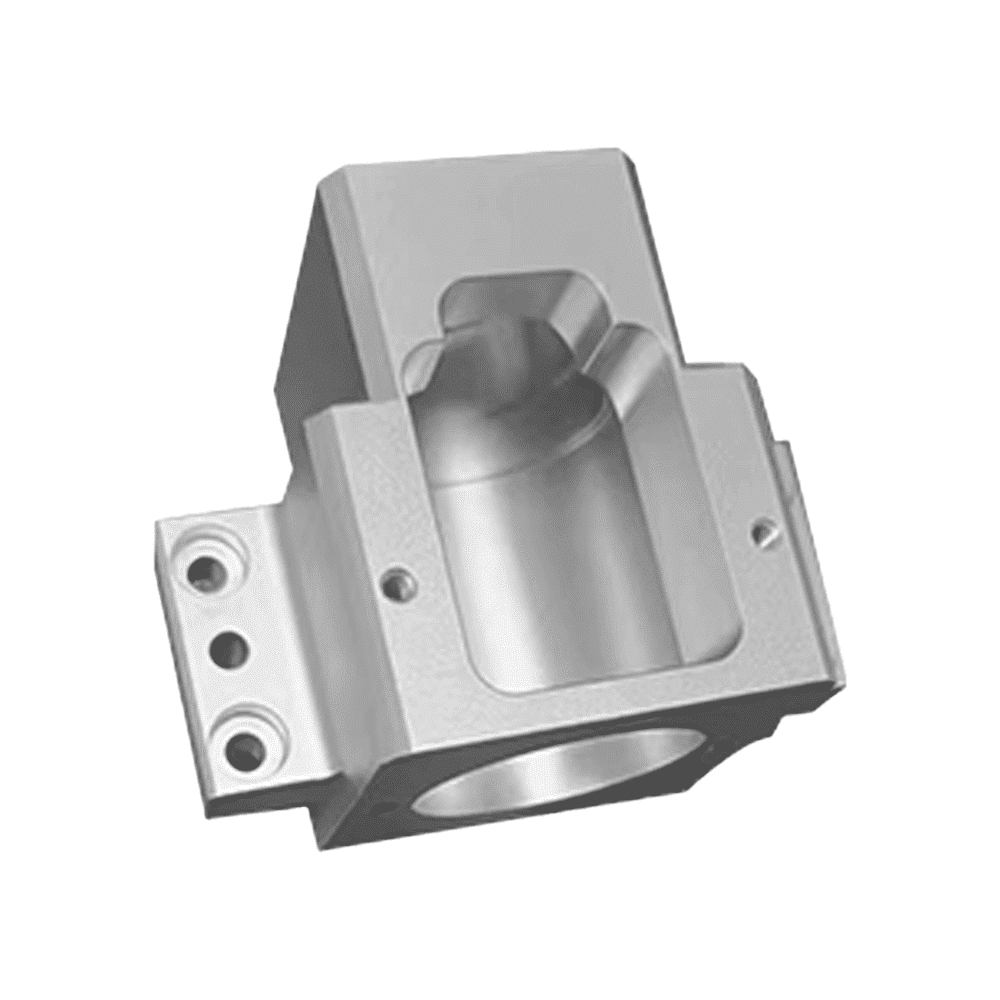

Steel structure

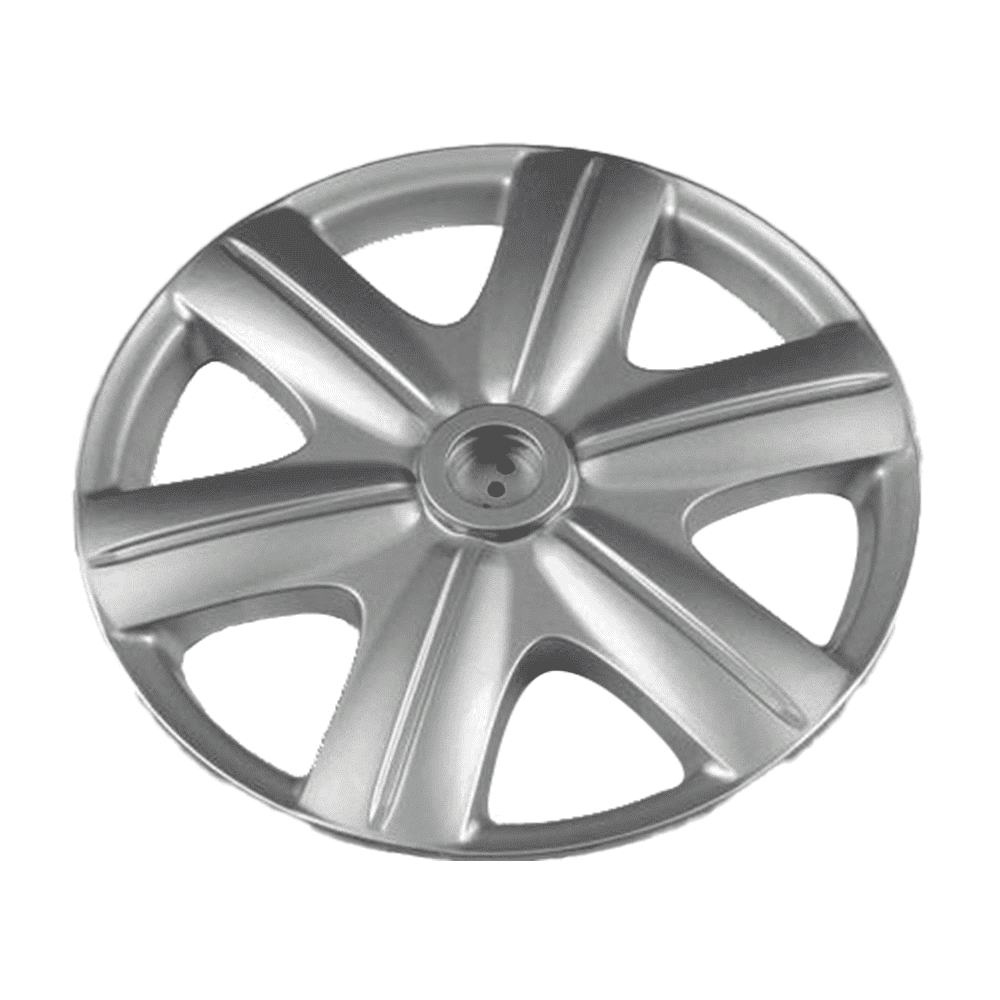

Metal
