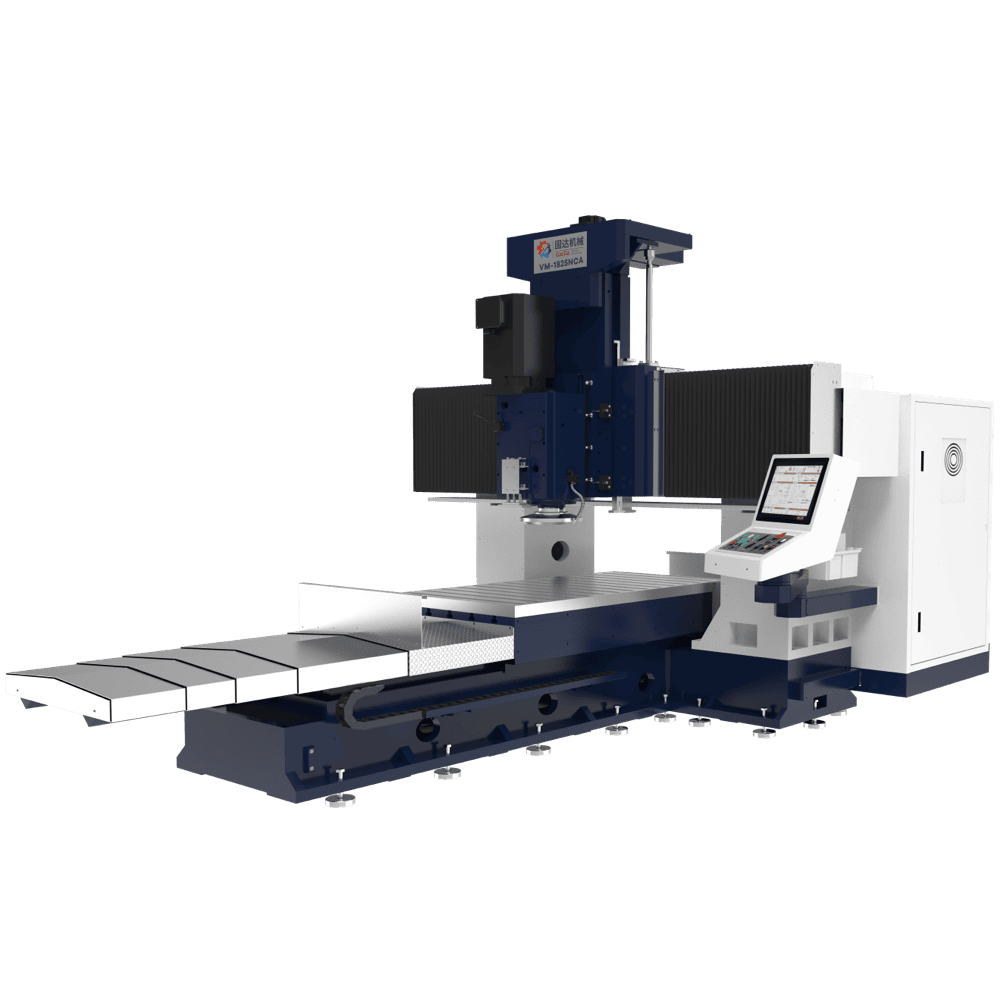

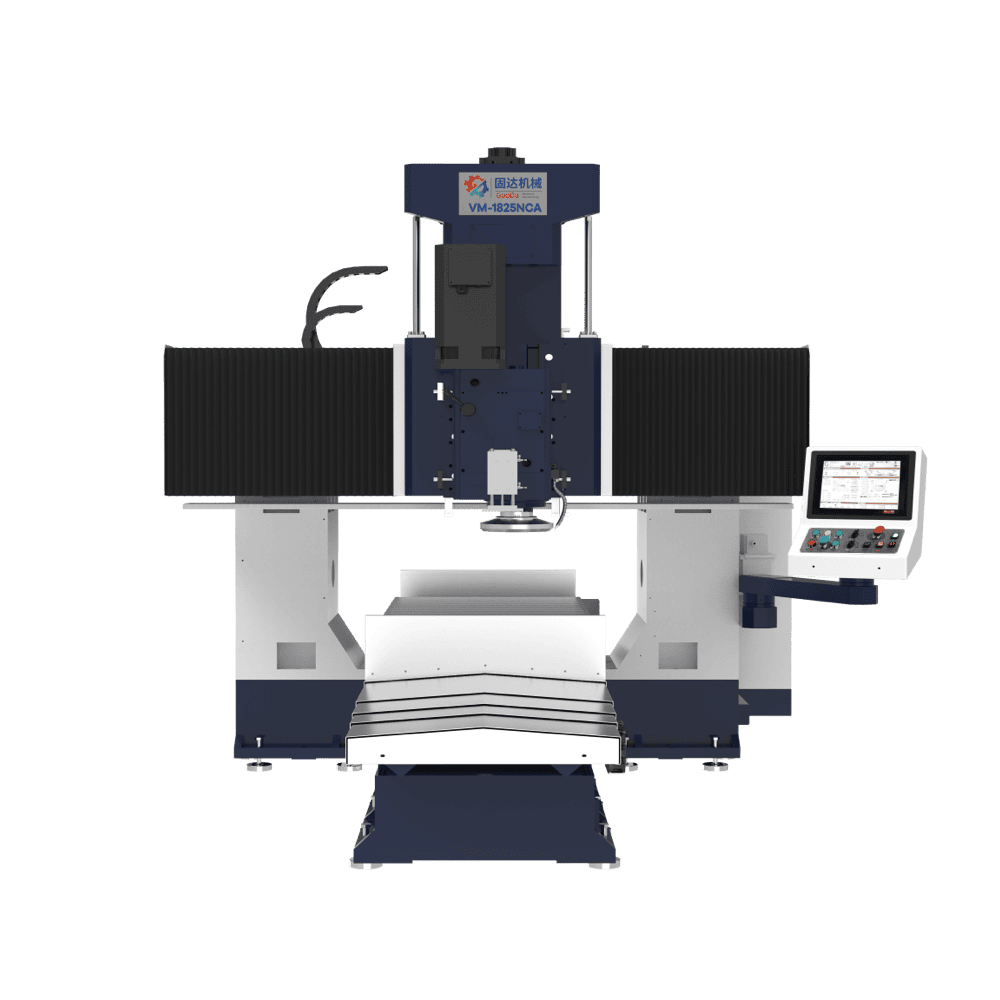

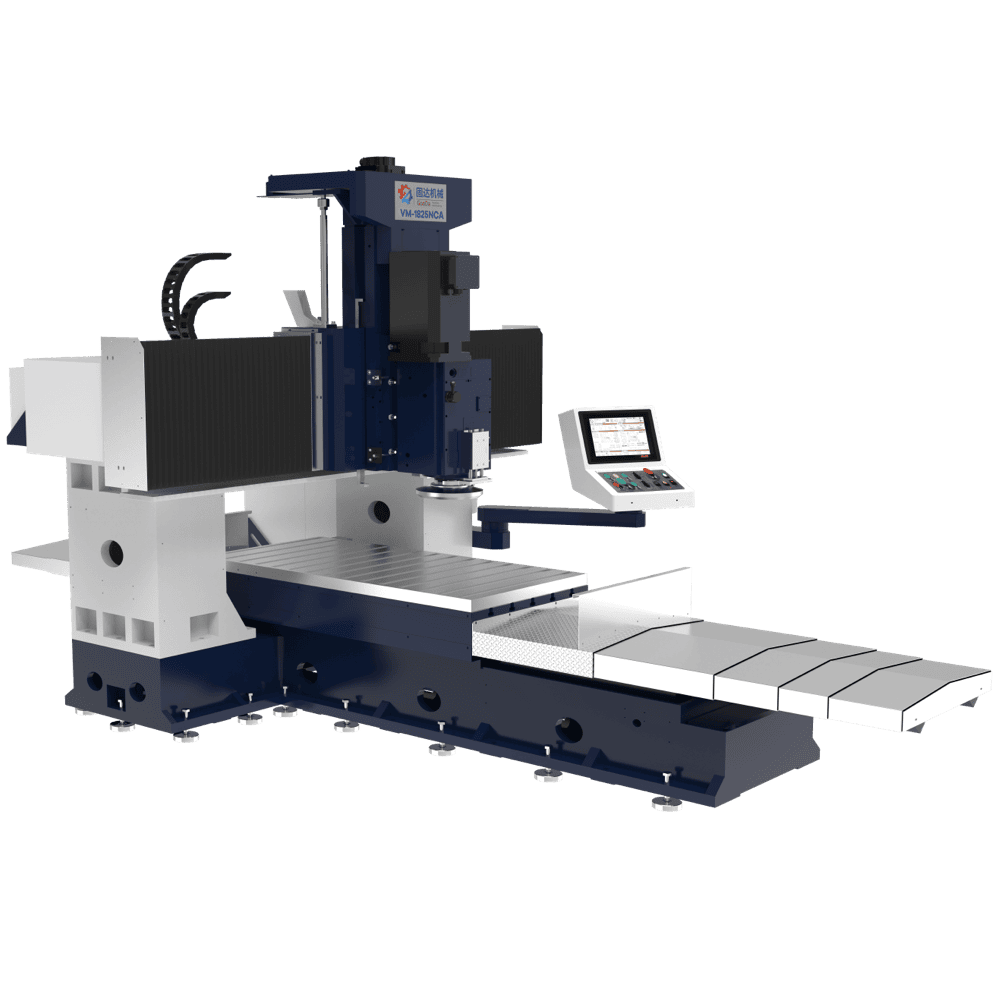

VM-1830NC

CNC Gantry Milling Machine

Gearbox type spindles with high torque spindle motors, suitable for heavy cutting and fine cutting needs, machine size (L*W*H): 8100*3600*4400mm, distance between columns: 1800mm.

Machining capacity 3000*1400*600
Columns net width 1800mm
Worktable size 3000*1400
Max. load capacity 9000KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

CNC Gantry Milling Machine

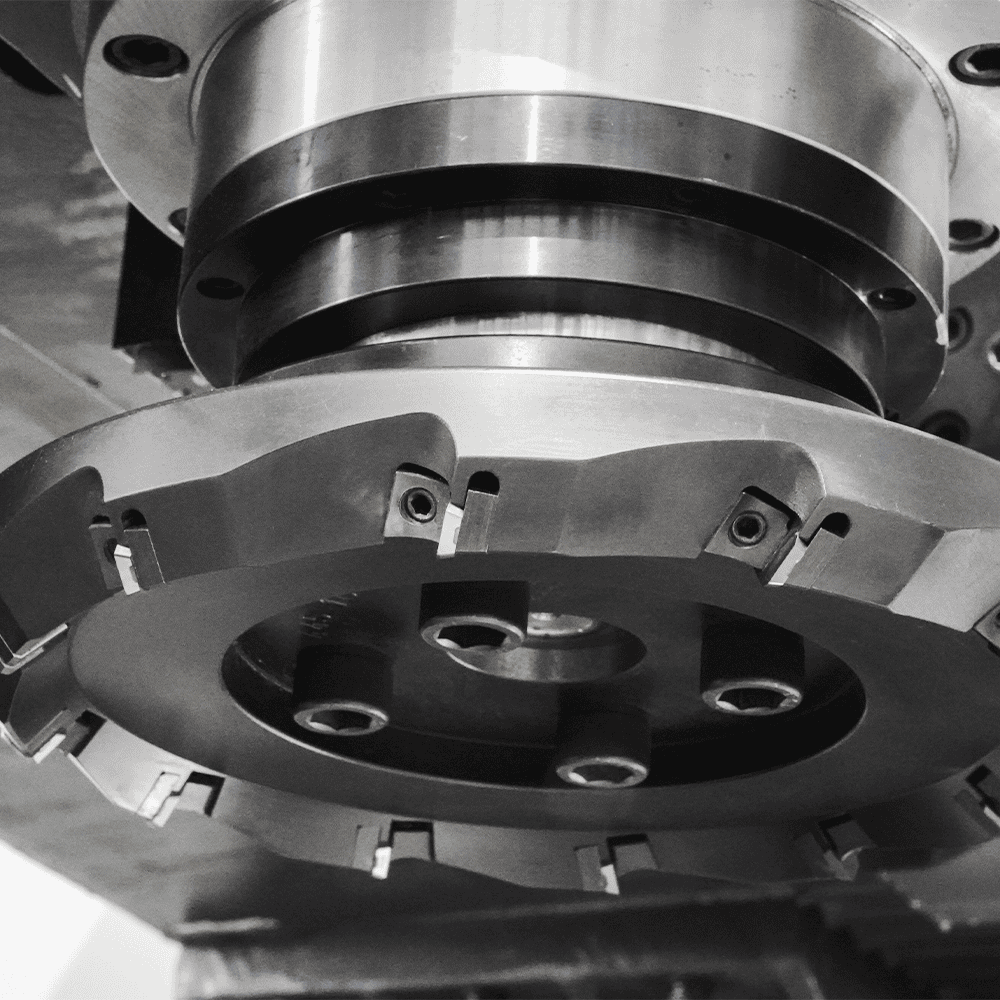

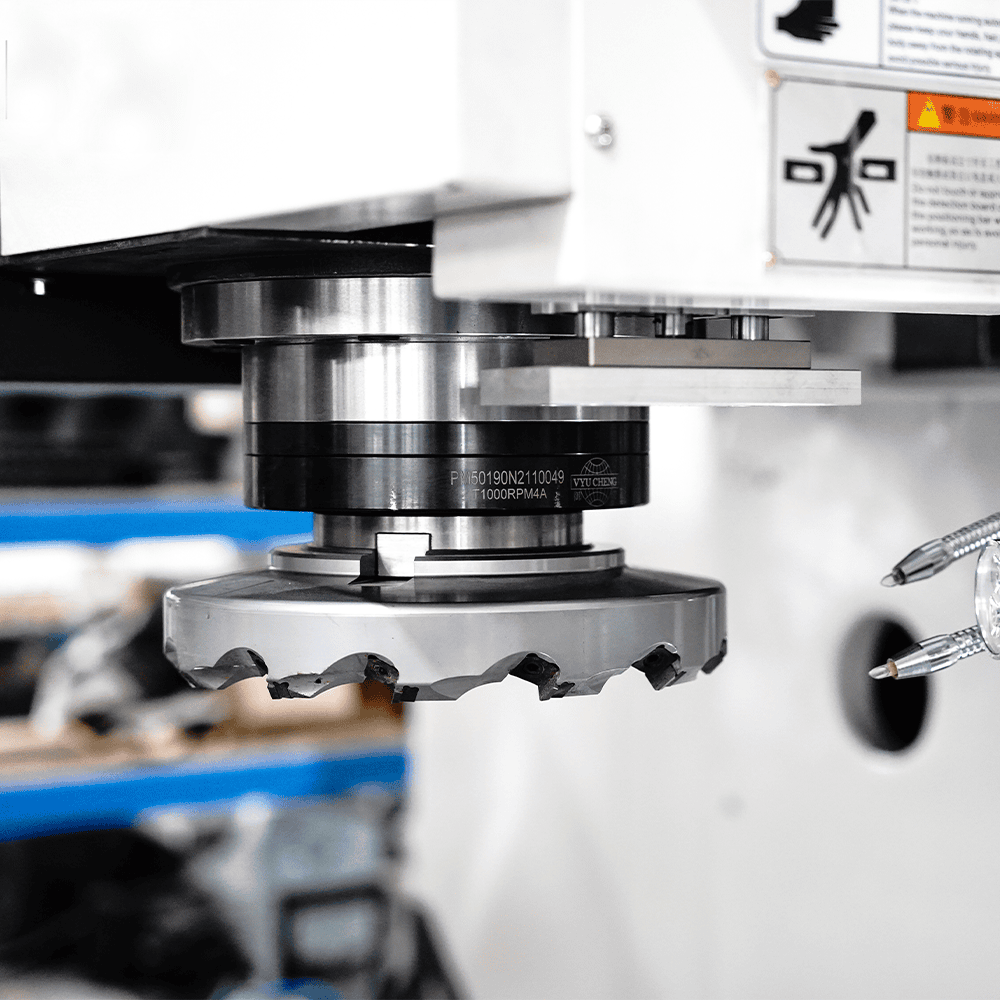

Rough milling cutter

Powerful gear-type spindle with rough milling cutter Extremely high chipping capacity, expressed in chips per minute.
Rigid box-way construction in the Z-axis

With a larger surface area and contact points on the carriage, to get more rigidity and heavier cuts.

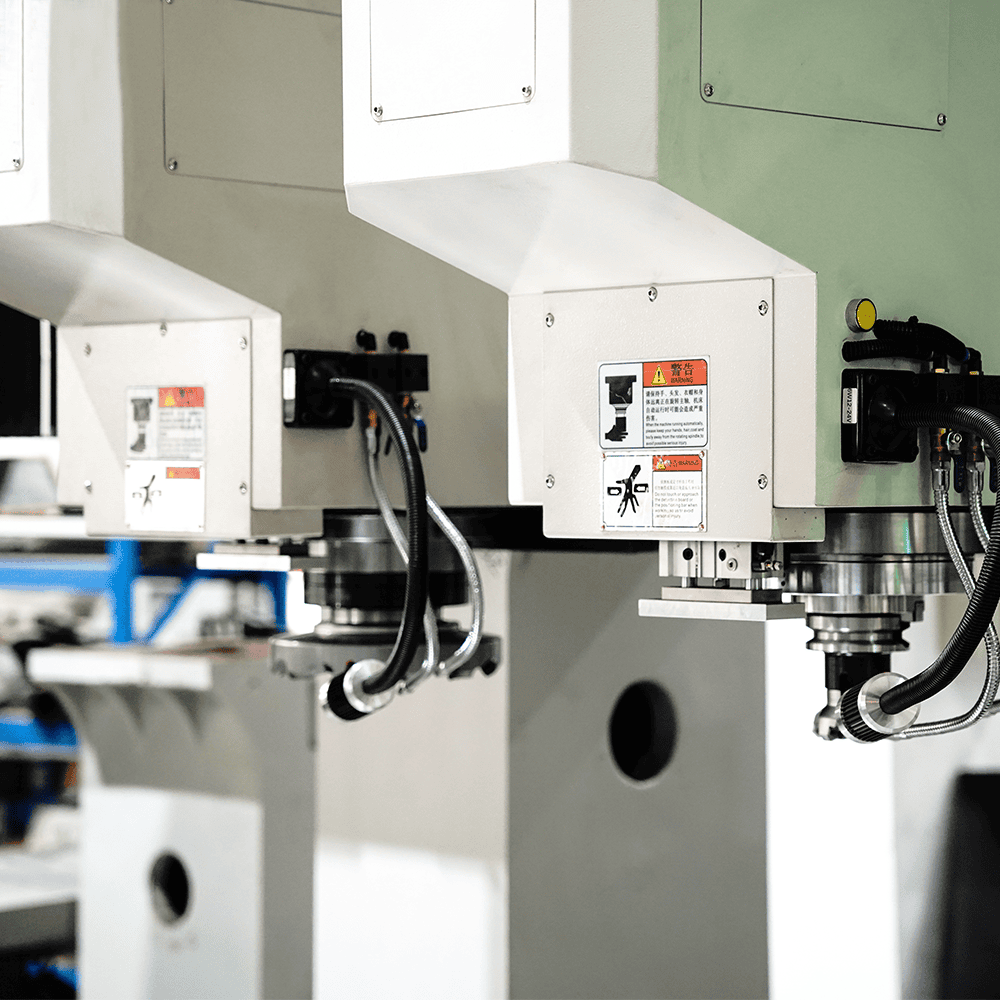

High torque and high horsepower spindle

The spindle has a high rotational rigidity under heavy duty intermittent cutting processes.

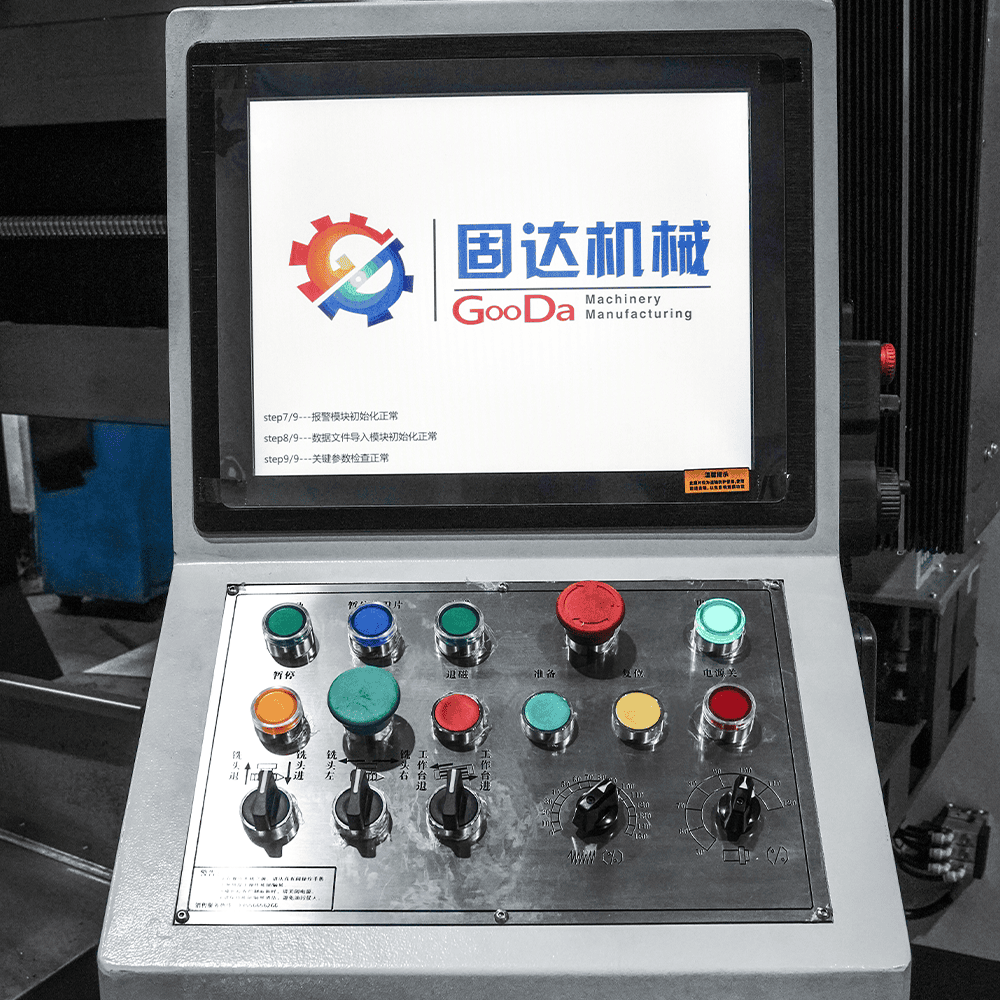

User-friendly design

High Performance FANUC oi-MF Plus Control with 10.4''touch Screen/Keyboard.

Basic Info

Items	Value	Unit
Machining capacity	30001400600	mm
Columns net width	1800	mm
Worktable size	3000*1400	mm
Max. load capacity	9000	KG
T-slot size	22*150	mm
Spindle motor power	22	KW
Spindle speed	55-500	rpm
Cutter diameter	Φ250	mm
X/Y/Z axis rapid feed	800050005000	mm/min
Machine size	810036004400	mm
Machine weight	About 19600	KG

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

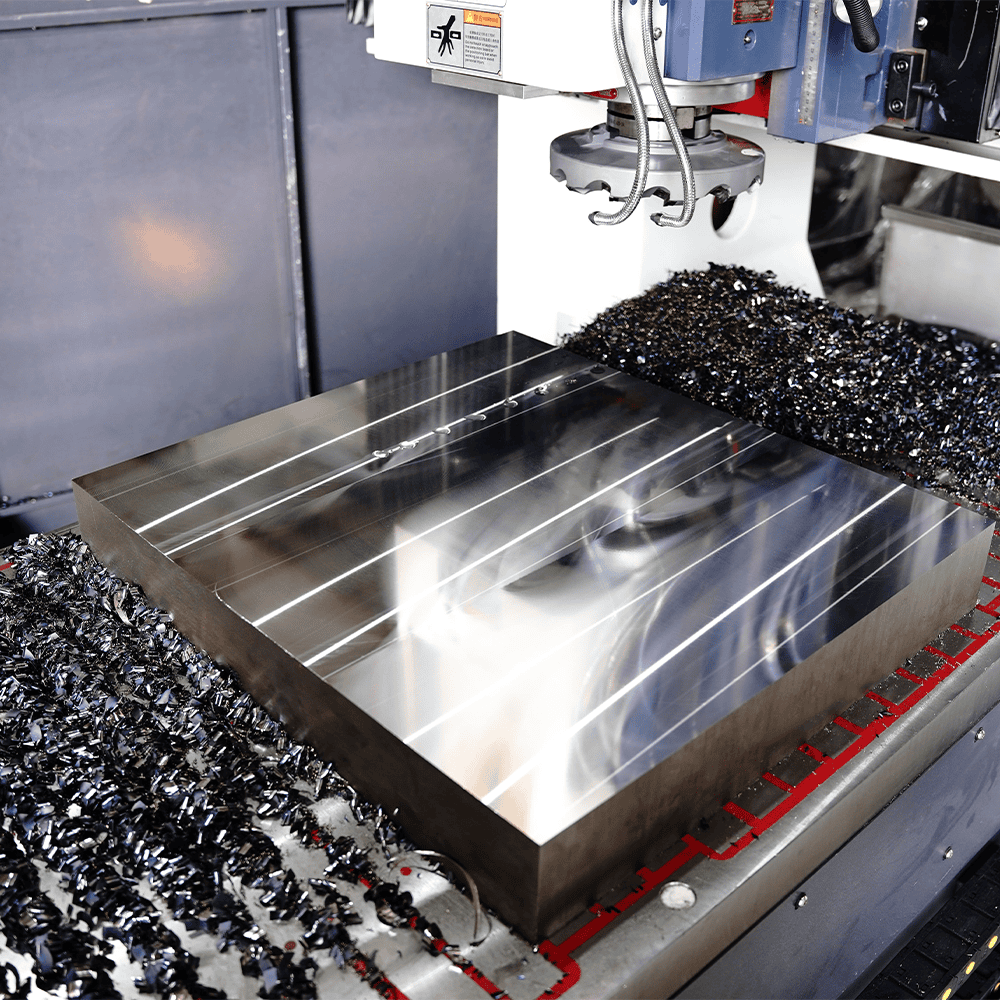

Precision (ground) plate

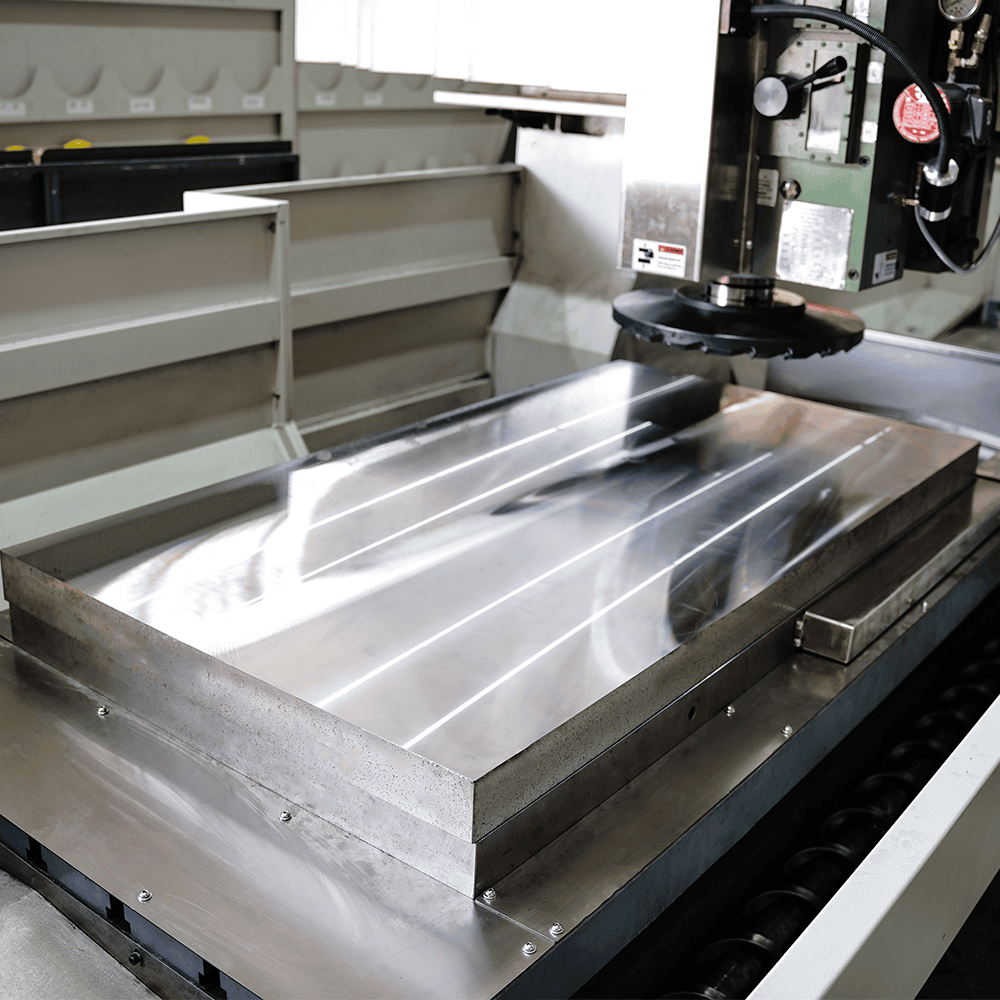

Machining plate

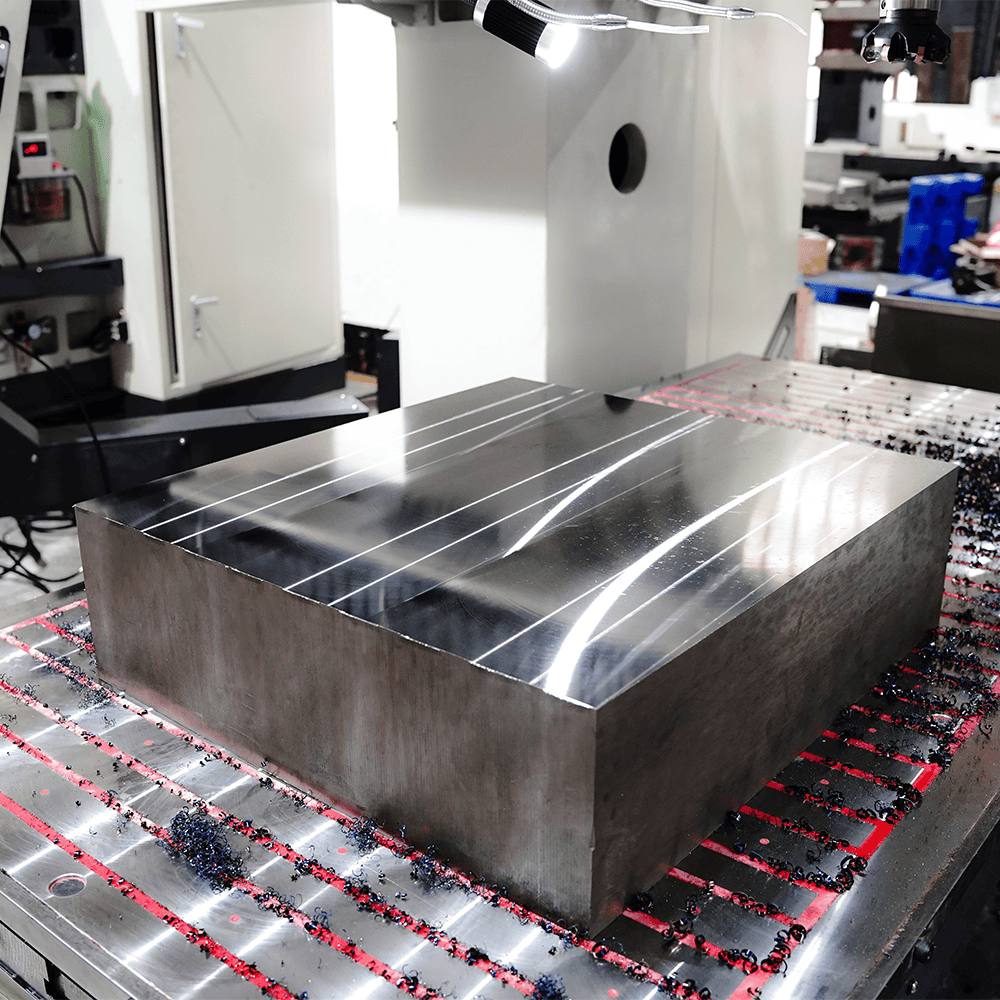

Custom (steel) plate

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
