VM-2340
CNC Gantry Milling Machine
Process capacity:1800*4000mm. Gear box type spindles with high torque spindle motors.Founded in 2012, our company is a leading Chinese manufacturer specializing in high-end CNC machine tools and critical functional components. As a significant production and sales base for high-end CNC machine tools in China, it has established sales and after-sales service networks across various regions nationwide. Our company is dedicated to providing global clients with high-quality, efficient, and reliable machine tools and services. It consistently prioritizes customer satisfaction as the benchmark for service quality.
Vertical Machining Center
LJ-855
Max. X-axis travel 800mm
Max. Y-axis travel 500mm
Max. Z-axis travel 500mm
Max. load capacity 500 KG
LJ-1165
Max. X-axis travel 1100mm
Max. Y-axis travel 650mm
Max. Z-axis travel 600mm
Max. load capacity 900 KG

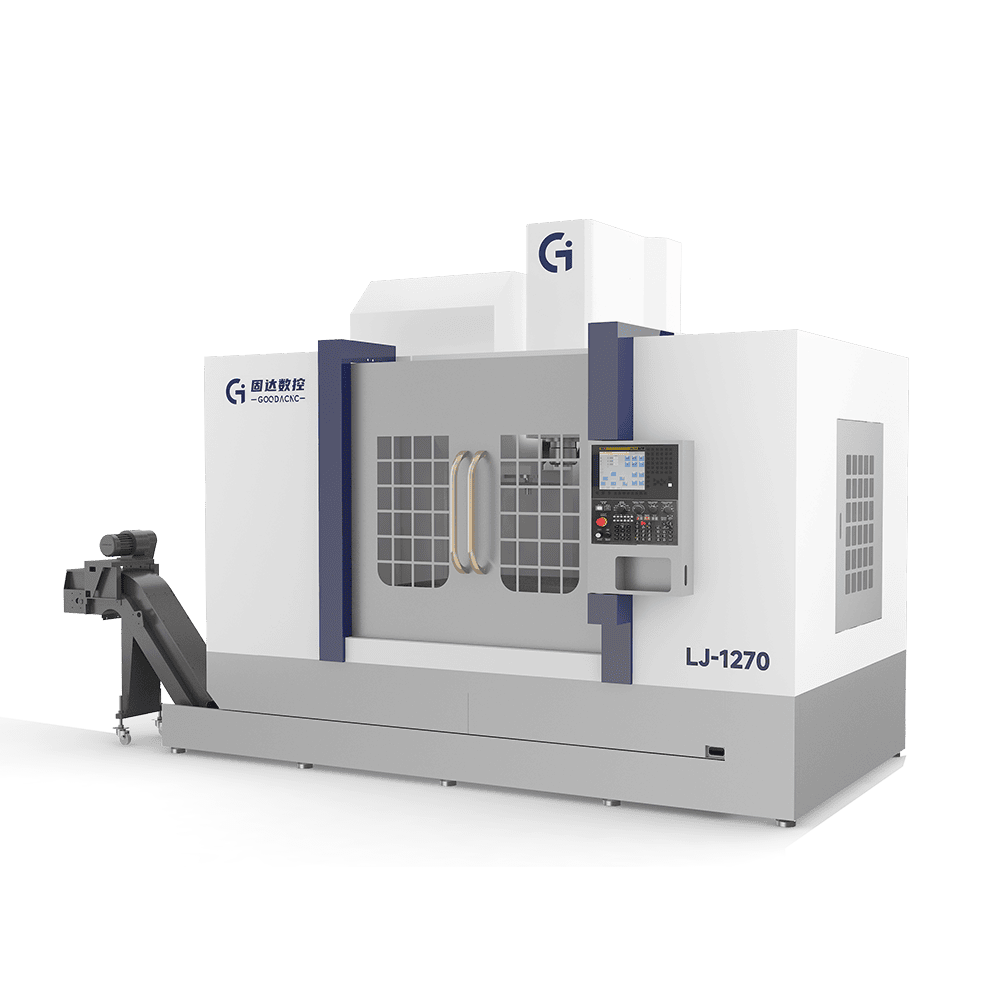

LJ-1270
Max. X-axis travel 1200mm
Max. Y-axis travel 700mm
Max. Z-axis travel 700mm
Max. load capacity 1000KG

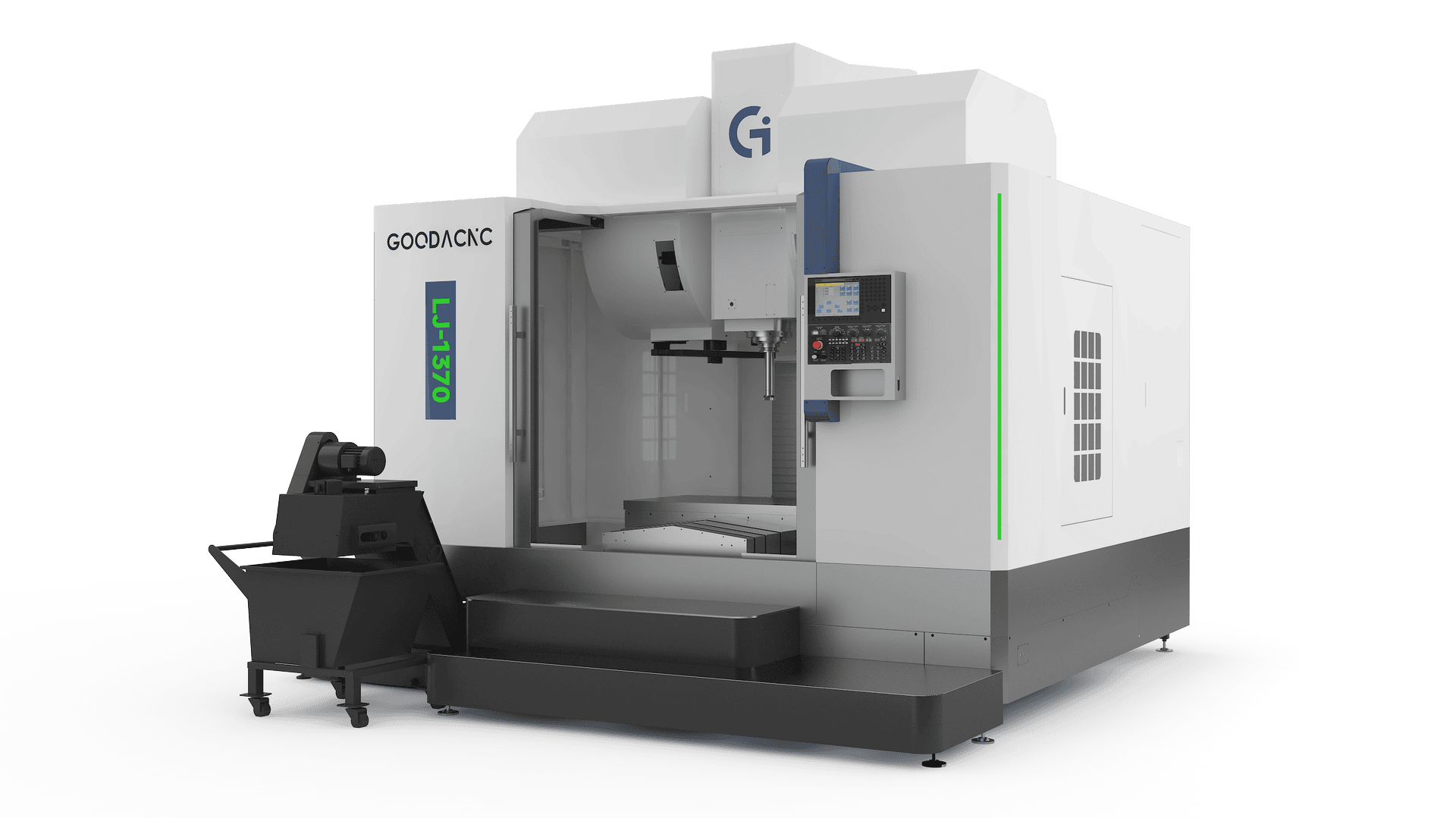

LJ-1370
Max. X-axis travel 1300mm
Max. Y-axis travel 700mm
Max. Z-axis travel 700mm
Max. load capacity 1500KG
Double Column Machining Center

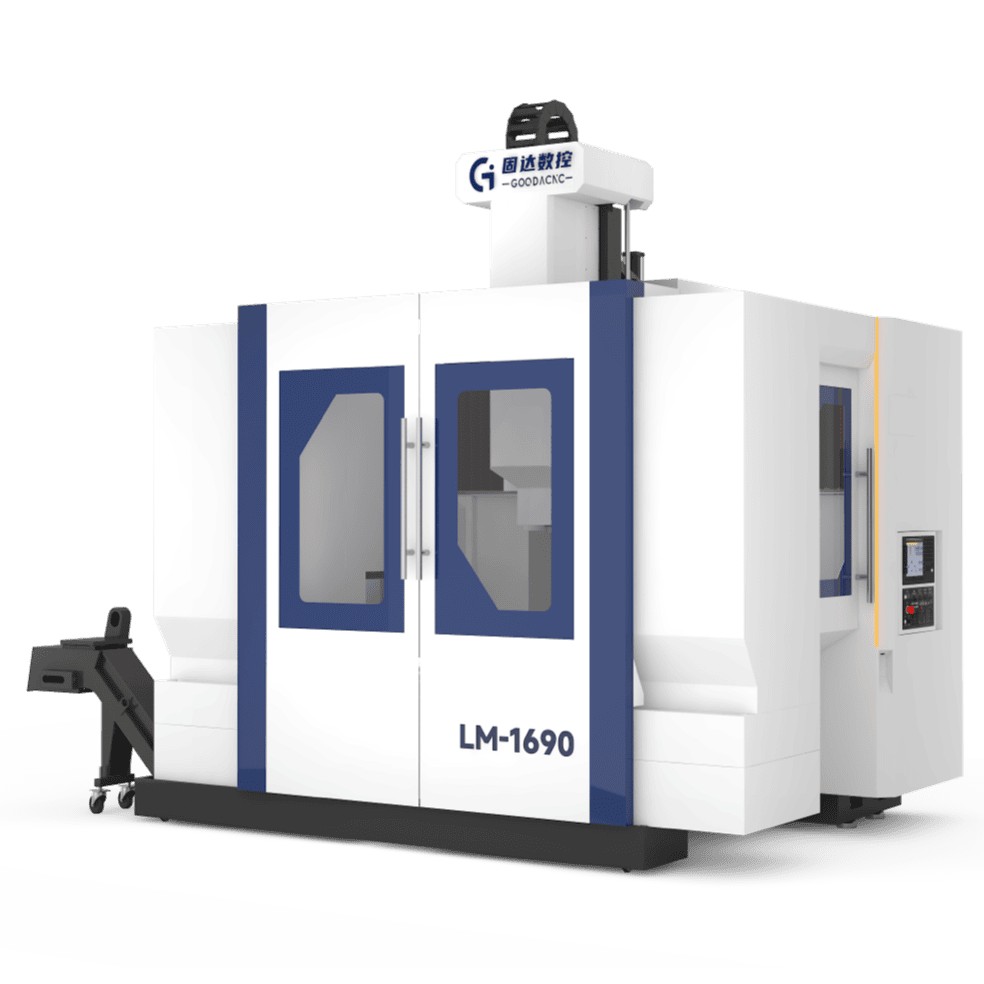

LM-1690
Max. X-axis travel 1600mm
Max. Y-axis travel 900mm
Max. Z-axis travel 800mm
Max. load capacity 2500KG
LM-2016
Max. X-axis travel 2000mm
Max. Y-axis travel 1600mm
Max. Z-axis travel 800mm
Max. load capacity 4000KG
LM-3020
Max. X-axis travel 3000mm
Max. Y-axis travel 2000mm
Max. Z-axis travel 1000mm
Max. load capacity 9000KG

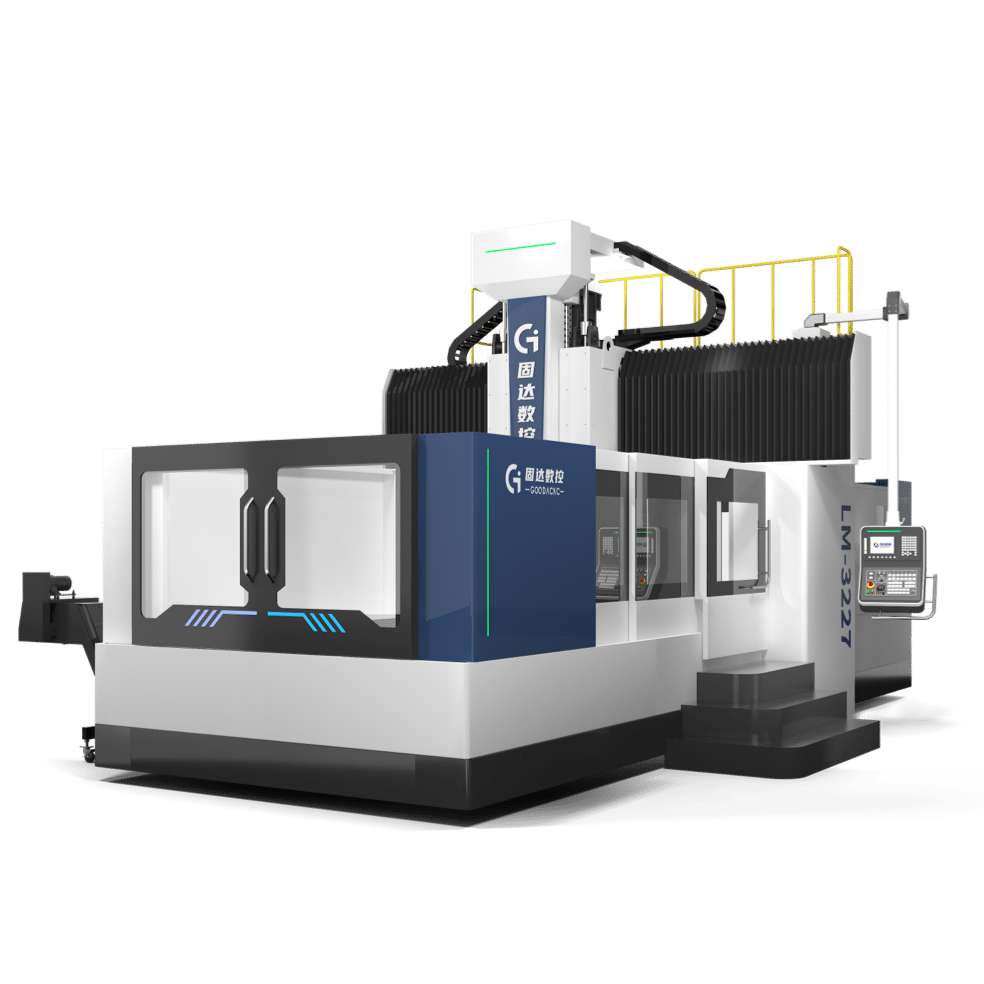

LM-3227
Max. X-axis travel 3200mm
Max. Y-axis travel 2760mm
Max. Z-axis travel 1000mm
Max. load capacity 10000KG
Efficient, Reliable,Energy-efficient,Your Optimal Choice.
We cordially invite users to contact us at your convenience. Rest assured, we are committed to furnishing customized solutions to meet your specific requirements.
Get a QuoteQ: What is a CNC milling machine?
A: A CNC milling machine is a computer-controlled machine that uses a rotating cutting tool to precisely remove material from a workpiece, creating a finished part based on a digital design, with 'CNC' stands for 'Computer Numerical Control' which governs the machine's movements and cutting actions with high accuracy; essentially, it's a milling machine operated by a computer program to create complex shapes with minimal human intervention.
Q: What is the working principle of a CNC milling machine?
A: In a CNC milling machine, rotating cutting tools move relative to the workpiece to remove material. The cutting tool (milling tool) is fixed on a spindle that can rotate. The rotation and movement of the spindle give CNC milling machines the ability to perform three or more axes milling operations.
Q: What is the difference between CNC turning and milling?
A: The key difference between CNC turning and milling is that in turning, the workpiece rotates while the cutting tool stays stationary, while in milling, the workpiece remains fixed and the cutting tool moves around it, allowing for more complex shapes to be created on the workpiece with milling compared to the primarily cylindrical shapes produced by turning; essentially, the part that moves is the key distinction between the two processes.
Q: What is the difference between a horizontal and vertical machining center?
A: While vertical machines excel at handling tall or deep workpieces, horizontal machines provide better support for heavy parts and allow for more efficient chip evacuation during cutting operations.
