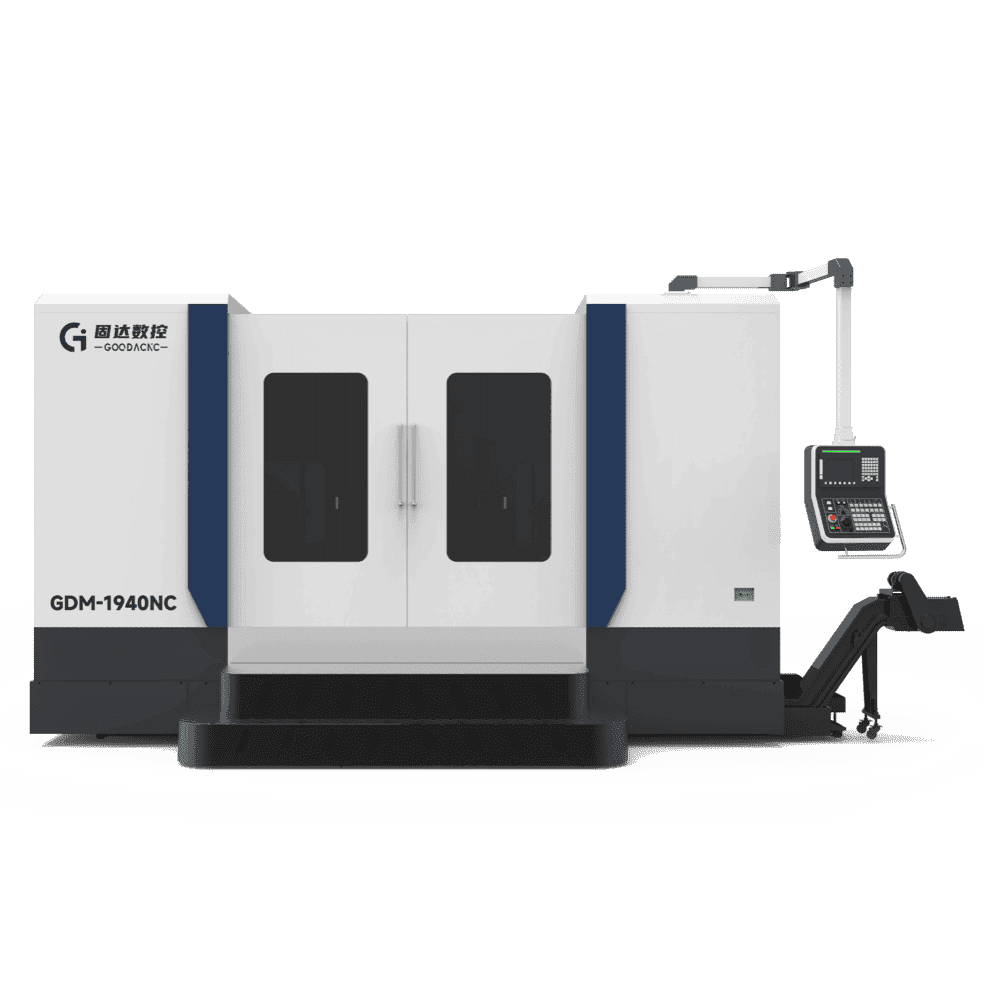

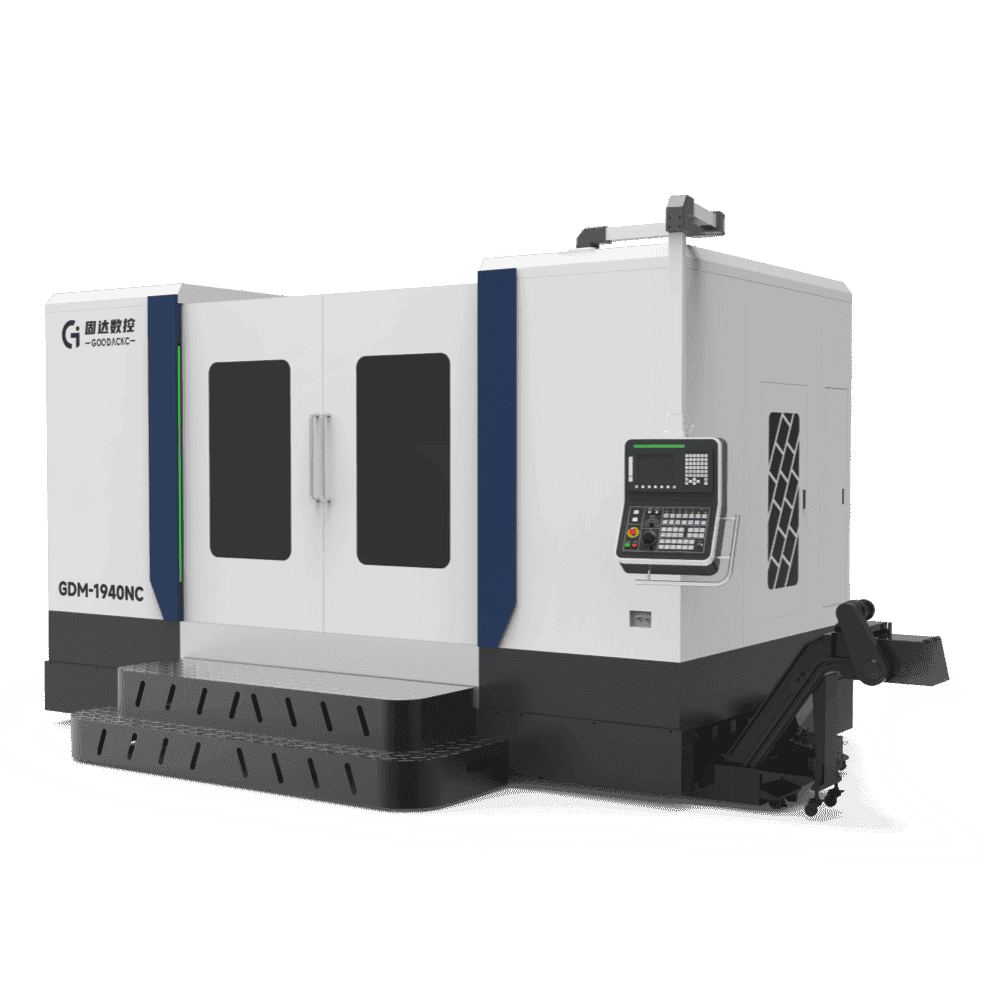

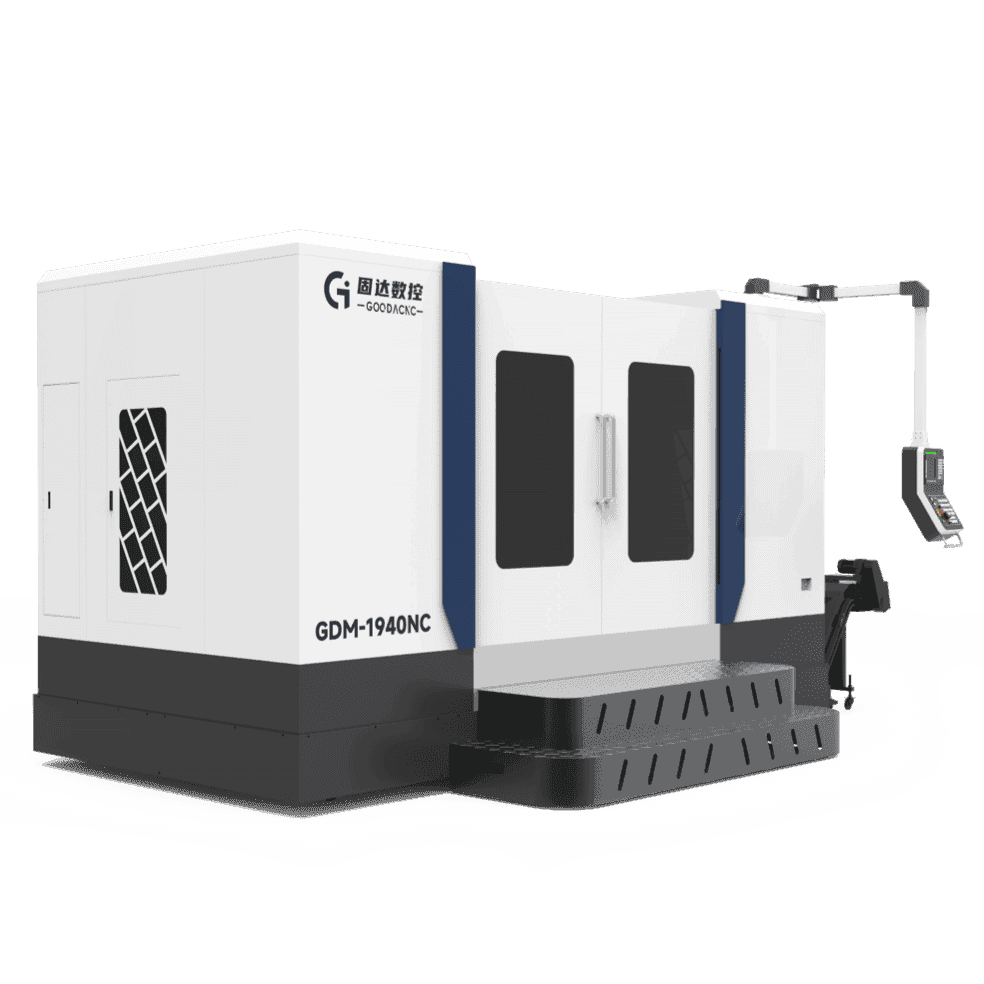

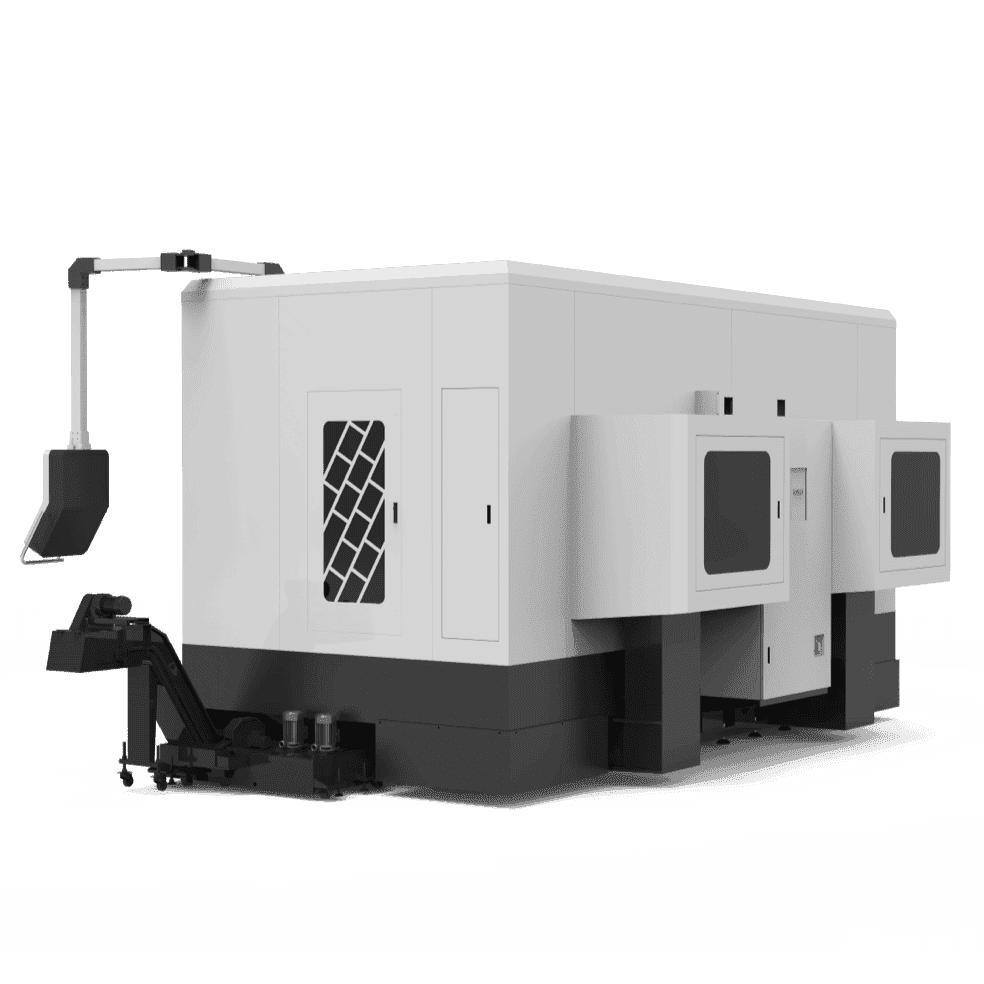

GDM-1940NC

Twin-Spindle Horizontal Machining Center

The dual horizontal machining center adopts a composite dual-channel system control and mechanical spindle, which can meet the large torque cutting and high processing efficiency. The overall machine runs smoothly. Lt has multi-process processing technology such as milling, drilling, and tapping, and can achieve one-time clamping and one-timeforming processing technology.

Max. X-axis travel 800mm
Max. Y-axis travel 350mm
Max. Z-axis travel 400mm
Max. workpiece weight 3000 KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

Twin-Spindle Horizontal Machining Center

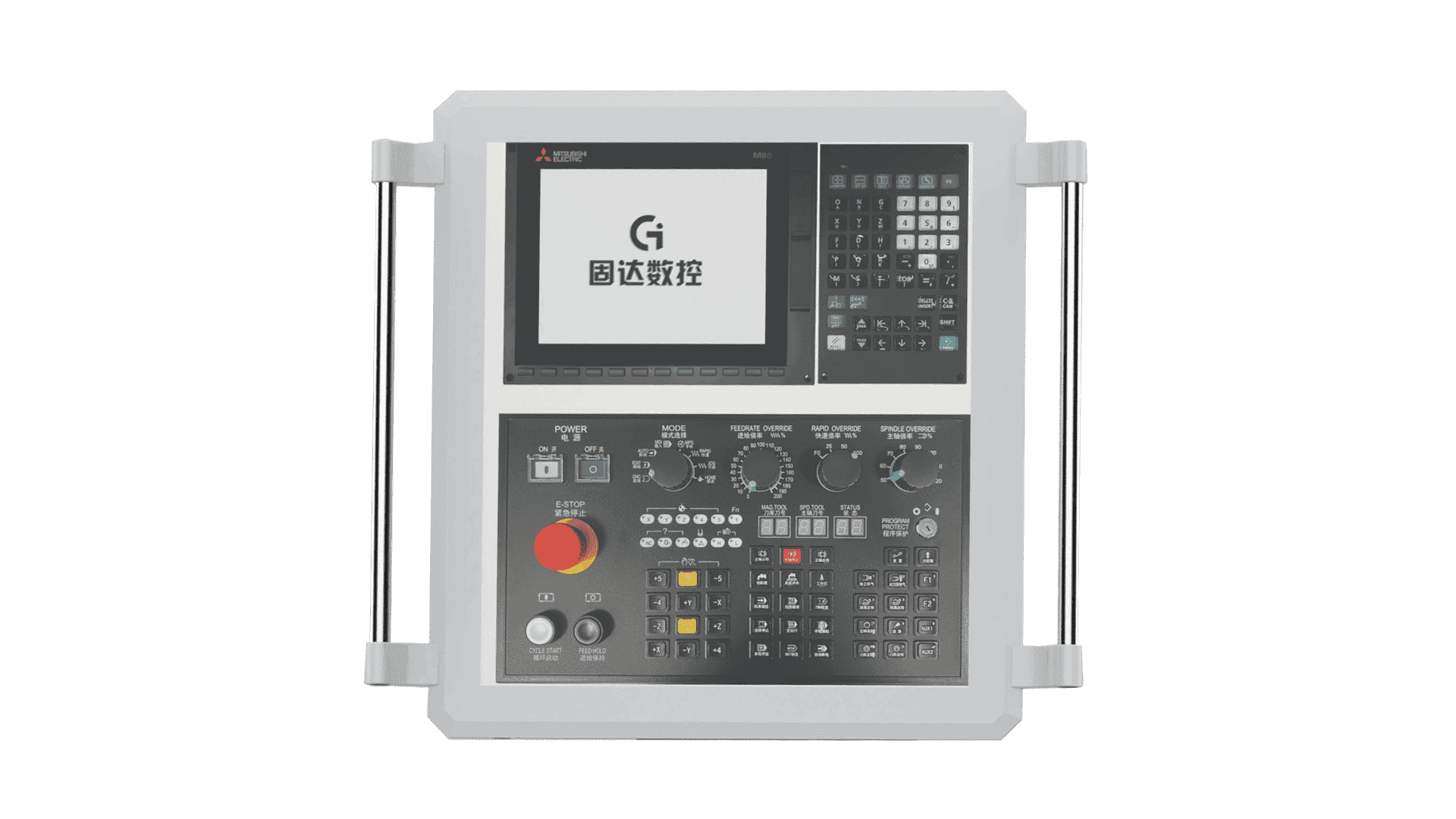

Composite dual channel system

Adopting composite dual-channel system control, while simultaneously processing the same features on both ends of the workpiece, it can also process workpieces with different features on both ends, two independent processing units, The application of this control system can bring great help to the production process, improve production efficiency, reduce failure rates, reduce production costs, and improve product quality to meet the diverse processing needs of customers.

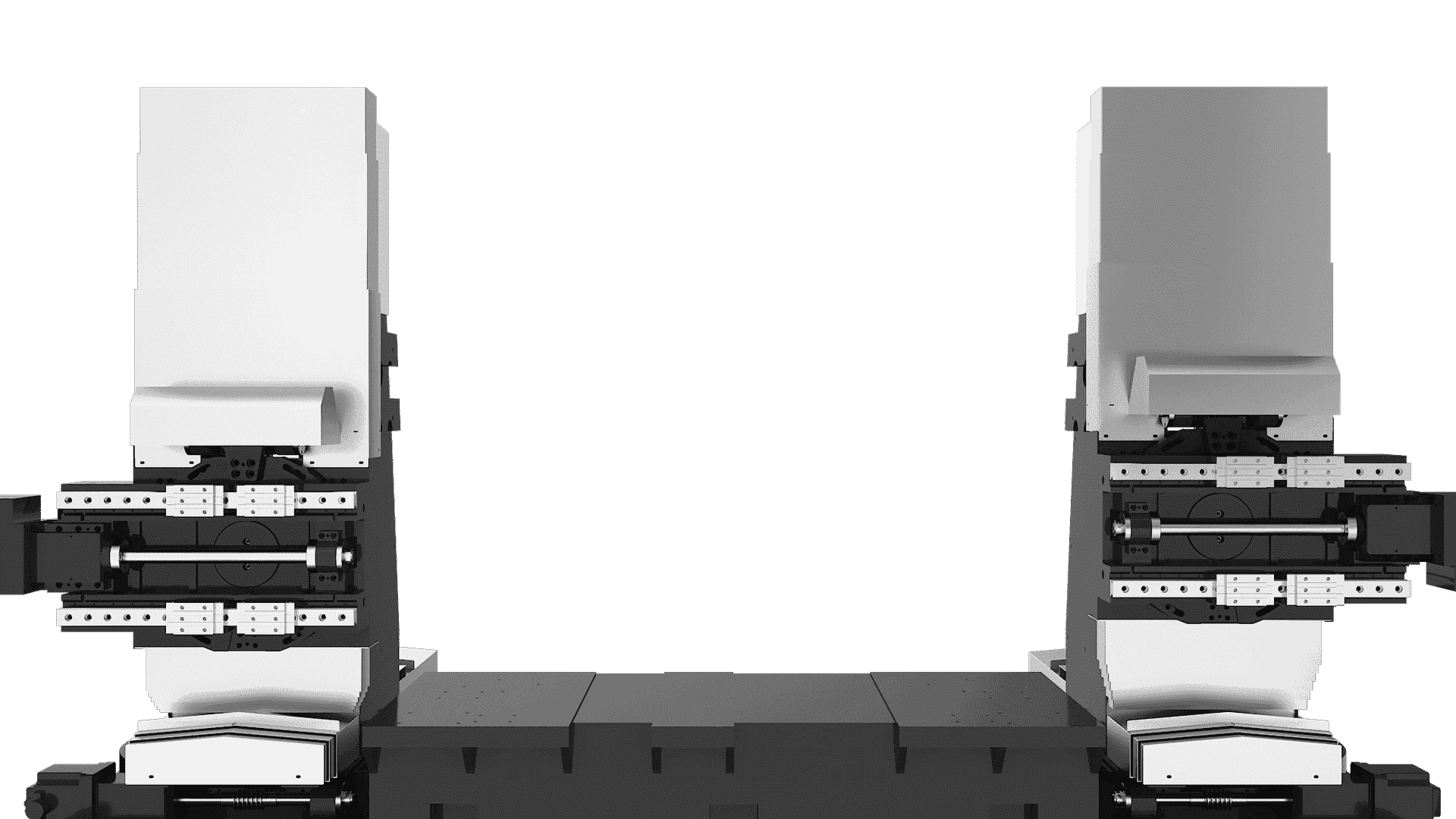

Rapid positioning

The X, Y, Z, and lead screws of the machine are all high-precision ball screws. The guide rail structure of the X, Y, and Z axes adopts heavy-duty roller guide rails, which are highly energy-efficient, precise positioning, and fast in response, achieving minimal vibration during machine feeding, and no creeping when feeding at low speed.

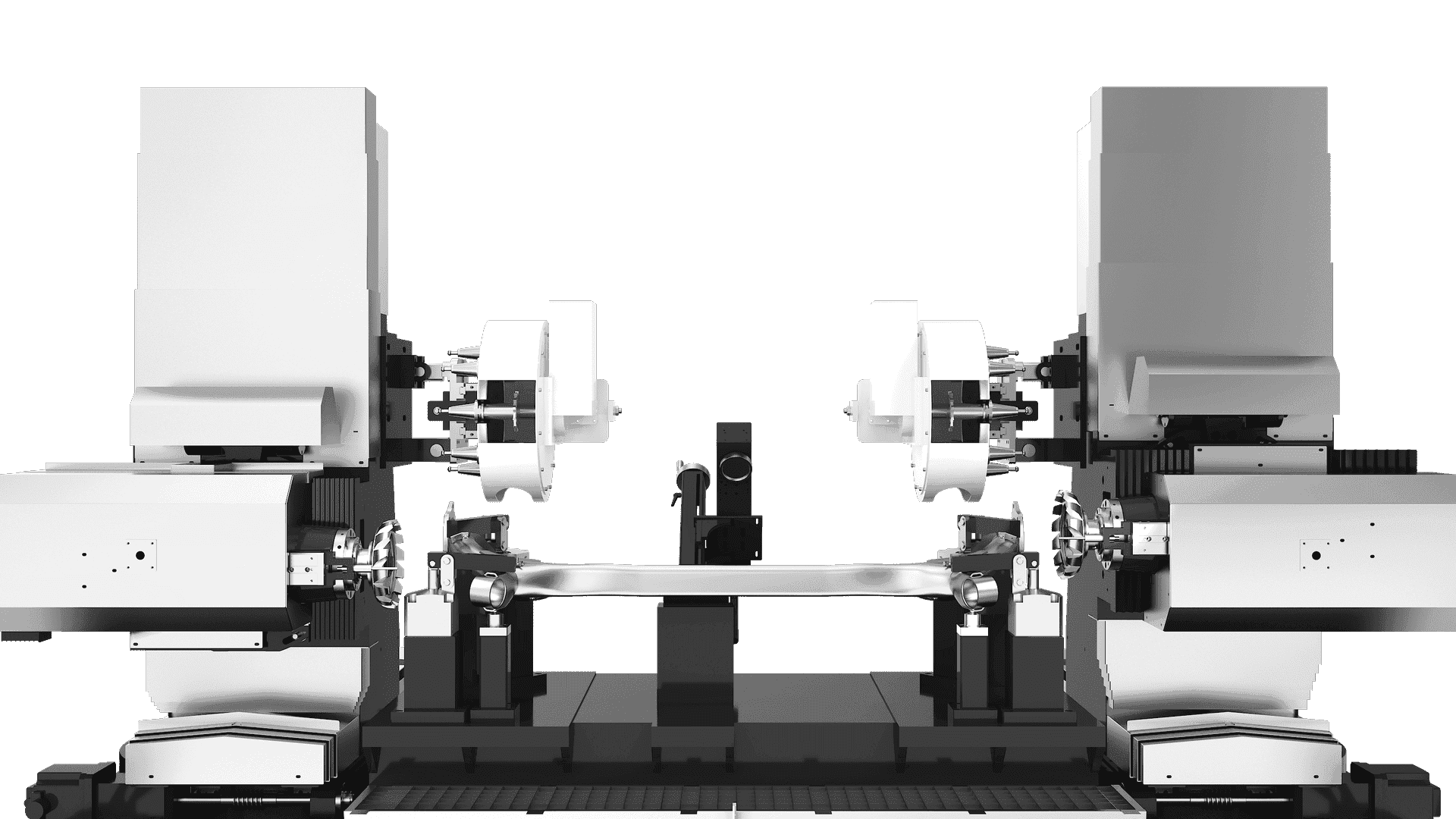

Dual Z-axis

It adopts a double Z-axis structure design, and the spindle part adopts a mechanical spindle, which can provide large torque cutting and high processing efficiency. And smooth overall operation of the machines.

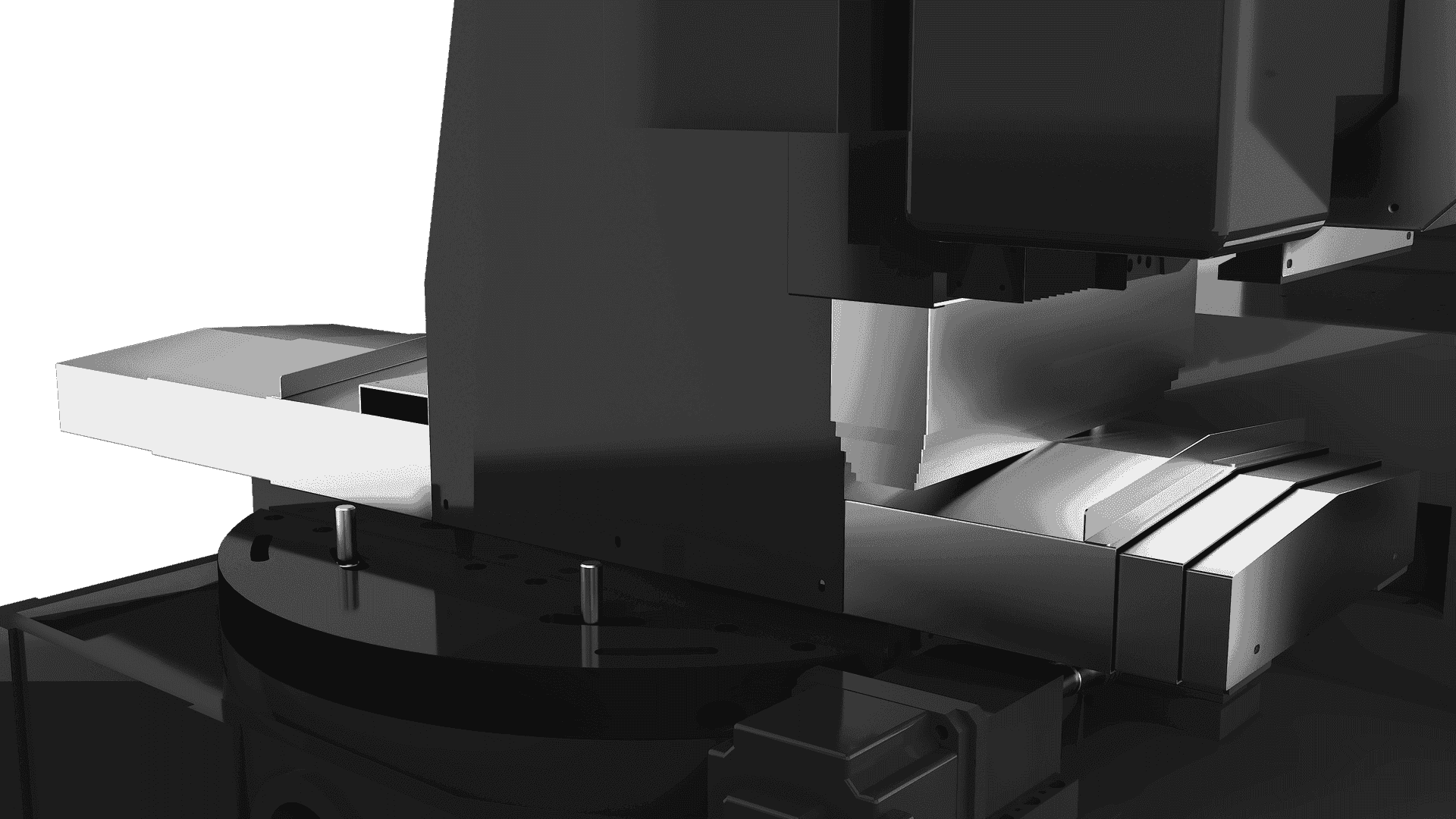

Machine protection

The machine guide rail adopts a special stainless steel guide rail protective cover, which has good sealing performance, is strong and durable, and runs smoothly. Extend the service life of machine guide rails and ensure the precision of machines. The electrical control cabinet is sealed dust-proof and air-conditioned for dehumidification to ensure the long-term stability of the electrical cabinet.

Basic Info

Items		Value	Unit
Travel	X-axis travel	800	mm
	Y-axis travel	350	mm
	Z-axis travel	400	mm
Worktable	Table size	1900x650	mm
Worktable	Max. load	3000	mm
Spindle	Tool holder specifications	BT50-190	/
Spindle	Spindle speed	20-3000	rpm
Power	Spindle motor power	15/18.5	KW
Tool magazine	ATCcapacity	8	T
	Tool change time	8	S
	Max. tool weight	8	KG
Feed	X, Y, Z axis fast moving speed	10/10/10	mm/min
Feed	Feed speed	8/8/8	mm/min
Accuracy	Positioning accuracyGB/T 17421.2-2000	0.02/1000	mm
Accuracy	Repeat positioning accuracyGB/T 17421.2-2000	0.015/1000	mm
Source	Total machine power	60	KW
Source	Air source	6-8	kg/cm²
Size & weight	Machine space	500032002510	mm
Size & weight	Machine weight	20	T

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,GooDa Machinery gets you going!

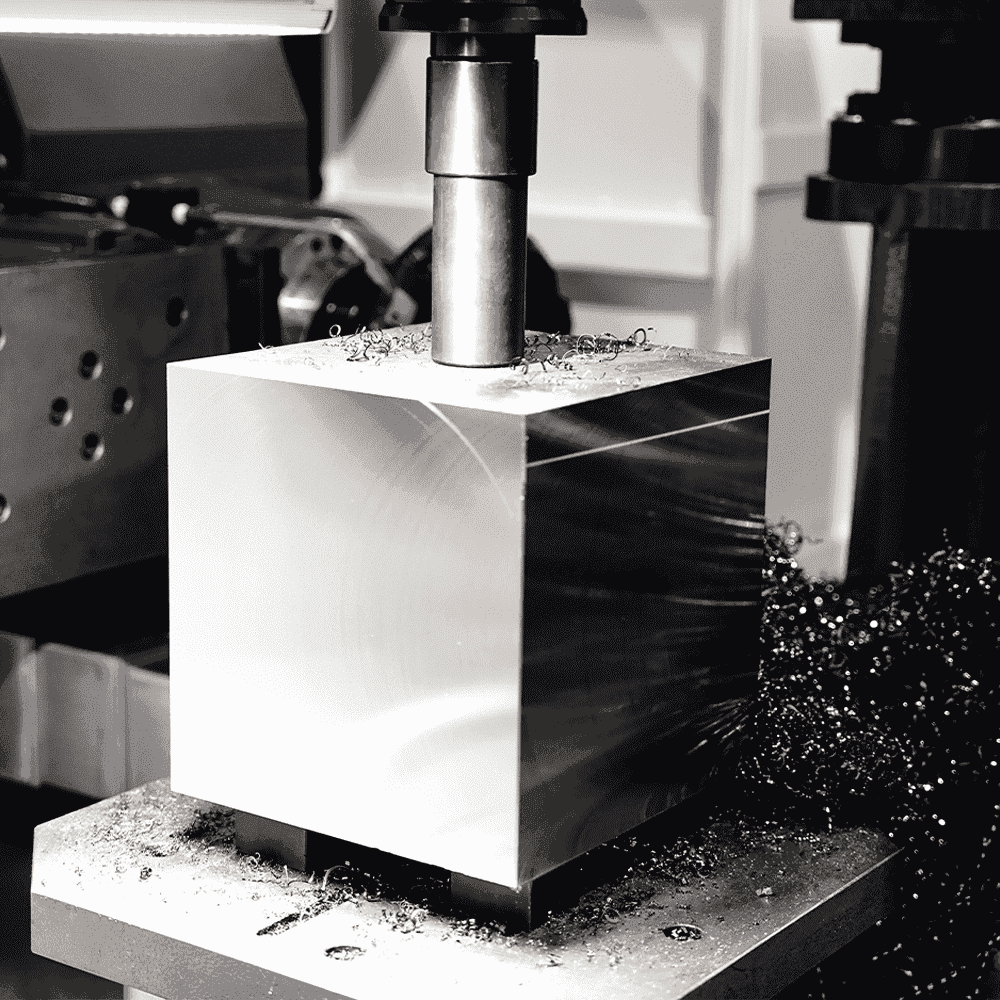

Metal machining

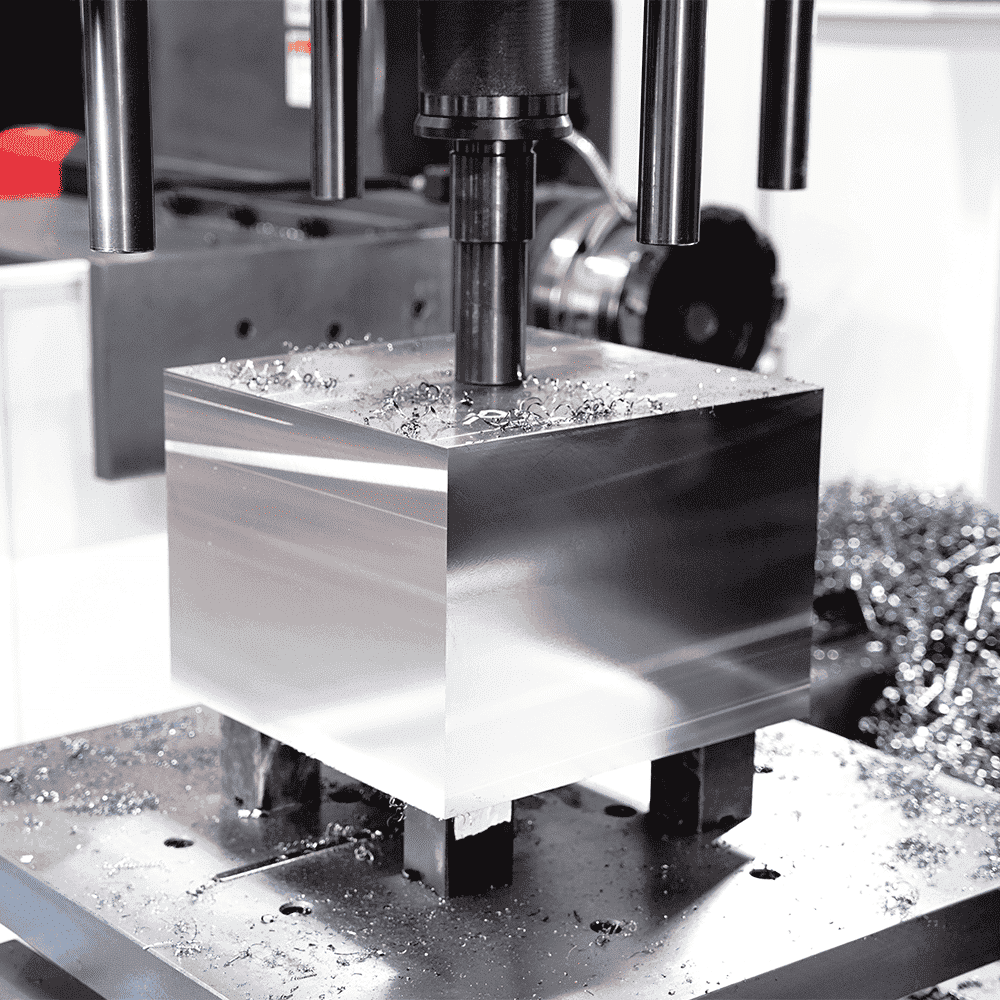

Steel machining

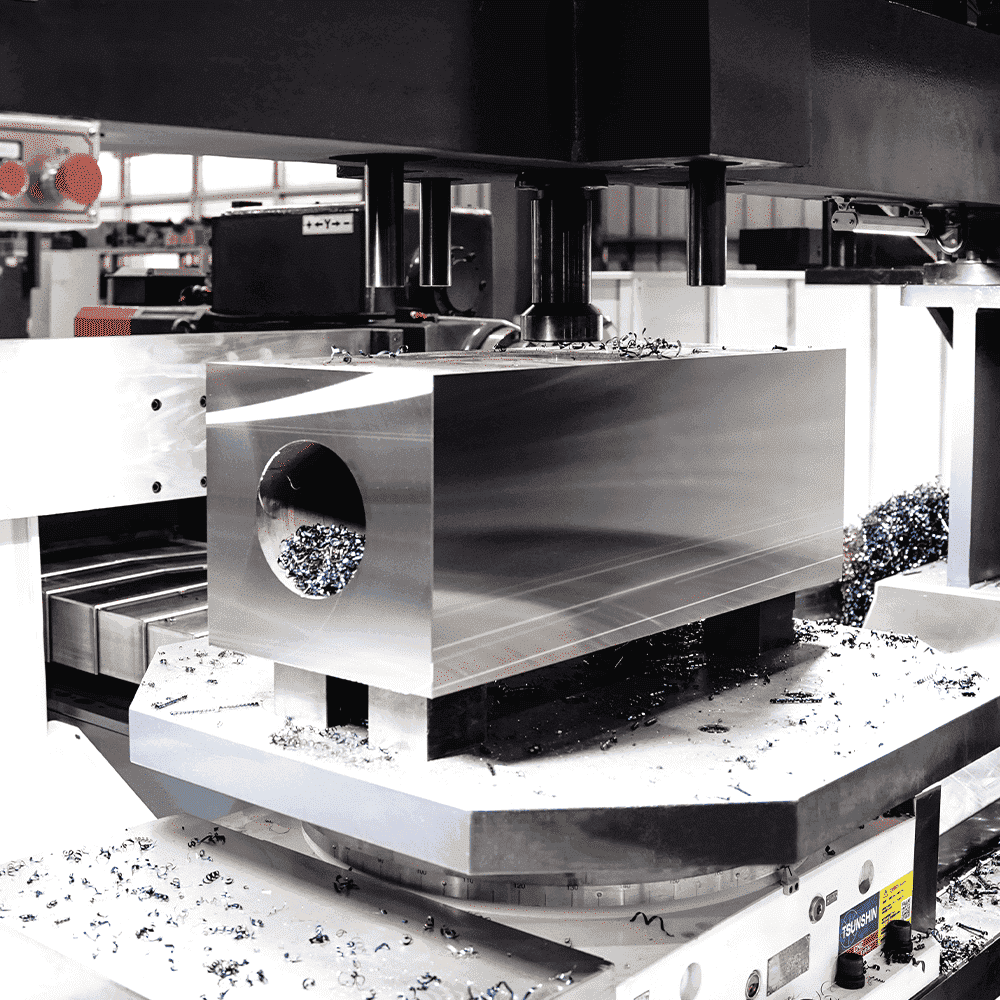

Die sets

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.
