Introduction

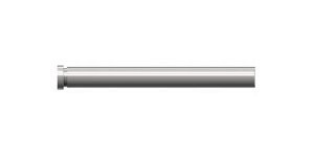

In injection mold structures, the return pin is a small yet critical component. Its primary function is to push the ejector plate or ejector pin system back to the original position after mold opening, preparing for the next injection cycle.
Over time, return pins may suffer from wear, jamming, or spring failure, leading to issues such as incomplete ejection plate reset, abnormal mold closure, or even mold damage.
Understanding failure diagnosis and optimization strategies for return pins is essential to ensure reliable mold operation and long service life.
When a return pin malfunctions, the mold often shows visible signs:
The ejector plate fails to return completely, producing abnormal noise or a striking sound during mold closure.
The product ejection becomes inconsistent, leaving residues in the cavity.
Mold cycle time increases, and the system operates less smoothly.
1. Common Causes of Return Pin Failure
The root causes of return pin failures generally fall into five main categories:
Spring fatigue or insufficient preload, leading to a weak reset force.
Improper fit between the pin and guide hole, with inadequate allowance for thermal expansion.
Poor lubrication causes carbon buildup or corrosion on the sliding surface.
Wear or deformation of the pin or head due to repeated impact.
Unreasonable design, such as pairing a heavy ejector plate with undersized return pins.
In most cases, these failures result from a combination of factors, not just a single issue.
2. Fault Diagnosis Procedure
Observation and Auscultation: During operation, pay attention to whether there is an impact sound when closing the mold, and whether the ejector plate returns to its initial position after mold opening.
Stroke Measurement: Check whether the pin head protrusion length and spring preload distance meet the design values.
Check Fit Tolerances and Guiding: Check whether the clearance between the pin and the guide sleeve is within the design range.
Spring Condition Inspection: Check whether the spring is fatigued, whether the elasticity has decreased, and whether there is any breakage.
Lubrication and Wear Inspection: Check whether there is carbon buildup in the pin slide, severe wear, and whether lubrication is lacking.
3. Optimization and Maintenance Recommendations
To minimize failures and ensure long-term stability, follow these best practices:
Appropriate Specification Selection: Select the appropriate model and spring stiffness based on the ejector plate quality and stroke length.
Tolerance Control: Ensure high precision in the fit between the guide hole and the pin, allowing for thermal expansion clearance to prevent jamming.
Regular Lubrication and Cleaning: Regularly clean carbon deposits and corrosion spots from the slideway and pin surface, and apply grease.
Spring Inspection and Replacement Cycle Setting: It is recommended to establish a spring life record and replace springs regularly based on the number of cycles or production volume.
System Monitoring: During mold production, monitor the number of mold closing impacts. Repair Records and Preventive Maintenance: Establish a maintenance log, recording each return pin replacement, fault condition, and handling measures to aid in rapid future diagnosis.
Upgraded Design: For high-load or high-temperature molds, consider using "multi-pin support" or higher-strength materials and optimizing the spring layout. The document mentions that large molds should use more return pin supports.
Conclusion
Return pins, though small, play a decisive role in ensuring the smooth operation of injection molds.
By understanding their failure mechanisms and implementing systematic maintenance and optimization practices, mold engineers can significantly improve reliability, reduce downtime, and extend mold service life.
